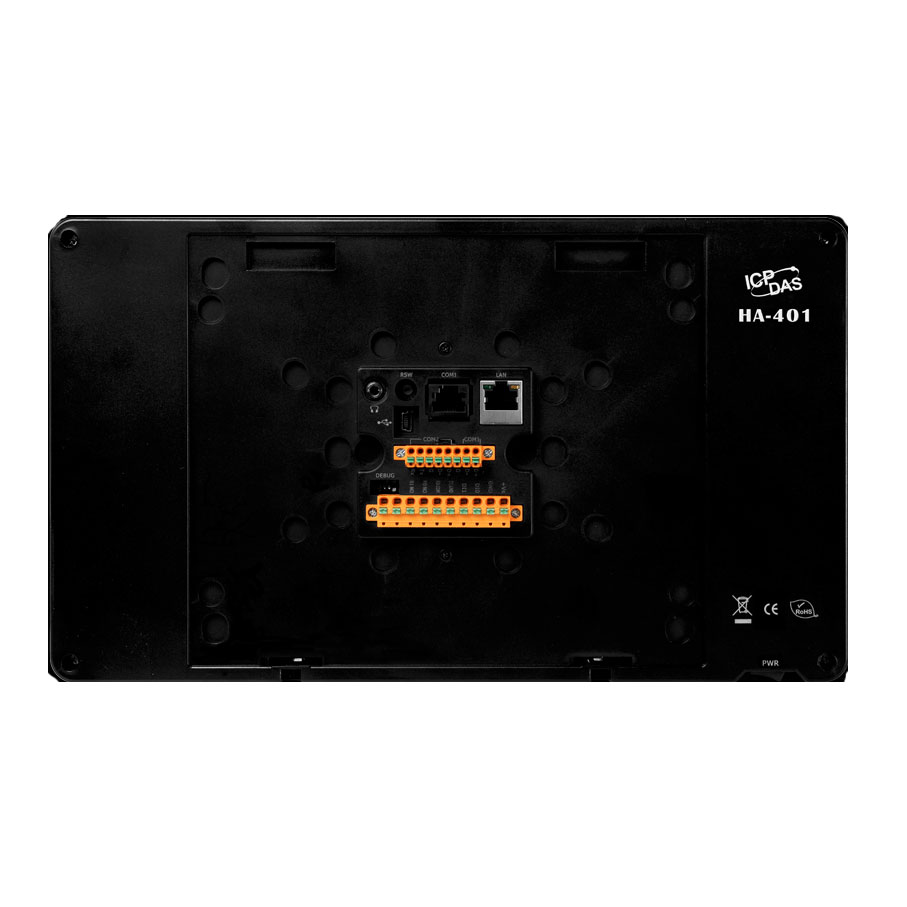

HA-401 is an intercom host that supports security situation control, integrating functions related to message notifications, security alarms, community bulletins, interior environment control, visitor intercom, and push advertising. The HA-401 uses advanced automatic control, database software, computer network communication technology, and building message management, combined with a Smart Home system, to achieve intelligent indoor control.
The HA-401 provides support for a number of standard communication protocols, such as the Modbus RTU/ASCII and Modbus TCP protocols. When used in conjunction with 3rd –party software such as SCADA, or ERP, etc., the HA-401 is able to provide support for a range of smart phones. The phone can then be used to integrate with local or remote software to provide control functions for home lighting, air conditioning, television, electronic curtains, noise, and security alerts, delivering a more stylish and comfortable smart home experience based on science and technology.

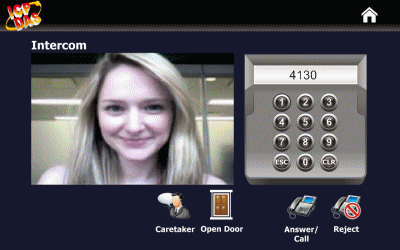

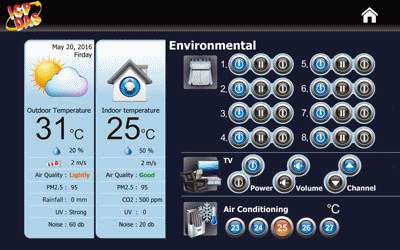

| Video Conversation | Environmental Monitoring |
 |
 |

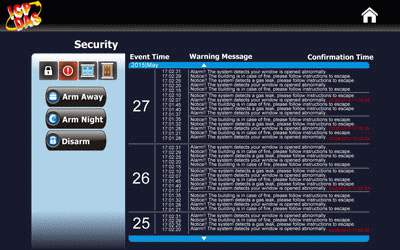

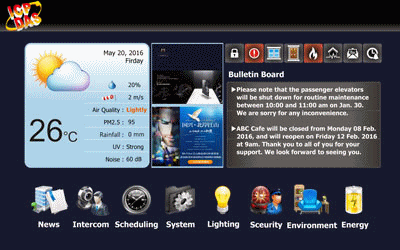

| Security Alarm | Information Notice |
 |
 |
Controller |
CPU |
32-bit, 1000 MHz |
DDR3 SDRAM |
512 MB |
NAND Flash |
4 Gb |
EEPROM |
128 KB; Data Retention: 40 years; 1,000,000 erase/write cycles |
RTC |
Provide second, minute, hour, date, day of week, month, year |
Communication Interface |
|
Ethernet |
RJ-45 x 1, 10/100 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
USB 1.1 |
1 (Client/Mini-USB) |
COM1 |
RS-485 x1 (TB and RJ-11) |
COM2 |
RS-232/485 x1 (TB) |
Digital Input |
|
Channels |
2 |
Input Type |
Dry contact (Source) |
Dry Contact Level |
Off Voltage Level: Open, On Voltage Level: Close to GND |
Relay Output |
|
Channels |
2 |
Output Type |
1 Form A , 1 Form C |
Contact Capacity |
5A @ 250 VAC; 5A @ 30 VDC, 0.6A @ 125 VAC;
2A @ 30 VDC |
Endurance |
Mechanical: 2 x 107 ops.
Electrical: 1 × 105 ops., Mechanical: 1 x 108 ops.
Electrical: 5 × 105 ops. |
HMI |
|
LCD |
10.1" TFT (Resolution 1280 x 800) |
Backlight Life |
±20,000 hours |
Brightness |
350 cd/m2 |
Camera |
1080P (1920 x 1080), CMOS Sensor |
Touch Screen |
5-wire, analog resistive; Light Transmission: 80% |
Audio |
AMP 2.5 W; Digital microphone |
Power Supply |
|
Input Range |
12 V ~ 48 VDC |
Consumption |
4.0W |
Protection |
Reverse Polarity Protection |
Power Switch |
Yes |
Mechanical |
|
Installation |
Wall Mounting (Suitable for the European 86 mm x 86 mm outlet box) |
Dimensions |
311 mm x 36 mm x 181 mm (W x L x H) |
Environmental |
|
Operating Temperature |
-10℃ ~ +60℃ |
Storage Temperature |
-20℃ ~ +70℃ |
Storage Temperature |
10 ~ 90% RH, Non-condensing |
