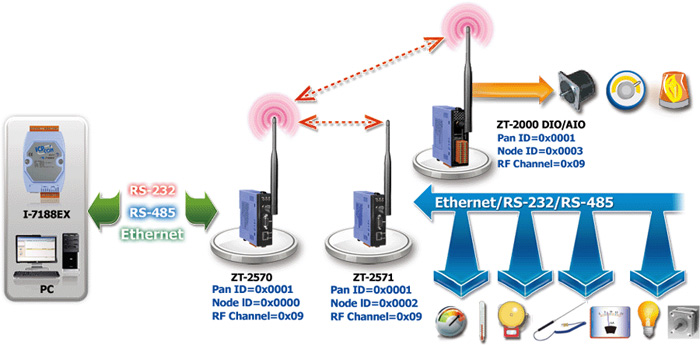

The ZT-2571 ZigBee wireless module is a compact ZigBee slave converter based on the IEEE802.15.4 standard that allows RS-232, RS-485 and Ethernet interface to be converted to a personal area ZigBee wireless network. The communication distance of the ZT-2571 ZigBee slave converter is up to 700 meters, with a ZigBee transmission frequency range between 2.405 GHz and 2.48 GHz, separated into 5 MHz sectors, providing 16 channels and 16384 PAN IDs. This ZigBee Slave Converter also works as a ZigBee wireless router to extend the transmission range and improve the ZigBee wireless signal.
The ICP DAS ZT-2000 ZigBee wireless products provide specification for high level communication protocols using small, low-power digital radios module. The only ZigBee Hose in a ZigBee wireless network is called “ZigBee Coordinator” like ZT-2570. The ZigBee Host is used to initialize and manage the routing while the ZT-2571 acts as a ZigBee slave converter. A ZigBee network can manage 255 ZigBee routers and receive or bypass data from parent or child node.
A Windows compatible GUI configuration utility is available with the ZT-2571 ZigBee Slave Converter. The easy-to-use utility allows users to set different configurations and ZigBee variables such as Pan ID.
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x Net 1 x RxD |
| RF | |
|---|---|
| Channels | 16 |
| Transmission Power | Up to 10 dBm EIRP |
| ZigBee | |
|---|---|
| Antenna | 5 dBi Omni-Directional antenna |
| Max. Slaves | 255 |
| Transmission Distance (LoS) | 300 meters |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (TxD, RxD and GND) 1 x RS-232 (DB9 Male) 1 x RS-485 (DATA+, DATA-; internal ASIC self-tuner) |
| Baud Rate | 1200 ~ 115200 bps |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | Max. 2.5 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 87 x 110 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +80°C |
| Humidity | 5 ~ 95% RH, Non-condensing |
