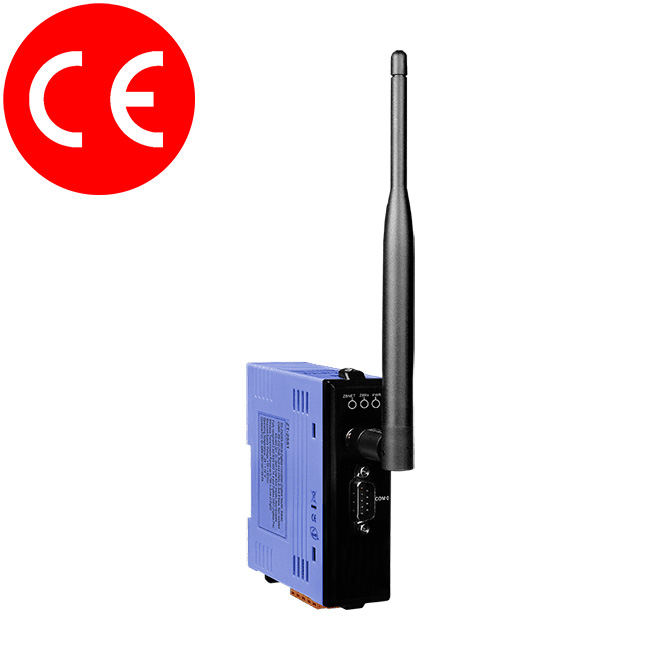

ZT-2551

The ZT-2551 ZigBee wireless module is a compact ZigBee slave converter that allows RS-232 and RS-485 interfaces to be converted to a personal area ZigBee wireless network. The communication distance of this ZigBee slave converter is 700 meters, with a 2.405 GHz ~ 2.48 GHz transmission frequency range, separated into 5 MHz sectors, 16 channels and 16384 PAN IDs. The ZT-2551 ZigBee slave converter also works as a ZigBee router to extend the transmission range and improve the ZigBee wireless signal. The ZigBee slave converter is designed for high level communication protocols using small, low-power digital radio modules. The only host allowed in a ZigBee network is called “ZigBee Coordinator” like ZT-2550. A ZigBee network is able to manage 255 ZigBee routers or ZigBee slave converters like ZT-2551.

A Windows compatible GUI configuration utility is provided with ZT-2551 ZigBee slave converter. The easy-to-use utility allows users to set different configurations and ZigBee variables such as Pan ID.

Features

• ISM 2.4 GHz Operating Frequency
• Fully Compliant with 2.4 G (IEEE802.15.4/ ZigBee Specifications)
• Fully Compliant with ZigBee Pro (ZigBee 2007)
• Wireless Transmission Range up to 700 m (Default)
• Adjustable RF Transmission Output Power
• Supports AES-128 Encryption for the Wireless Communication
• GUI Configuration Software (Windows Version)
• RS-232/RS-485 Interface Supported
• Source Identification for the non-address Device Data Transmission
• Supports Broadcast Transmission for the Redundancy Transmission Path
• Supports Unicast Transmission to Reduce Network Loading
• Supports Topology Utility for Network Monitoring and Improvement
• DIN-Rail Mountable
