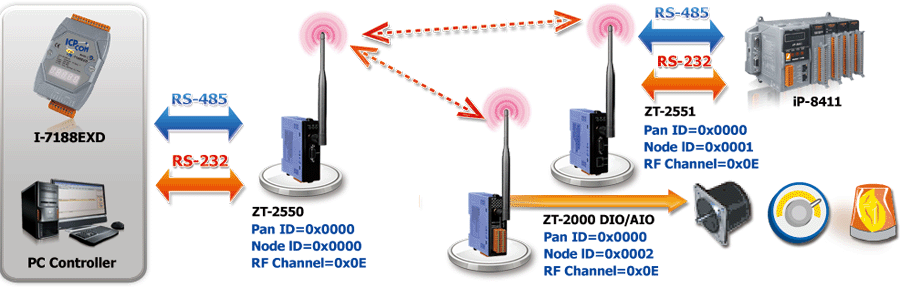

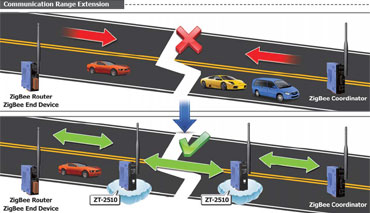

The ZT-2550 ZigBee wireless module is a compact ZigBee host converter based on the IEEE802.15.4 standard that allows RS-232 and RS-485 interfaces to convert to a personal area ZigBee wireless network. The communication distance of ZigBee wireless products is up to 700 meters or 2297 feet, with a transmission frequency range between 2.405 GHz and 2.48 GHz, separated into 5 MHz sectors, providing 16 channels and 16384 PAN IDs. The ZT-2550 ZigBee wireless host converter also works as a ZigBee router to extend the transmission range and improve the ZigBee wireless signal. The ZT-2550 ZigBee wireless products can work with high level communication protocols with small and low-power-consumption digital radio modules, which complies with the ZigBee Alliance. The only ZigBee Host allowed in a ZigBee wireless network is called “ZigBee Coordinator”. The ZT-2550 ZigBee Host Converters are used to initialize and manage the routing of the ZigBee network. A ZigBee wireless network is able to manage 255 ZigBee routers and receive or bypass data from a parent or child node.
A Windows compatible GUI configuration utility is provided with the ZT-2550 ZigBee host converter. The easy-to-use utility allows users to set different configurations and ZigBee variables like Pan ID. The friendly user interface can meet your various ZigBee application needs.
| CPU Module | |
|---|---|
| CPU | 8-bit microprocessor |
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x Net 1 x RxD |
| RF | |
|---|---|
| Channels | 16 |
| Transmission Power | 11 dBm |
| ZigBee | |
|---|---|
| Antenna | 5 dBi Omni-Directional antenna |
| Max. Slaves | 255 |
| Transmission Distance (LoS) | 700 m (Typical) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (TxD, RxD and GND) 1 x RS-232 (DB9 Female) |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 30 x 87 x 110 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
