The ZT-2017C is a wireless 16-bit, 8-channel differential analog input ZigBee module that provides a programmable input range on all analog channels (-20 mA ~ +20 mA, 0 ~ +20 mA or +4 ~ +20 mA) . Each analog channel can be confi gured for an individual range and has a high 200 VDC common voltage protection. The module Supports open wire detection for 4 ~ 20 mA. Users can easily confi gure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches.

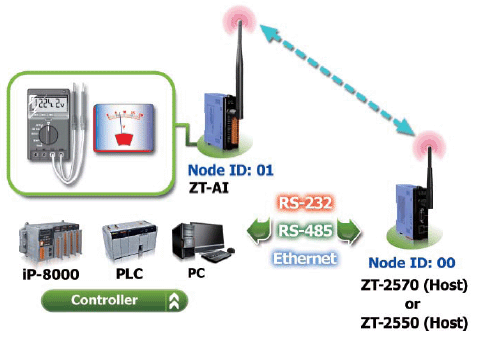

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
| Communication Interface | |
| Wireless Standards | ZigBee 2007 Pro |
| Transmission Power | 11 dBm(FCC Certifi cated) ( Max 19 dBm) |
| 2.4 GHz Antenna | 5 dBi Omni directional |
| Transmission Range (LoS) | 700 m (Typical) |
| Certification | CE/FCC, FCC ID |
| Max. Slaves in a ZigBee Network | 255 |
| ZB-100R/ZB-100T Support | - |
| Protocols | Supports DCON and Modbus RTU Protocols |
| Hot Swap | Rotary and DIP switch |
| LED Indicators | |
| Power | 1 LED, red |
| ZigBee Communication | 1 LED, green |
| Power | |
| Power Consumption | 1.4 W Max. |
| Mechanical | |
| Flammability | Fire Retardant Materials (UL94-V0 Level) |
| Dimensions (W x L x H) | 33 mm x 87 mm x 107 mm |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Relative Humidity | 10 ~ 90% RH, Non-condensing |
| Analog Input | ||
| Input Channels | 8 Differential | |
| Input Types | 20 mA ~ +20 mA, 0 mA ~ +20 mA or +4 mA ~ +20 mA | |
| Resolution | Normal Mode | 16-bit |
| Fast Mode | 12-bit | |
| Sampling Rate | Normal Mode | 16-bit, 10 Samples/Sec. (Total) |
| Fast Mode | 12 bit, 60 Samples/Sec. (Total) | |
| Accuracy | Normal Mode | +/-0.1% of FSR |
| Fast Mode | +/-0.5% of FSR | |
| -3dB Bandwidth | Normal Mode | 15.7 Hz |
| Fast Mode | 78.7 Hz | |
| Zero Drift | +/-20 μV/°C | |
| Span Drift | +/-25 ppm/°C | |
| Common Mode Rejection | 86 dB | |
| Normal Mode Rejection | 100 dB | |
| Input Impedance | 125 Ω | |
| Common Voltage | +/- 200 VDC | |
| Overvoltage Protection | 240 Vrms | |
| Individual Channel Configuration | Yes | |
| Open Wire Detection for 4 ~ 20 mA | Yes | |
| Intra-module Isolation, Field-to-Logic | 3000 VDC | |
| ESD Protection | +/-4 kV contact for each channel | |
