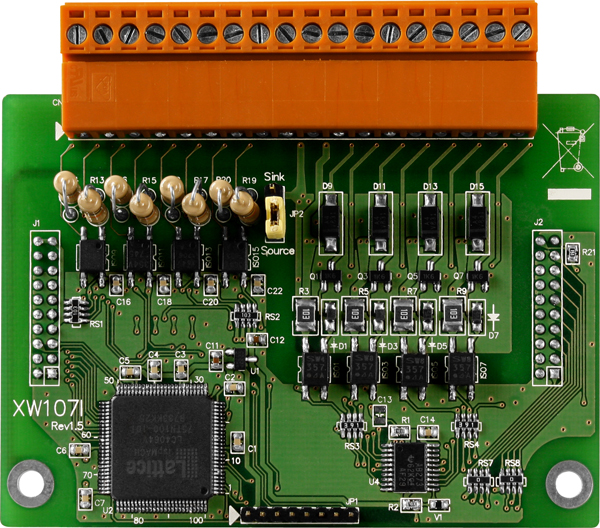

An 8-channel Isolated Digital Input and 8-channel Isolated Digital Output that works great in wet conditions. It has a load voltage +10 VDC ~ 40 VDC. This device works well in harsh environments -25 °C ~ +75 °C (-13°F ~ 167°F)
| Digital Input | ||
| Input Channels | 8 | |
| Contact | Wet | |
| Sink/Source (NPN/PNP) | Sink/Source (Jumper settings) | |
| Wet Contact | On Voltage Level | +10 K Ohm |
| Off Voltage Level | 60 VDC | |
| Dry Contact | On Voltage Level | - |
| Off Voltage Level | - | |
| Input Impedence | 10 K Ohm | |
| Overvoltage Protection | 60 VDC | |
| Intra-module Isolation, Field to Logic | 3750 Vrms | |
| Digital Output | ||
| Channel | 8 | |
| Contact | Open Collector | |
| Sink/Source (NPN/PNP) | Sink | |
| Load Voltage | +10 VDC ~ 40 VDC | |
| Max. Load Current | 200 mA/channel at 25°C (77°C) | |
| Overload Protection | 1.4A | |
| Intra-module Isolation, Field to Logic | 3750 Vrms | |
| Mechanical | ||
| Dimensions (W x L x H) | 66mm x 82 mm x 17mm | |
| Power Requirements | ||
| Input Voltage | +5 VDC from PAC | |
| Consumption | 0.4 W | |
| Environment | ||
| Operating Temperature | -25 °C ~ +75 °C (-13°F ~ 167°F) | |
| Storage Temperature | -30 °C ~ +75 °C (-22°F ~ 167°F) | |
| Humidity | 10 ~ 95% RH, Non-condensing | |
