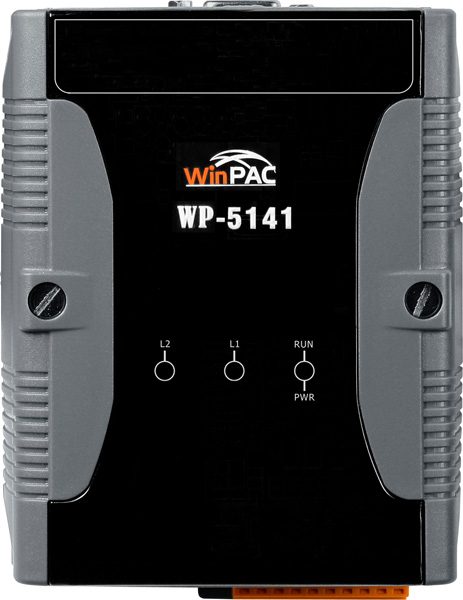

The ICP DAS WinPAC-5000 Series is the new generation PAC (Programmable Automation Controller). It is equipped a PXA270 CPU (520 MHz) running a Windows CE.NET 5.0 operating system, various connectivity (VGA, USB, Ethernet, RS-232/485) and I/O expansion bus.
The WinPAC-5000 series has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE.NET 5.0 gives it the ability to run PC-based control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, SoftPLC …etc. It give users all of the best features of both traditional PLCs and Windows capable PCs.

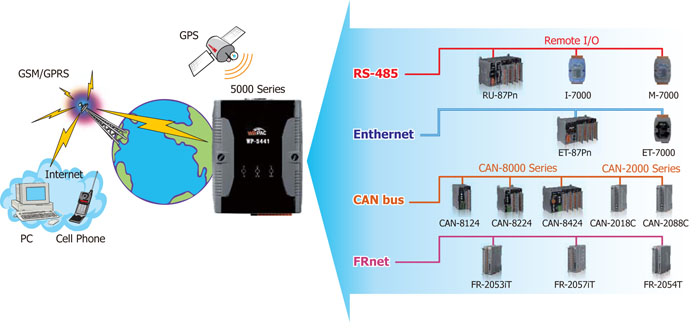

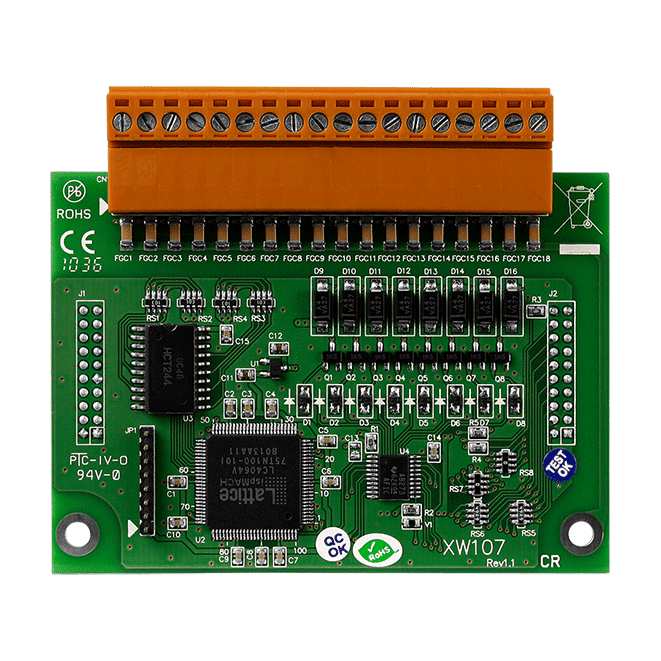

For hardware expansion, it also supports an I/O expansion bus. The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O,A/ D, D/A, Timer/Counter, UART, and other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 10 boards available for WinPAC-5000 series, users can choose one of them to expand hardware features.
| System Software | |
| OS | Windows CE 5.0 |
| .Net Compact Framework | 3.5 |
| Embedded Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK Provided | Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| CPU Module | |
| CPU | PXA270 or compatible (32-bit and 520 MHz) |
| SDRAM | 128 MB |
| Flash | 64 MB (32 MB for OS, 32 MB for System_Disk and System Registry) |
| EEPROM | 16 KB Data Retention: 40 years; 1,000,000 erase/write cycles |
| Expansion Flash Memory | microSD socket with one 2 GB microSD card (support up to 16 GB microSDHC card) |
| RTC (Real Time Clock) | Provide second, minute, hour, date, day of week, month, year |
| 64-bit Hardware Serial Number | Yes |
| Dual Watchdog Timer | Yes |
| LED Indicators | 1 LED for Power and Running, 2 LED for user programmable |
| Rotary Switch | Yes (0 ~ 9) |
| VGA & Communication Ports | |
| VGA | Yes (640 × 480/800 × 600) |
| Ethernet | RJ-45 x 2, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 1.1 (client) | 1 |
| USB 1.1 (host) | 1 |
| Audio Port (Microphone-In and Earphone-Out) |
- |
| COM 1 | RS-232 (RxD, TxD and GND); Non-isolated |
| COM 2 | RS-485 (D2+, D2-); 2500 VDC; isolated |
| COM 3 | RS-232 (RxD, TxD and GND); Non-isolated |
| I/O Expansion Slots | |
| I/O Expansion Bus | Yes, to mount one optional XW-board. |
| Mechanical | |
| Dimensions (W x L x H) | 91 mm x 132 mm x 52 mm |
| Installation | DIN-Rail Mounting |
| Environmental | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Ambient Relative Humidity | 10% ~ 90% RH, non-condensing |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Isolation | 1 kV |
| Consumption | 4.8 W (0.2 A @ 24 VDC) |
