This item has been phased out and replaced by WP-5239-CE7

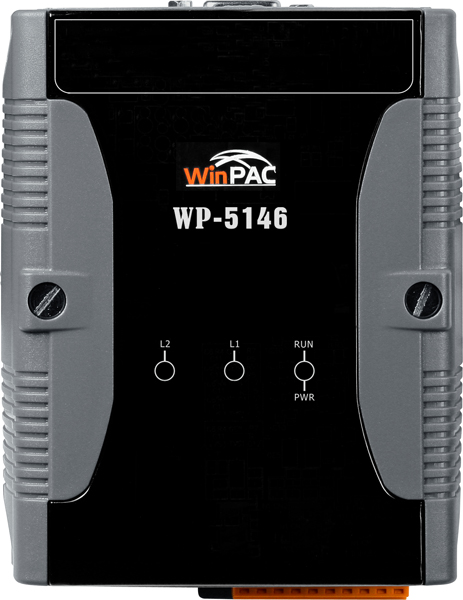

The WinPAC-5146 is a PAC (Programmable Automation Controller) device that features InduSoft's powerful Web Studio and ISaGRAF which includes an integrated collection of e-automation development tools. ISaGRAF is a PLC-like software and supports all five IEC61131-3 languages (LD, ST, FBD, SFC, FC). The WP-5146 model has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper levels, and achievable deterministic control and low cost.
The WP-5146 supports up to one I/O expansion bus, which can be used to implement various I/O functions such as D/I, D/O,A/ D, D/A, Timer/Counter, and UART. Nearly all kinds of I/O functions can be implemented by this bus.
| System Software | |
| OS | Windows CE 5.0 |
| .Net Compact Framework | 3.5 |
| Embedded Services | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK Provided | Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Development Software | |
| Indusoft Software | InduSoft Web Studio v6.1 Service Pack 6 |
| ISaGRAF | ISaGRAF Version 3 : IEC 61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC |
| CPU Module | |
| CPU | PXA270 or compatible (32-bit and 520 MHz) |
| SDRAM | 128 MB |
| Flash | 64 MB (32 MB for OS, 32 MB for System_Disk and System Registry) |
| EEPROM | 16 KB Data Retention: 40 years; 1,000,000 erase/write cycles |
| Expansion Flash Memory | microSD socket with one 2 GB microSD card (support up to 16 GB microSDHC card) |
| RTC (Real Time Clock) | Provide second, minute, hour, date, day of week, month, year |
| 64-bit Hardware Serial Number | Yes |
| Dual Watchdog Timer | Yes |
| LED Indicators | 1 LED for Power and Running, 2 LED for user programmable |
| Rotary Switch | Yes (0 ~ 9) |
| VGA & Communication Ports | |
| VGA | Yes (640 × 480/800 × 600) |
| Ethernet | RJ-45 x 2, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 1.1 (Client) | 1 |
| USB 1.1 (Host) | 1 |
| Audio Port (Microphone-In and Earphone-Out | - |
| COM 1 | RS-232 (RxD, TxD and GND); Non-isolated |
| COM 2 | RS-485 (D2+, D2-); 2500 VDC; isolated |
| COM 3 | RS-232 (RxD, TxD and GND); Non-isolated |
| I/O Expansion Slots | |
| I/O Expansion Bus | Yes, to mount one optional XW-board. |
| Mechanical | |
| Dimensions (W x L x H) | 91 mm x 132 mm x 52 mm |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Storage Temperature | -30°C ~ +80°C (-22°F ~ +176°F) |
| Humidity | 10 ~ 90% RH, Non-condensing |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Isolation | 1 kV |
| Consumption | 4.8 W (0.2 A @ 24 VDC) |
