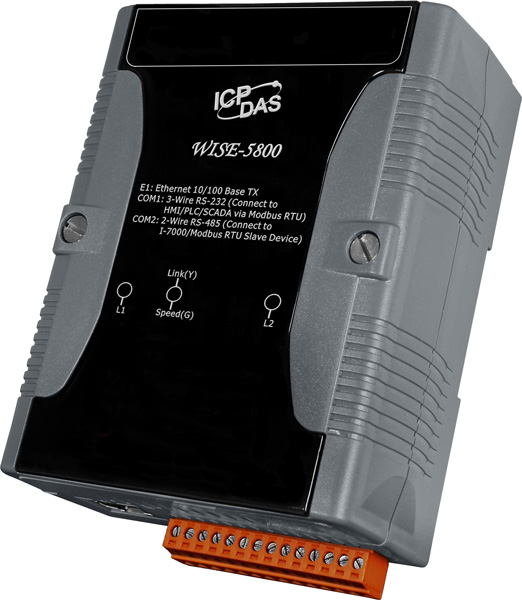

WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.
WISE-5800 supports an I/O expansion bus to implement various I/O functions such as D/I, D/O, A/D and D/A according to the XW-Board. In addition, WISE-5800 also support ICP DAS I-7000 remote I/O modules. Based on the variety I/O module of I-7000, WISE-5800 can provide user more flexibility in application field.
WISE-5800 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It include all advantages which WISE series controllers can provide. In addition, WISE-5800 provide data logger function with microSD card, it can record I/O channel value by event trigger or regular time period. The data files can be sent back by Email or FTP. All setting can be completed through browser.
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.
| CPU Module | |
| CPU | 16-bit CPU |
| SRAM | 768 KB |
| Flash | 512 KB |
| EEPROM | 16 KB |
| NVRAM | 31 Bytes |
| microSD Expansion | Support 1/2/4 GB microSD |
| RTC (Real Time Clock) | RTC Provide seconds, minutes, hours, date of week/month; month and year |
| Watchdog Timers | Yes (0.8 second) |
| Communication Ports | |
| Ethernet | RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM 1 | RS-232 (Reserved, Unsupported by WISE firmware) |
| COM 2 | RS-485 (D2+, D2-), self-tuner ASIC inside, non-isolated, Speed : 115200 bps max. |
| LED Indicators | |
| System LED | Yes (Red) |
| Ethernet Link LED | Yes (Green : Ethernet link detected, Flashing Green : Ethernet packet received) |
| LED Display | - |
| Hardware Expansion | |
| I/O Expansion Bus | Yes |
| Mechanical | |
| Dimensions (W x H x D) | 91 mm x 123 mm x 52 mm |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Ambient Relative Humidity | 5 ~ 90% RH (non-condensing) |
| Power | |
| Protection | Power reverse polarity protection |
| Frame Ground | Yes (for ESD Protection) |
| Input Range | +12 ~ +48 VDC |
| Redundant Power Input | Yes |
| Power Consumption | 2.0 W |
| Functions | |
| Rule Configuration Website | Access Web server on WISE controllers to edit and upload logic rules through web browser. |
| 36 IF-THEN-ELSE Logic Rules | 3 IF conditions with AND or OR operators 3 THEN actions and 3 ELSE actions |
| 48 Internal Registers | Hold temporary variables and read/write data via Modbus/TCP address. |
| 12 Timers | Delay / Timing functions. |
| 12 Schedules | Setup prescheduled routine tasks. |
| 12 Emails | Send Email messages to pre-set Email receivers. |
| 12 CGI Commands | Send pre-set CGI commands. |
| 12 Recipes | Set up THEN/ELSE action groups. |
| Data Logger | Set up the Data Logger configuration, include the data record format, and data file sending operation. |
| Modbus/TCP Protocol | Real time control and monitoring I/O channels and system status of controllers via SCADA software. |
| IF Conditions | |
| DI Channel | ON、OFF、ON to OFF、OFF to ON、Change |
| AI Channel | =、>、<、>=、<=(value) |
| Internal Register | |
| DI Counter | =、>、<、>=、<=(value)、Change |
| Timer | Timeout、Not Timeout |
| Schedule | In Range、Out of Range |
| Rule Status | Enable、Disable |
| THEN / ELSE Actions | |
| DO Channel | ON、OFF、Pulse Output (Just for XW-Board) |
| AO Channel | Change the value |
| Internal Register | |
| DI Counter | Reset |
| Timer | Start、Reset |
| Schedule | Enable、Disable |
| Send | |
| CGI Commands | |
| Recipe | Execute |
| Data Logger | Start、Stop、One-Time Log |
| Rule Status | Enable、Disable |
