Wireless Overhead Crane Monitoring for Bicycle Paint Production Lines
Introduction

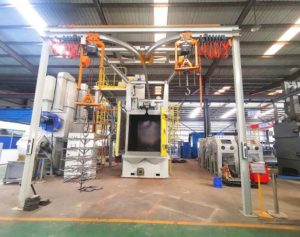

The customer is a manufacturer of rail-mounted overhead cranes used in bicycle painting production lines. These custom monorail cranes carry bicycle frames through the painting process for spray coating.
To improve workplace safety and reduce installation time, the customer wanted a wireless control solution. Eliminating communication cabling helps simplify deployment and avoids challenges associated with operating equipment in environments where sandblasting can generate abrasive dust and debris.
Challenges with the Existing ZigBee Solution
The customer previously used ZigBee wireless technology in the production facility. However, communication delays and interruptions occurred whenever the overhead crane was operating, preventing the crane from stopping accurately at the intended position.
The issue was traced to interference between the crane motors and the ZigBee devices, which operate on the commonly used 2.4 GHz frequency band.
Solution
This case study demonstrates how ICP DAS USA’s RFU-433 wireless control solution provides reliable communication for overhead crane operations in bicycle painting production lines. By using RF technology designed for industrial environments, the system enables stable remote crane control without signal interruptions, resulting in improved positioning accuracy and operational reliability.
ICP DAS USA’s Wireless Control Solution for Overhead Cranes
The solution consists of two components: the ground-side control system and the overhead crane system.

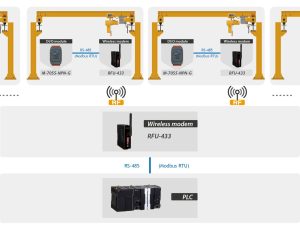

On the ground side, a PLC sends control commands to an RFU-433 wireless modem via RS-485 (Modbus RTU) communication. The RFU-433 then transmits the data over the 433 MHz ISM (Industrial, Scientific, and Medical) frequency band to a second RFU-433 modem installed on the overhead crane.
The receiving modem forwards the commands to an M-7055-NPN-G eight-channel isolated DI/DO module, which controls crane movement and operation. This wireless architecture eliminates the need for communication cabling while providing reliable control and communication between the PLC and the crane.
Reliable Wireless Control with RFU-433 and M-7055-NPN-G
The M-7055-NPN-G isolated DI/DO module supports up to eight digital input/output channels and can monitor signals from multiple devices. Each digital output channel supports loads up to 700 mA and includes configurable power-on and safe-state settings for enhanced system reliability. In this application, the module is installed on the overhead crane to control crane operation.
The RFU-433 wireless modem converts RS-232/RS-485 communications to the 433 MHz ISM frequency band, enabling reliable long-range wireless data transmission. Under line-of-sight conditions, it supports communication distances of up to 1,000 meters at 9,600 bps.
For demanding industrial environments, the RFU-433 allows users to reduce the wireless baud rate to as low as 650 bps, improving noise immunity and resistance to interference. It also provides 16 selectable wireless channels and 8 group IDs, helping prevent interference between neighboring wireless networks.
In this solution, an RFU-433 modem on the ground receives control commands from a PLC and wirelessly transmits them to an RFU-433 modem mounted on the overhead crane. The crane-side modem then communicates with the M-7055-NPN-G module via RS-485 (Modbus RTU), enabling reliable control of crane operations.
Key Benefits
ICP DAS USA Wireless Communication Solutions
Industrial applications often require different wireless technologies depending on range, bandwidth, power consumption, and environmental conditions. ICP DAS USA offers a broad portfolio of wireless communication products that connect industrial serial and Ethernet devices through technologies such as 3G/4G/5G, Wi-Fi, LoRa, NB-IoT, ZigBee, and RF wireless communications.
These solutions simplify connectivity across large facilities and remote locations where traditional wiring may be impractical or expensive.
ZigBee Solutions
ZigBee is a low-power wireless technology based on the IEEE 802.15.4 standard. It is ideal for industrial automation, environmental monitoring, smart buildings, and distributed control applications that require reliable communication over distances ranging from approximately 10 to 700 meters.

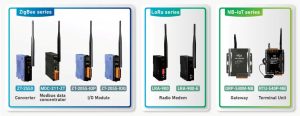

ICP DAS USA offers a complete range of ZigBee products, including:
These products are widely used in industrial control, environmental monitoring, smart buildings, parking management, and smart agriculture applications.
For example, ZigBee wireless modules have been successfully deployed in smart aquaculture systems, enabling remote monitoring of fish ponds located far from control centers. The solution improves operational efficiency, reduces costs, and supports digital transformation initiatives.
ICP DAS USA also provides specialized ZigBee communication modules, including:
LoRa Solutions
LoRa is a low-power, long-range wireless technology designed for industrial and IoT applications.
The LRA-900 LoRa wireless data converter enables Modbus RTU devices to communicate wirelessly over distances of up to 1.5 km in line-of-sight environments. Users can adjust communication speeds to improve noise immunity and optimize performance for challenging industrial conditions.
Key features include:
LoRa solutions are well suited for remote monitoring, smart infrastructure, industrial automation, and mobile robotic applications.
NB-IoT Solutions
NB-IoT (Narrowband Internet of Things) is a low-power wide-area networking technology designed for devices that transmit small amounts of data over long periods.
Key advantages include:
NB-IoT is commonly used for:
By offering multiple wireless communication technologies, ICP DAS USA helps organizations select the most effective solution for their specific industrial automation, monitoring, and IoT requirements.
Conclusion
The customer implemented ICP DAS USA’s wireless monitoring solution to control and monitor overhead cranes in a bicycle painting production line. By utilizing the 433 MHz wireless frequency band, the system eliminates the need for communication cabling while avoiding the signal interference issues experienced with previous wireless technologies.
The solution enables reliable remote control of the production line and helps improve worker safety by reducing personnel exposure to potentially hazardous environments during sandblasting operations.
To support ongoing digital transformation initiatives, ICP DAS USA offers a wide range of wireless communication solutions designed for diverse industrial applications. These technologies help manufacturers overcome complex wiring challenges, accelerate digitalization, and build scalable Industrial IoT (IIoT) systems.
