WF-2051

$529.00

Wi-Fi I/O Module with 16-channel isolated digital input with 32-bit counters. Comes with iOS App for use with iOS mobile devices. Supports Communication Distance up to 50 meters (164 feet) (LOS). Supports Operating Temperatures of -25°C ~ +75°C (-13°F ~ 167°F). Support 802.11N

Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options

QTY

Add to Quote

Buy With One Click

Share On:
Categories:	Wi-Fi Modbus TCP Data Acquisition \| Wi-Fi Data Acquisition \| Industrial Wi-Fi Data Acquisition Modules
Review:	Write your review
Resources:	Data Sheet User Manual Quick Start Guide Firmware Software Pin Assignment Wire Connection Free EZ Data Logger Software

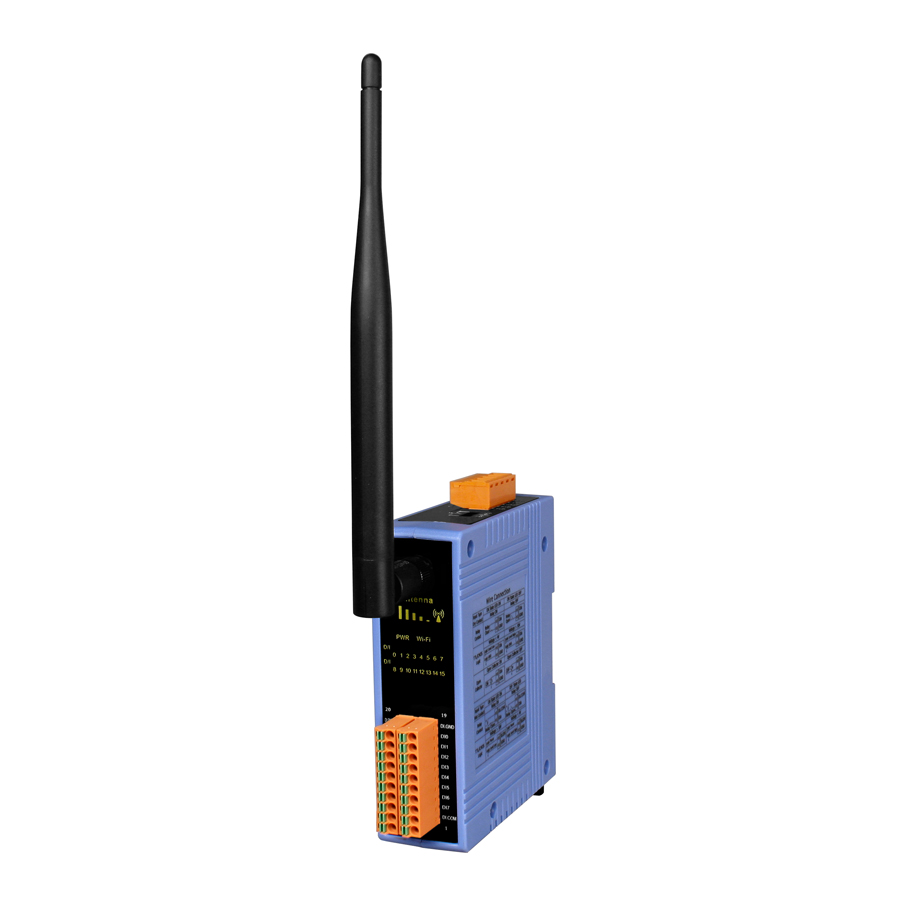

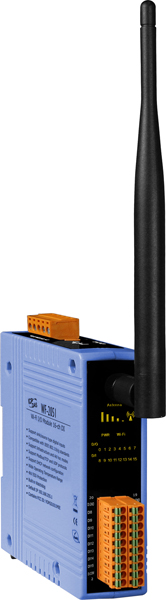

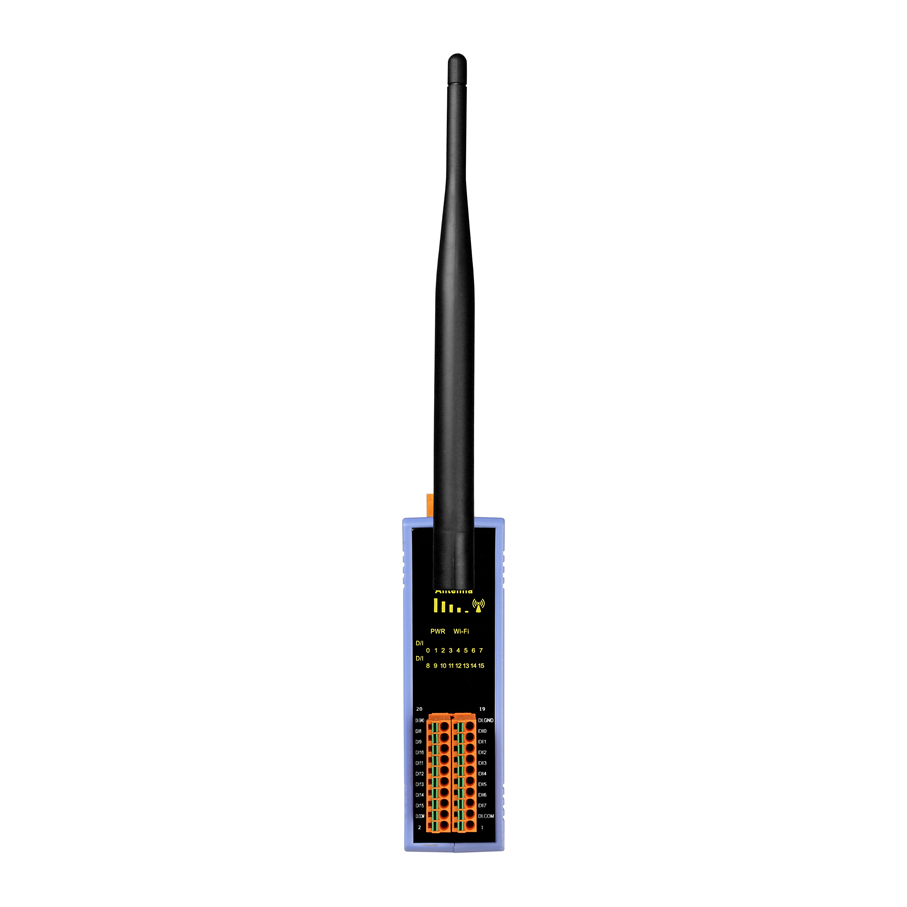

The WF-2051 is a 16-channel isolated digital input with 32-bit counters module and it is one of the members of the WF-2000 wireless product family. In addition, the WF-2051 has WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2051 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2051 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

Support sink / source type digital inputs
Compatible with IEEE 802.11b/g standards
Support infrastructure and ad hoc modes for wireless networks
Support WEP, WPA and WPA2 wireless encryption
Support Modbus TCP and UDP protocols
Support DHCP network configuration
Built-in Watchdog
Wide Operating Temperature Range
4 kV ESD Protection

Multi-platform Remote Access

Real-time data from WF-2042 I/O module can be accessed from anywhere at any time using the WF-2000 Utility and iOS App.

Utility

iOS App

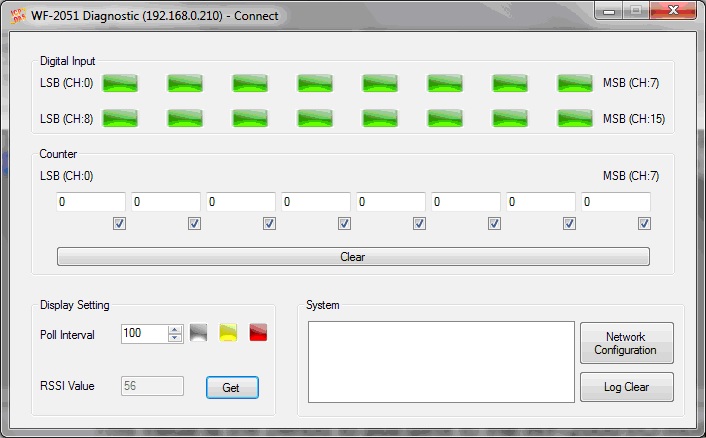

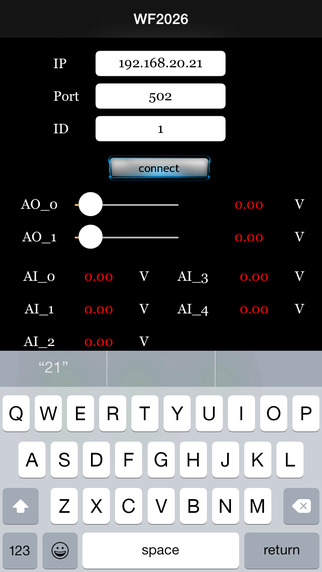

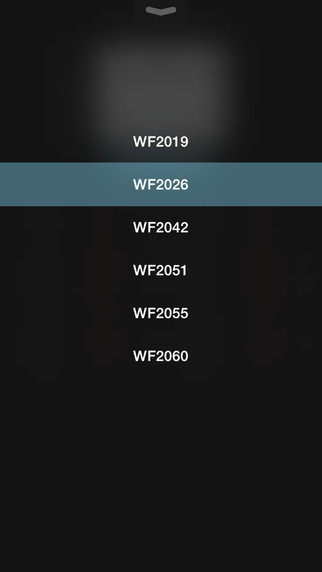

WF2000 Utility is a fast and simple utility for testing and controlling ICP DAS WF-2000 industrial wireless products. It is now available on the Apple Store for free download for use with iOS devices.

Download the App in Apple Store

Download in iTunes
In App Store, search keyword: WF2000
Compatibility: Requires iOS 8.1 or later. Compatible with iPhone, iPad, and iPod touch.

Specifications

Digital Input
Channels		16
Input Type		Dry Contact: Source, Wet Contact: Sink / Source
Dry Contact Level		Off Voltage Level: Open	On Voltage Level: Close to GND
Wet Contact Level		Off Voltage Level: +4V max.	On Voltage Level: +10 V ~ +50 V
Counters	Channels	8
	Max. Counts	32-bit (4294967295)
	Max. Input Frequency	8K Hz
Photo-Isolation		3750 VDC
Wi-Fi Interface
Antenna		5 dBi (Omni-Directional)
Output Power		8 dBm @ 11Mbps
Receive Sensitivity		-83 dBm @ 11Mbps
Standard Supported		IEEE 802.11b/g
Wireless Mode		Infrastructure & Ad-hoc
Wireless Security		WEP, WPA and WPA2
Certifications		CE/FCC, FCC ID
Encryption		WEP, WPA and WPA2
Transmission Range		50 meters (LOS)
Power
Input Voltage Range		10V ~ 30V
Power Consumption		1.2W
Mechanism
Installation		DIN-Rail
Dimensions		33mm x 106mm x 120mm (W x L x H)
Environment
Operating Temperature		-25°C ~ +75°C
Storage Temperature		-30°C ~ +80°C
Humidity		10% ~ 90%
