VPD-133-H

$0.00

The VPD-133-H has officially been phased out and will no longer be available. the suggested replacement is VPD-133-H2

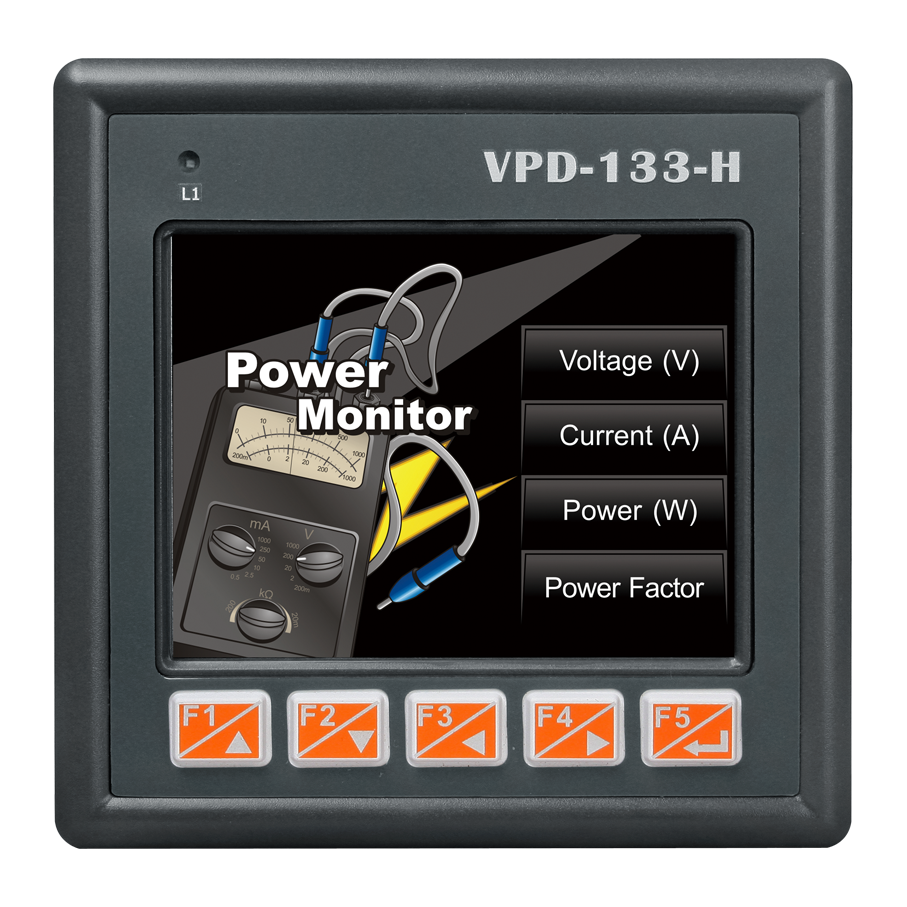

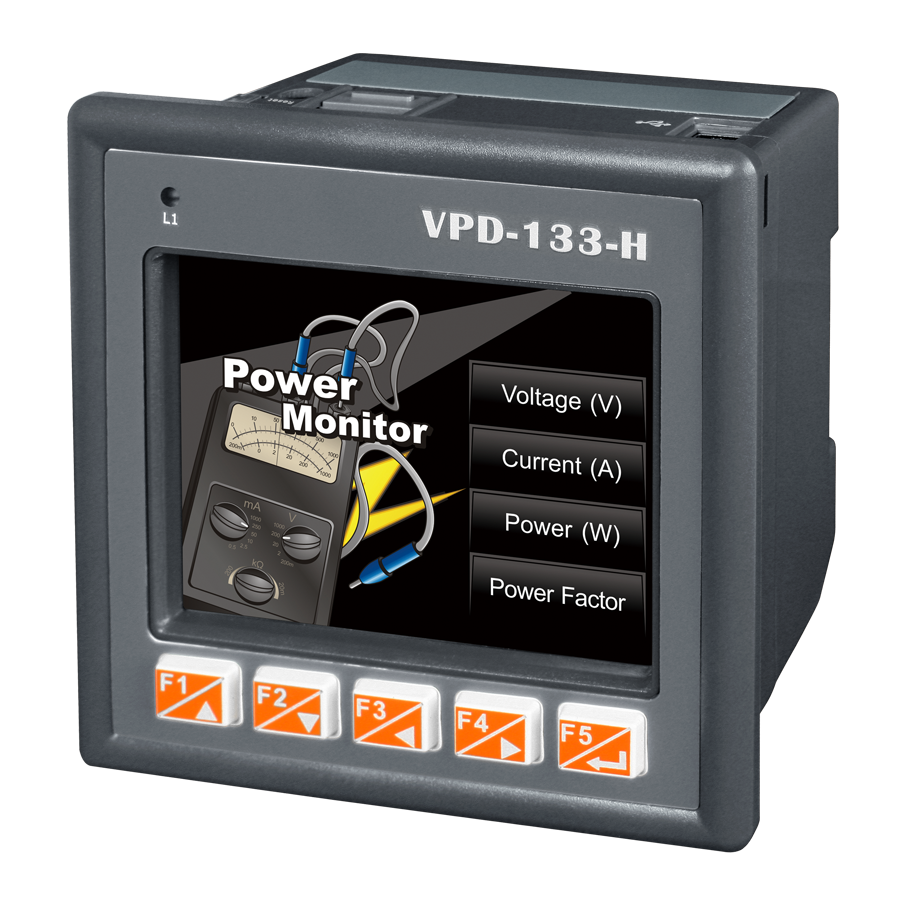

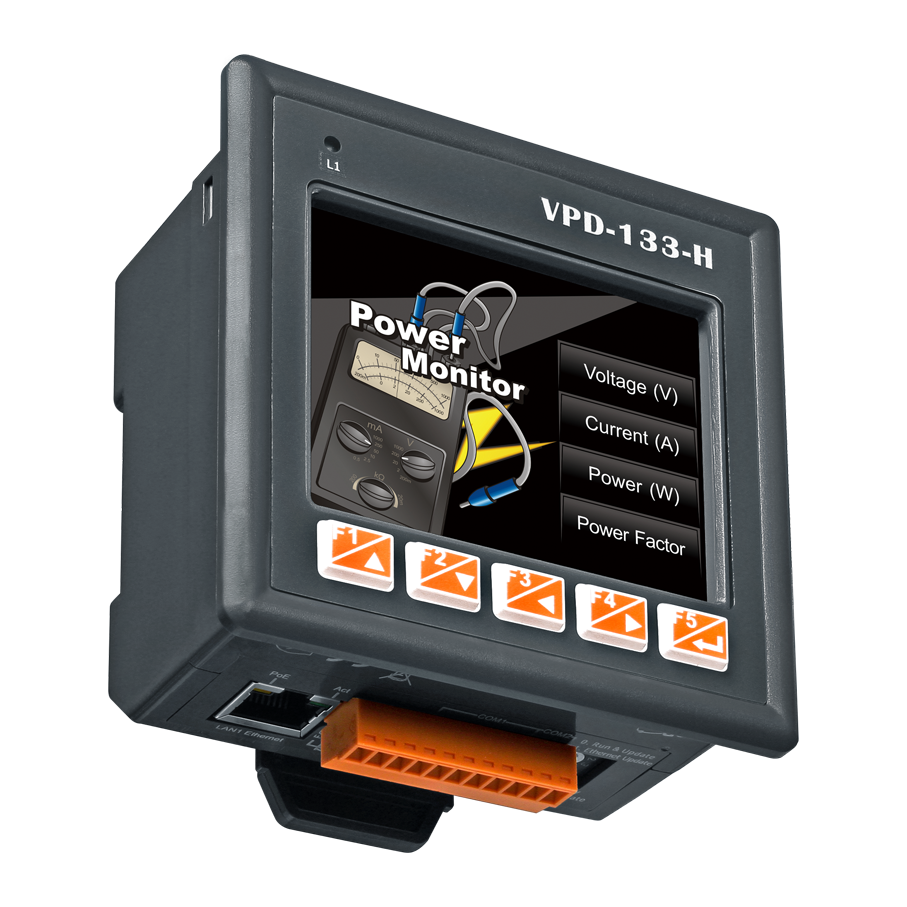

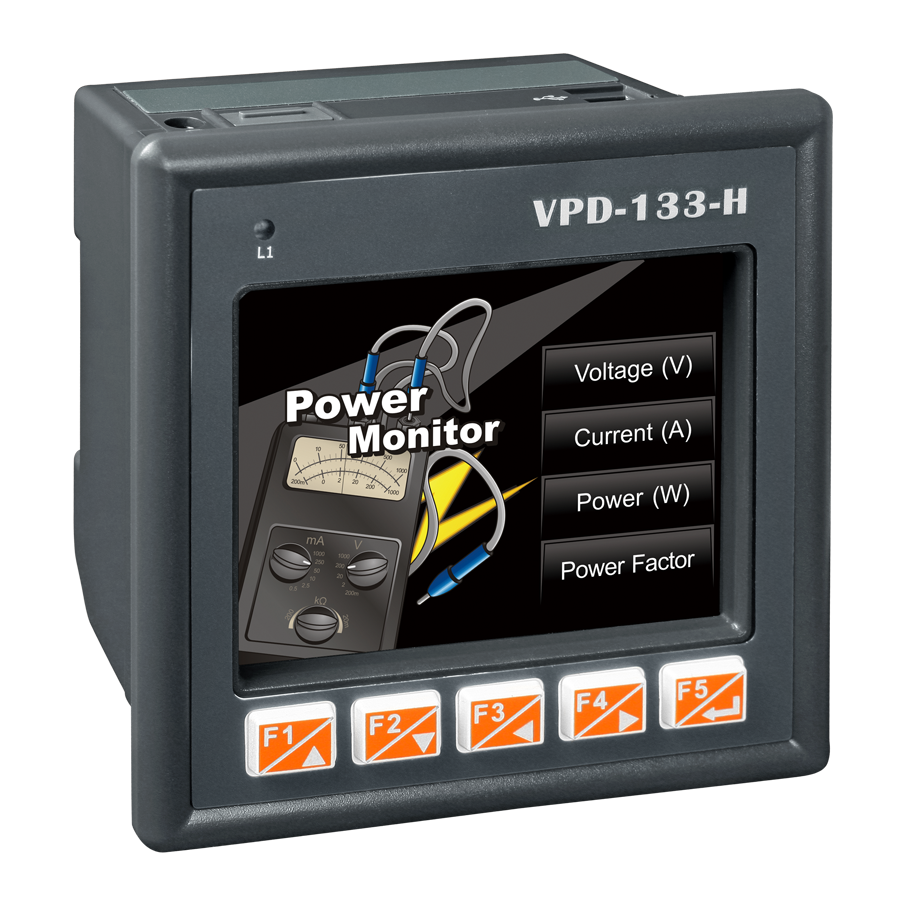

3.5" Touch HMI device with Ethernet, RS-232/RS-485 x 2, USB, RTC, Rubber Keypad and support XV-board (RoHS)

Product Unavailable

Share On:
Categories:	TouchPad Touch Screen Controllers \| TouchPad Controller
Review:	Write your review
Resources:	Data Sheet Quick Start

The VPD-133-H has officially been phased out and will no longer be available. the suggested replacement is VPD-133-H2

3.5" Touch HMI device with Ethernet, RS-232/RS-485 x 2, USB, RTC, Rubber Keypad and support XV-board (RoHS)

VPD industrial touch HMI device series features a 3.5" high resolution color touch screen LCD to easily control all automation system; making them more intuitive and efficient. THE VPD-133-H has built-in communication ports, such as: RS-232/RS-485, and Ethernet, USB interface, enabling integration into the system allowing users to control, monitor I/O at the remote sides and update firmware directly from the central computer. The VPD-133-H is equipped with non-volatile storage, making the VPD series more reliable for rugged environments.

Excellent C/P ratio (cost/performance)
High-resolution color touch screen
RTC (Real Time Clock)
Serial communication interfaces
Supports Ethernet (VPD-133-H/133N-H)
Rubber Keypad (VPD-130-H/132-H/133-H)
GUI design
Free HMIWorks development tool
Supports C language and Lader Designer
Supports user-defined third party protocol (C language)
ESD Protection: 4 kV
Front Panel: IP65 Waterproof
I/O Expansion Boards: XV-Boards
Operating temperature: -20 ~ 50°C

Specifications

CPU Module

CPU

32-bit RISC CPU

Memory Expansion

16 MB SDRAM/16 MB Flash

Real Time Clock (RTC)

Yes

Buzzer

Yes

Rotary Switch (0~9)

Yes

Communication Interface

COM1

RS-485 (including Self-Tuner) +RS-232 (3-pin)

COM2

RS-485 (including Self-Tuner)

USB 1.1 Client

Firmware updates only

Ethernet

RJ-45 x 1, 10/100 Base-TX

I/O Expansion

I/O Expansion Bus

Yes, XV-board

MMI (Main Machine Interface)

LCD

3.5 TFT (Resolution 240 x 320 x 16), defective pixels <= 3

Backlight Life

20,000 hours

Brightness

270 cd/m2

LED Indicator

yes

Touch Panel

Yes

Reset Button

Yes

Rubber Keypad

5 keys (Programmable)

Electrical

Powered from Terminal Block

+12 ~ 48 VDC

Powered from PoE

IEEE 802.3af, Class1 (48 V)

Power Consumption

2 W

Mechanical

Dimensions (W x L x H)

103 mm x103 mm x 53 mm

Ingress Protection

Front Panel: IP65

Installation

DIN-Rail Mounting and Panel Mounting

Environmental

Operating Temperature

-20 ~ +50°C

Storage Temperature

-30 ~ +80 °C

Ambient Relative Humidity

10 ~ 90% RH, non-condensing
