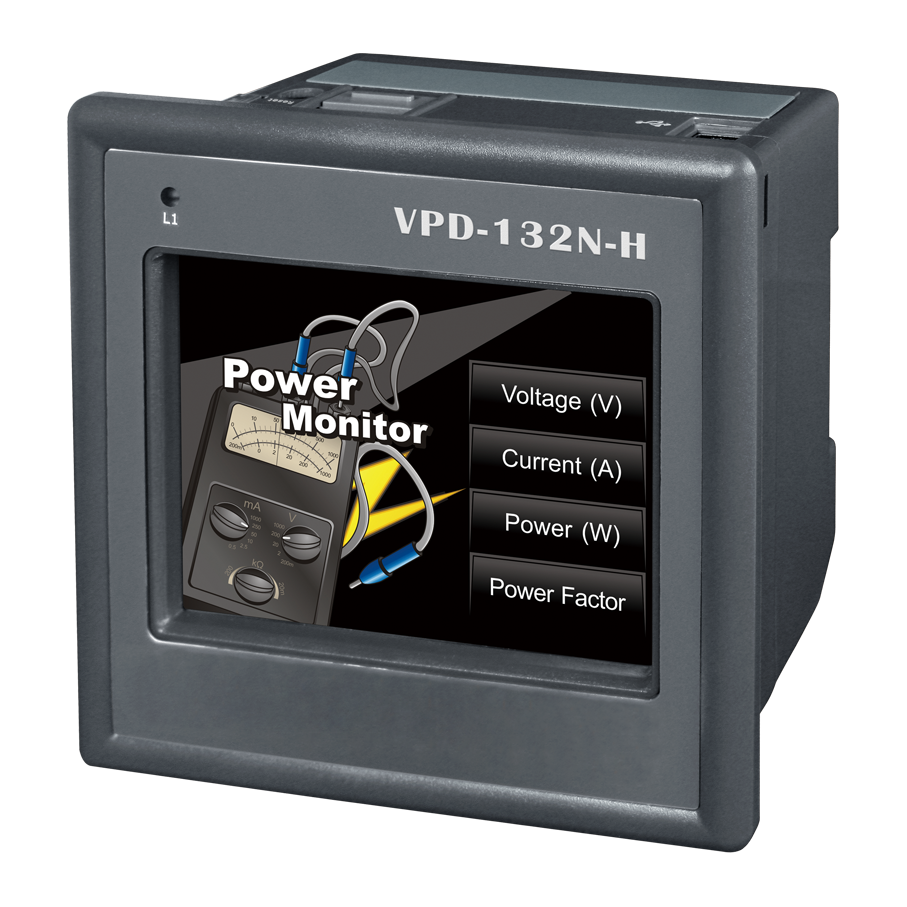

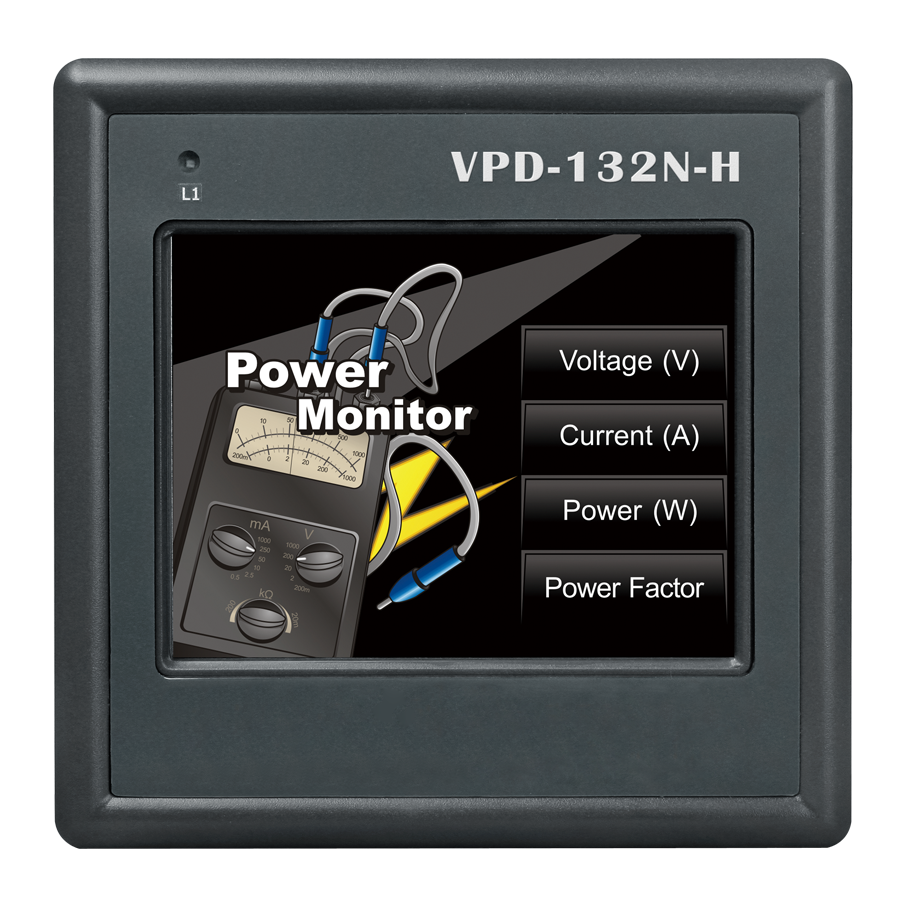

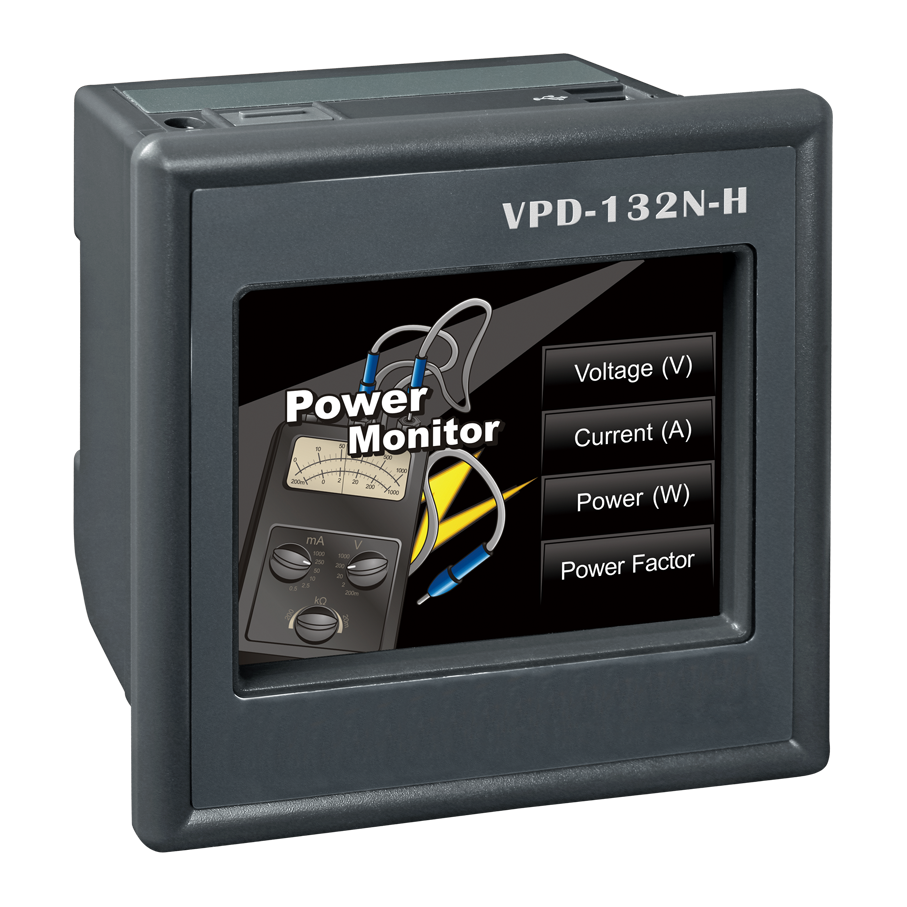

ICP DAS USA’s TouchPad VPD H series is an industrial touch HMI device, designed with a 3.5" high resolution color touch screen LCD. The VPD H series is equipped with built- in RS-232/RS-485 communication ports allowing users to control, monitor I/O at the remote sides. The HMI device is also designed with built-in non-volatile storage makes VPD series more reliable for rugged environments.
HMIWorks is development software for the VPD series. The software is user-friendly and yet, has powerful and intuitive programming with graphic capabilities; allowing used to create appealing graphical interface screens in minutes. For PLC users, HMIWorks provides Ladder Designer and C language environment for IT users. Users are able to create an application program when using Ladder Designer in less than 30 minutes.
CPU Module
CPU
32-bit RISC CPU
Memory Expansion
16 MB SDRAM/16 MB Flash
Real Time Clock (RTC)
Yes
Buzzer
Yes
Rotary Switch (0~9)
Yes
Communication Interface

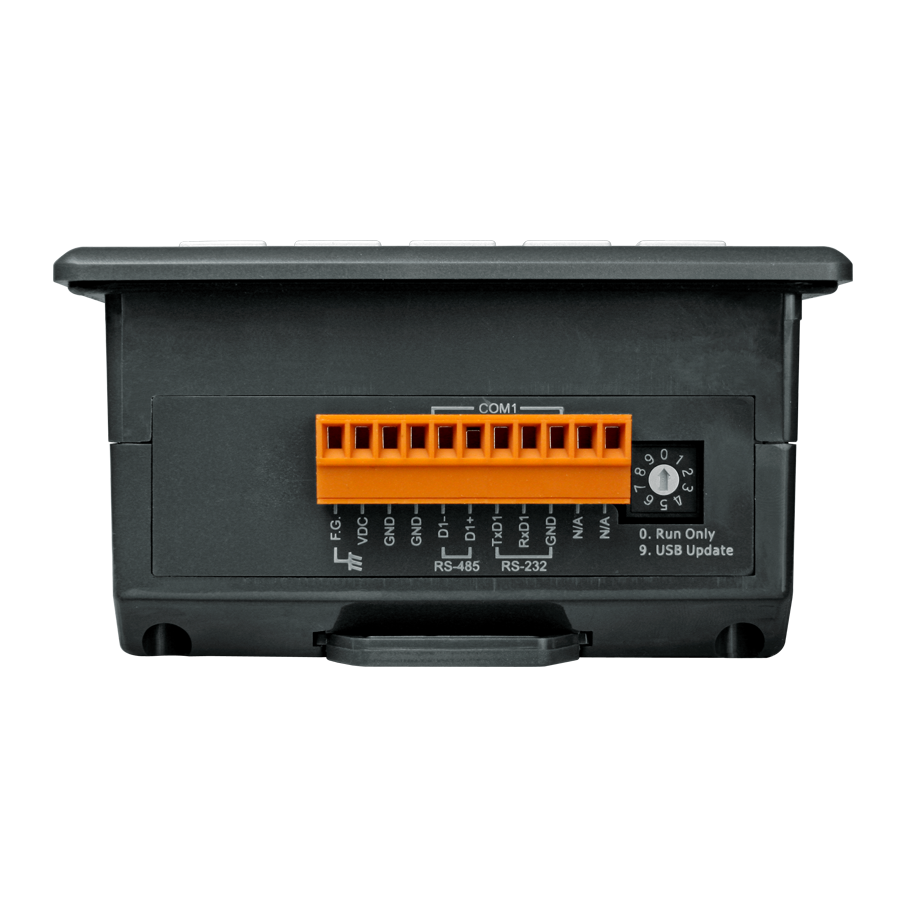

COM1
RS-485 (including Self-Tuner) +RS-232 (3-pin)
COM2
RS-485 (including Self-Tuner)
USB 1.1 Client
Firmware updates only
Ethernet
-
I/O Expansion
I/O Expansion Bus
Yes, XV-board
MMI (Main Machine Interface)
LCD
3.5 TFT (Resolution 240 x 320 x 16), defective pixels <= 3
Backlight Life
20,000 hours
Brightness
270 cd/m2
LED Indicator
-
Touch Panel
Yes
Reset Button
Yes
Rubber Keypad
-
Electrical
Powered from Terminal Block
+12 ~ 48 VDC
Powered from PoE
-
Power Consumption
2 W
Mechanical
Dimensions (W x L x H)
103 mm x103 mm x 53 mm
Ingress Protection
Front Panel: IP65
Installation
DIN-Rail Mounting and Panel Mounting
Environmental
Operating Temperature
-20 ~ +50°C
Storage Temperature
-30 ~ +80°C
Ambient Relative Humidity
10 ~ 90% RH, non-condensing
