VP-4136

ViewPAC-25W6/ViewPAC-4136 is the new generation WinCE based PAC from ICP DAS. ViewPAC combines WinPAC, graphic display and keypad in one unit. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 operating system, variant connectivities (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 3.5”/5.7”/10.4” TFT LCD and a rubber keypad.

Its operating system, Windows CE.NET 5.0, has many advantages, includes hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. The VP-25W6 also features with the powerful InduSoft Web Studio and ISaGRAF. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) systems. ISaGRAF is a PLC-like software and supports all five IEC61131-3 languages (LD, ST, FBD, SFC, FC).

Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.

Software Features

VP-25W6/VP-4136 Software Features

• Windows CE.NET 5.0
• Remote Maintenance via FTP Server and VCEP software
• Rich Software Solutions (VS.NET 2003/2005/2008 and eVC)
• Runtime InduSoft and ISaGRAF is ready
• Built-in OPC Server (Quicker)

VP-25W6/VP-4136 Software Features

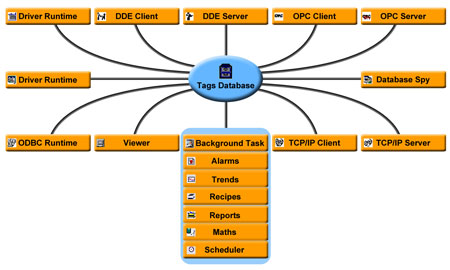

IWS applications run on microcomputers connected in real-time to machines or processors through WinPAC programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system.

• Intuitive script language with more than 100 standard functions is provided.
• Conform to industry standards such as Microsoft.NET, OPC, DDE, ODBC, XML.
• Full-Featured WinCE-based run-time environment (CE View).
• Dynamic library of symbols - customizable.
• ActiveX container (Windows NT/2000/XP/CE/7/8).
• Automatic e-mail (SMTP) and dial-up connection interface supported.
  Provide multi-level security for applications, including the Internet and Intranet.

ISaGRAF General Features

• Support five IEC61131-3 languages, LD,ST, FBD, SFC, IL plus FC.
• Modbus RTU/TCP protocol to integrate to SCADA software and HMI
• Controller to Controller Data Exchange via Ethernet: Ebus.
• All I-7000 & I-87K series I/O modules can be integrated as remote I/O modules.
• Auto-scan I/O : Automatically scan I/O boards & declare I/O variables.
• Motion: Motion control is available when I-8091 boards integrated.
• Web HMI: Monitoring and control the local or remote controller via the Internet Explorer running on your PC.

Hardware Features

• PXA 270 CPU (32-bit & 520MHz)
• Rubber Keypad with 24/6 Keys
• 64-bit Hardware Serial Number for Software Protection
• Rich I/O Expansion Ability (Ethernet, RS-232/422/485, FRnet, CAN bus)
• Built-in one Ethernet Port, 2 Serial Ports (RS-232 & RS-485)
• IP44 Compliant Front Panel
• Audio with MIC-In and Line-Out
• 3 Slots for High Profile I/O Modules
• Dual Battery Backup SRAM (512 KB)
• Operating Temperature: -20 ~ +70 °C

Applications

Environment monitoring, factory automation, building management system, industrial machine control, etc.
