The VP-25W1 has officially been phased out and will no longer be available. It has now been replaced by VP-1231-CE7.

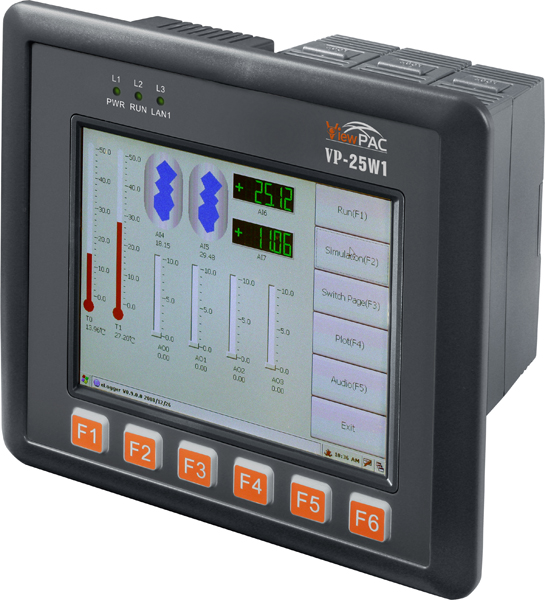

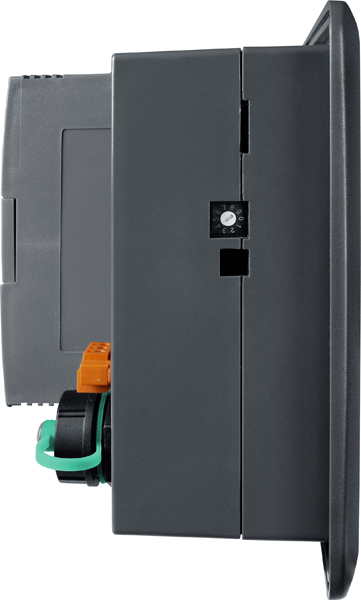

ViewPAC combines WinPAC, graphic display and keypad in one unit. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 operating system, variant connectivities (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 3.5”/5.7” TFT LCD and a rubber keypad.
Its operating system, Windows CE.NET 5.0, has many advantages including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Running Windows CE.NET 5.0 in the ViewPAC gives it the ability to run PC-based control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC etc.
Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.
| Models | VP-23W1 | VP-25W1 |
| System Software | ||
| OS | Windows CE.NET 5.0 | |
| .Net Compact Framework | 2.0 | |
| Embedded Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server | |
| SDK Provided | Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 | |
| CPU Module | ||
| CPU | PXA270 or compatible (32-bit and 520 MHz) | |
| SRAM | 128 MB | |
| Dual Battery Backup SRAM | 512 KB (for 5 years data retain) | |
| Flash | 96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry) | |
| EEPROM | 16 KB | |
| Data Retention: 40 years; 1,000,000 erase/write cycles | ||
| Expansion Flash Memory | microSD socket with one 1 GB microSD card (support up to 16 GB microSDHC card) | |
| RTC (Real Time Clock) | Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079 | |
| 64-bit Hardware Serial Number | Yes | |
| Dual Watchdog Timer | Yes | |
| Rotary Switch | Yes (0 ~ 9) | |
| Communication Interface | ||
| Ethernet | RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
|

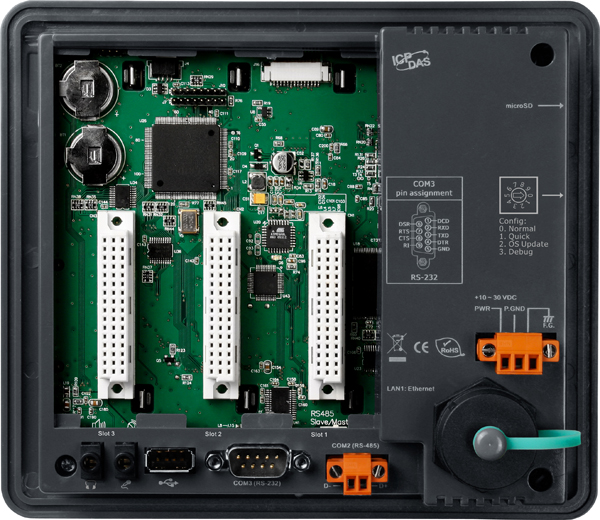

| USB 1.1 (host) | 1 | |
| COM0 | Internal communication with I-87K modules in slots | |
| COM2 | RS-485 (D2+, D2-); self-tuner ASIC inside; 2500VDC Isolated. 2500 VDC | |
| COM3 | RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated | |
| MMI (Man Machine Interface) | ||
| LCD | 3.5” TFT (Resolution 320 x 240) | 5.7” TFT (Resolution 640 x 480) |
| Touch Panel | - | Yes |
| Rubber Keypad | 24 Keys | 6 Keys |
| Audio | Microphone-In and Earphone-Out | |
| LED Indicators | 3 Dual-Color LEDs (PWR, RUN, LAN1, L1, L2, L3; L1~L3 For User Programmable) | |
| I/O expansion slots | ||

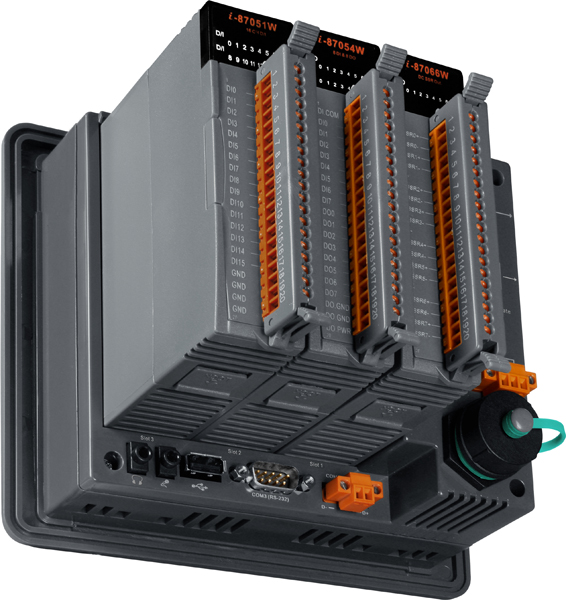

| Slot Number | 3 (For High Profile I-8K and I-87K Modules Only) | |
| Hot Swap * Will be available | For High Profile I-87K Modules Only | |
| Mechanical | ||
| Dimensions (W x L x H) | 182 mm x 158 mm x 125 mm | |
| Ingress Protection | Front panel: IP65 | |
| Environmental | ||
| Operating Temperature | -20 ~ +70°C | |
| Storage Temperature | -30 ~ +80°C | |
| Ambient Relative Humidity | 5 ~ 90% RH, non-condensing | |
| Power | ||
| Input Range | +10V ~ +30VDC | |
| Isolation | 1KV | |
| Capacity | 2.5A, 5V supply to I/O expansion slots | |
| Consumption | 7.2 W (0.3 A @ 24 VDC) | |
