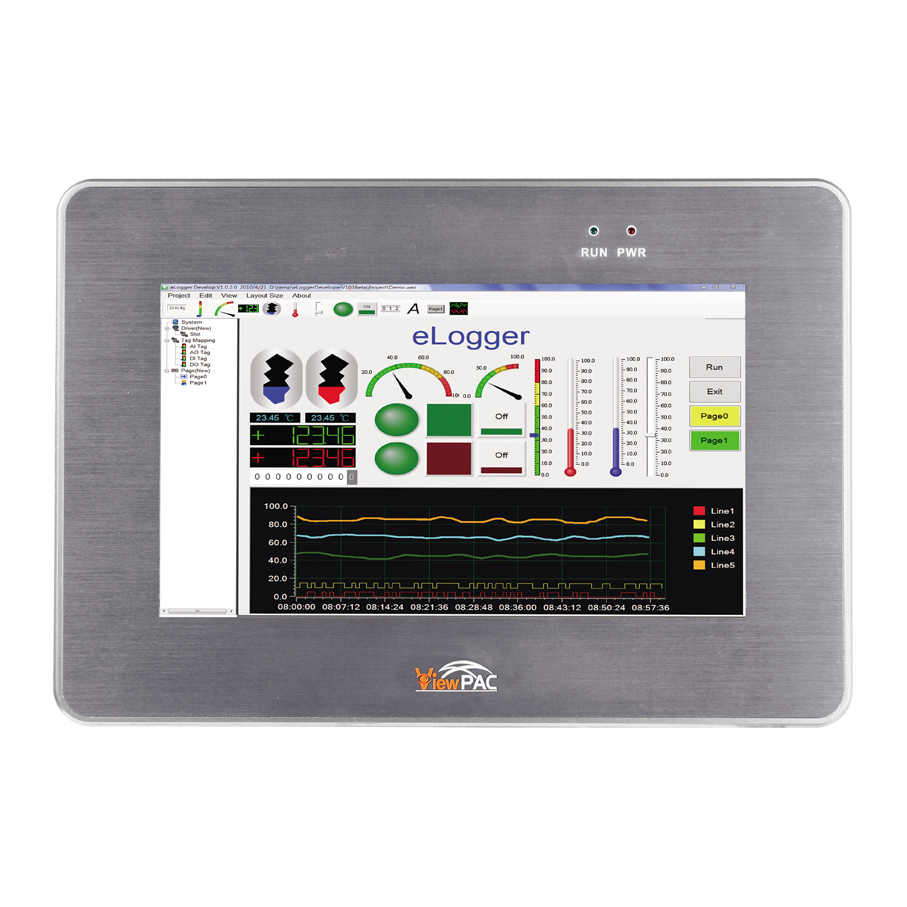

The VP-2201-CE7 is a CE7 based ViewPAC. With the ability to connect with other computing devices through I/O, and operator interfaces, all designed into one unit, the VP-2201-CE7 becomes the ideal solution for integrating with HMI, data acquisition and control in an individual PAC. Equipped with an AM3352 CPU, a 7" TFT LCD, and numerous protocol interfaces including dual a Gigabit Ethernet, USB port, and RS-232, I/O expansion and connnection to other Ethernet I/O modules and RS-485 I/O modules makees the VP-2201-CE7 more flexible. This is a front panel mount installation type of device and is NEMA 4/IP65 rated which means it can withstand sprayed water, humidity, and extreme dust. The fanless design means no moving parts. The device can withstand harsh temperatures ranges of -10°C ~ 60°C, which offers the ultimate in reliability and durability.
Windows Embedded Compact 7 is a widely used and has high reliability. It's components comprise of hard real-time, high performance that delivers rich user experiences, offering the ability to connection to Windows PCs, servers, services, and many other devices.
Win CE7 is a compact and hard real-time operating system (OS) that can be used to quickly create high perfomance demanding program applications. Visual Basic .NET, Virtual C#, SCADA Software, SoftPLC, etc, can be run on CE7.
System Software |
|
OS |
Microsoft Windows Embedded Compact 7 |
Framework Support |
.NET Compact Framework 3.5 |
Embedded Service |
FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
SDK Provided |
Dll for Visual Studio.Net |
Multilanguage Support |
English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
CPU Mode |
|
| CPU | AM3352 (720 MHz) |
| DRAM | 512 MB |
| MRAM | 128 KB. |
Flash (SSD) |
256 MB |
| EEPROM | 16 KB |
| Memory Expansion | microSD socket with 4 GB micro SDHC card (support up to 32 GB) |
| RTC (Real Time Clock) | Provide second, minute, hour, date, day of week, month, year |
| 64-bit Hardware Serial Number | Yes, for software copy protection |
| Dual Watchdog Timers | 0.8 second |
| Rotary Switch | 0 ~ 9 |
LCD |
|
Diagonal Size |
7" (16:9) |
| Resolution | 800 x 480 |
| Brightness (cd/m2) | 400 |
| Contrast Ratio | 500 : 1 |
| LED Backlight Life (hrs) | 20,000 |
| Touch Panel | 4-wire, resistive type; light transmission: 80 % |
| LED Indicator | 2 (Run, PWR) |
Communication Ports |
|
| Ethernet | 1 x RJ-45 10/100/1000 Base-TX |
| USB 2.0 (host) | 2 |
| COM 1 | RS-232 (TxD, RxD, CTS, RTS) /RS-485 (Data+, Data-) (9-wire DB9 connector); 2500 VDC isolated |
| COM 2 | RS-232 (TxD, RxD, CTS, RTS) /RS-485 (Data+, Data-) (9-wire DB9 connector); 2500 VDC isolated |
| COM 3 | - |
Audio |
Earphone-out |
Mechanical |
|
| Dimensions (W x H x D) | 213 mm x 148 mm x 44 mm |
Installation |
Panel Mounting, VESA (75 x 75) Mounting |
| Ingress Protection | Front panel: NEMA 4/IP65 |
Weight |
0.7 kg estimate |
Environmental |
|
| Operating Temperature | -10°C ~ +60°C (+14°F ~ +140°F) |
| Storage Temperature | -20°C ~ +70°C (-4°F ~ +158°F) |
Ambient Relative Humidity |
10% ~ 90% RH (non-condensing) |
Power |
|
| Input Range | +12 VDC ~ +48 VDC |
| Power from PoE | IEEE 802.3af |
Isolation |
- |
Consumption |
6 W |
