The USB-2064 is a full-speed USB device with 8-channel power relay outputs module. It offers features for industrial control and manufacturing test applications, such as factory automation or embedded machine control. The USB-2064 provides a power rated relay with 5A maximum current contact rating for switching. "Power-on" value to customize the initial state is also another feature. The safety value can be used to secure the device's function in the field. Plug & Play capabilities eliminates the need to open up the computer chassis and allows for "hot-swapping". Shut down and restarting the system to attach or remove the USB-2064 is not needed.
The USB I/O utility can help users to configure and test USB-2064 quickly and easily without programming. A user-friendly API library and demos for users are provided to develop USB application with various application development tools (VB / C++ / C#.NET / VB.NET). The USB-2064 is the perfect way to add control capabilities to any USB capable computer.

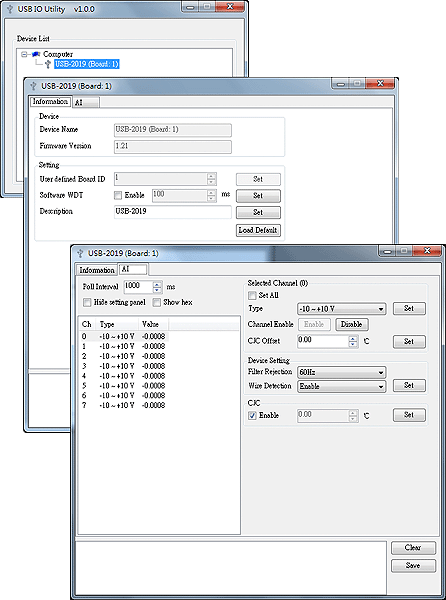

USB I/O Utility
USB I/O Utility provides a simple way to easily test and instantly acquire data for all ICP DAS USB I/O series modules without programming.
| Output | ||
| Channels | 8 | |
| Output Type | Form A (SPST-NO) | |
| Contact Rating (Resistive Load) | 5 A 250 VAC (47 ~ 63 Hz) 5 A 30 VDC |
|
| Operating Time | 10ms max. | |
| Release Time | 5ms max. | |
| Insulation Resistance | 1,000 MΩs at 500 VDC | |
| Dielectric Strenght | Between Ope Contact | 1000 VAC (1 min.) |
| Between Coil and Contact | 3000 VAC (1 min.) | |
| Endurance | Mechanical | 20,000,000 times min. |
| Electrical | 100,000 times min. | |
| Communication | ||
| Interface | USB 2.0 Full-Speed | |
| Watchdog | 1 Hardware watchdog (1.6 second) | |
| 1 Software watchdog (Programmable) | ||
| LED Indicators | ||
| System LED Indicators | 3 LED as Power, Run and Error | |
| I/O LED indicators | 9 LEDs as power relay indicators | |
| EMS Protection | ||
| ESD (IEC 61000-4-2) | 4 kV contact for each terminal | |
| 8 kV air for random point | ||
| Mechanical | ||
| Dimensions (W x L x H) | Body: 33 mm x 102 mm x 107 mm | |
| Environmental | ||
| Operating Temperature | -25°C ~ +75°C (-13°F ~ 167°F) | |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ 185°F) | |
| Humidity | 10 ~ 95% RH, non-condensing | |
| Power | ||
| Power Consumption | Maximum: 1.45 W | |
