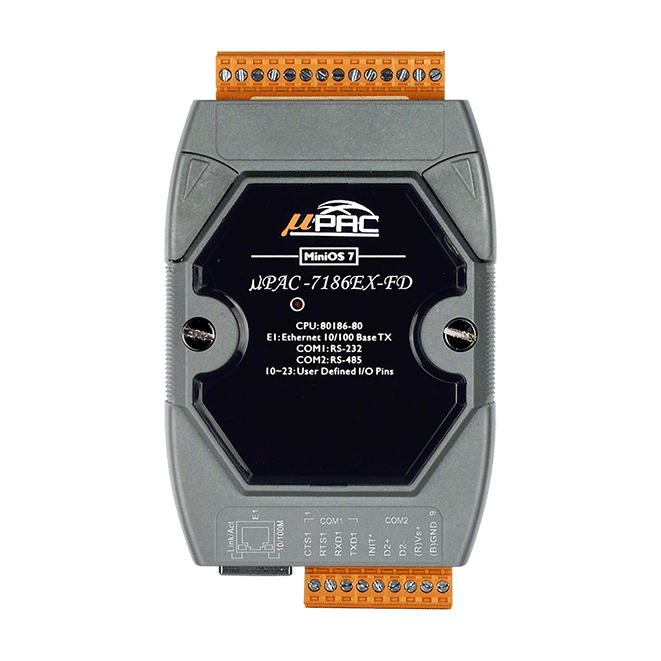

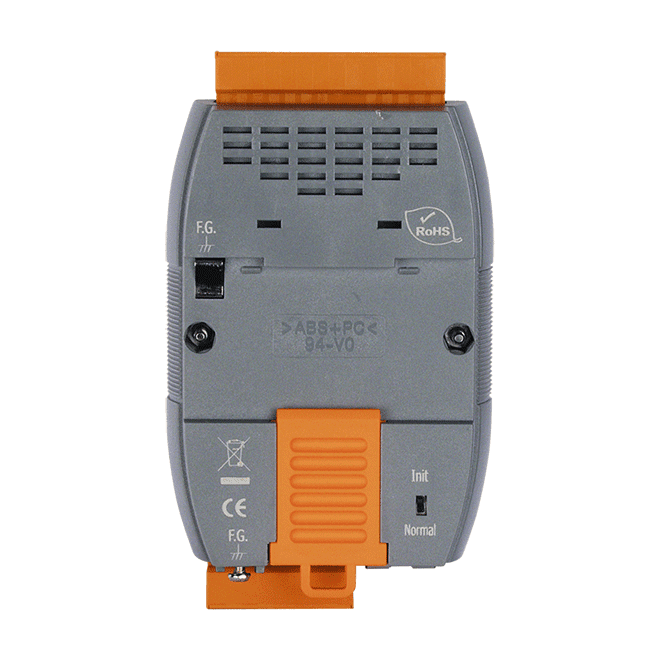

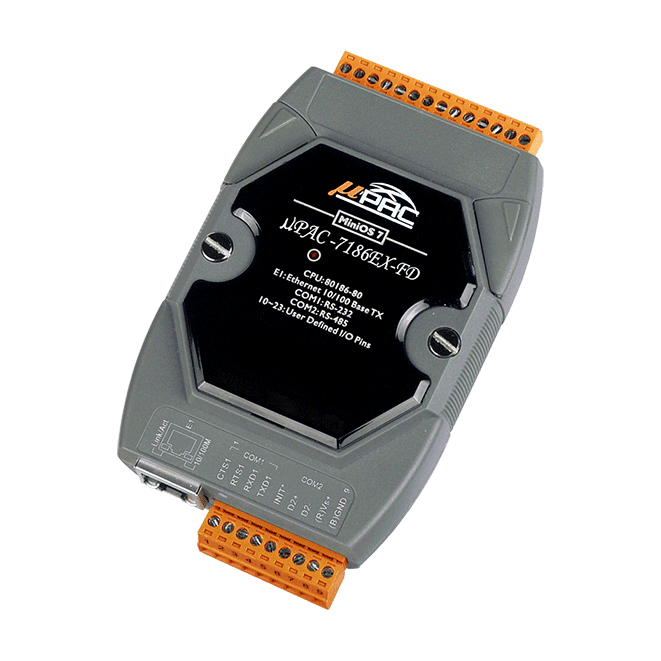

uPAC-7186EX-FD

Introduction

uPAC-7186EX-FD is a Data Acquisition controller. It has 64 MB of NAND Memory. Data Acquisition and Control is done all in one device.

It's powered by a 80186-80 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. It has one serial RS-232 port and one RS-485 port. Ethernet support is provided by a NE-2000 compatible controller with 16K bytes of on-chip buffer memory and 10Base-T media interface. The I-7186EX also provides 14 user defined I/O lines. A cost-effective I/O expansion board with A/D, D/A, relay drivers and protected inputs is available. The I-7186EX also supports battery back-up SRAM disk board and Flash-ROM board, providing non-volatile mass storage from 2 megabytes to 64 megabytes. The 10BASE-T port is equipped with a RJ-45 connector. The 10BASE-T interface supports distances up to 100-meters (cable length) between I-7186EX and the network hub.

Ethernet protocol is the de-facto standard for local area networks. Via Internet, connectivity is occurring everywhere; from home appliances to vending machines to testing equipment to UPS. Many embedded designers face dilemma of adding Ethernet interfaces to their products, either for use with local networks or for connecting to the Internet. Solutions to this problem include hardware and software. Connecting via Ethernet requires TCP/IP software protocol. The installed base of Ethernet networks is huge and growing. Most office building, factories, and new homes have installed Ethernet networks. With Ethernet, the network is always available. Using Ethernet for networks in industrial areas is appealing because the cabling is already installed.

• AMD 80186-80 Embedded CPU or compatible
• Supports a variety of TCP/IP features
  • including TCP, UDP, IP, ICMP,ARP
• 10BASE-T NE2000 compatible Ethernet Controller
• Reloadable Operating Software
• Remote Configuration
• Diagnostics
• 64-bit hardware unique serial number inside
• COM driver support interrupt & 1K QUEUE Input & Output buffer
• COM ports: COM1, COM2,
• Built-in RTC, NVRAM, EEPROM
• 14 User defined I/O lines
• Built-in I/O expansion bus interface
  • Can add on one expansion board
• Built-in self-tuner ASIC controller on RS-485 port
• 7-segment LED display for I-7188EXD
• Built-in MiniOS7
• Program download port:
  • COM1 (Ethernet Port Available soon)

TCP/IP library
The software library supports TCP/IP protocols & web server. Support the following protocols.

• TCP, Transmission Control Protocol:
  • Transport layer with connections, flow control and error correction
• UDP, User Datagram Protocol:
  • Simple connectionless transport layer
• IP, Internet Protocol:
  • The network layer
• ICMP, Internet Control Message Protocol:
  • Part of IP for practical purposes
• ARP, Address Resolution Protocol:
  • Retrieves a host's network controller's hardware address, given the host's Internet address
• Reverse Address Resolution Protocol:
  • Retrieves a host's Internet address, given the host's network controller's

Features

• Built-in High Performance MiniOS7 from ICP DAS
• Easy-to-use Software Development Tool Kits (Using C language)
• Various Storage Media
  • 512 KB Flash
  • 16 KB EEPROM
  • 64 MB NAND Flash
• Various Communication Interfaces
  • 10/100 Base-TX Ethernet
  • RS-232/RS-485
• 64-bit Hardware Serial Number
• I/O Expansion Bus Interface
• Build-in Watchdog Timer
