TPD-432F-H

$569.00
4.3" Touch Screen HMI PLC device with 2 RS-485 ports, USB, Real Time Clock, flange mount. Comes with Free HMIWorks C Language and Ladder Logic Programming and GUI Development Environment. Supports operating temperatures between -20 ~ +50°C (-4F ~ 122F). High Performance Version.
Availability: IN STOCK | FASTEST DELIVERY : Monday, Nov 30 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+

TPD-432F-H is designed for all your building and home automation needs. The TPD-432F-H is equipped with a 4.3 inch high resolution TFT color touch screen. The TPD-432F-H seamlessly integrates with rich I/O modules and presents a beautiful, flexible and user-defined picture frame. The TPD-432F-H is the best choice to upgrade the mechanical switch to intelligent control pads.

For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. It supports Modbus TCP/RTU protocols so that it enables remote control of I/O modules and integration with SCADA software. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • PoE (Power over Ethernet)
  • Multiple serial communication interfaces
  • RTC (Real Time Clock)
  • GUI design
  • Free HMIWorks development tool
  • Supports C language and Lader Designer
  • Modbus TCP, Modbus RTU and DCON protocol
  • ESD Protection: 4 kV
  • Operating temperature: -20 ~ 50°C
  • Supports user-defined third party protocol (C language)

Installation

TPD-43xF-H with External Wall Box, EWB-T43F (optional)

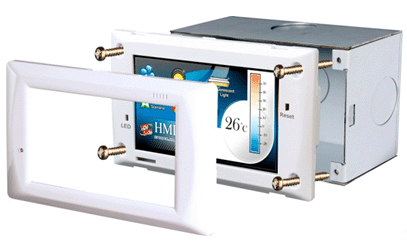

TPD-43xF-H with Outlet Box, OB140F (optional)

Applications

Application Image TPD-432F-H


Application Image 2 TPD-432F-H

Specifications

CPU Module

CPU

32-bit RISC CPU

Memory Expansion

16 MB SDRAM / 16 MB Flash

Real Time Clock (RTC)

Yes

Buzzer

Yes

Rotary Switch (0~9)

Yes

Communication Interface

COM1

RS-485 (including Self-Tuner)

COM2

RS-485 (including Self-Tuner)

Ethernet

-

USB 1.1 Client

Firmware updates only

MMI (Main Machine Interface)

LCD

4.3 TFT(Resolution 480 X 272 X 16), defective pixels <= 3

Backlight Life

20,000 hours

Brightness

400 cd/m2

Touch Panel

Yes

LED Indicator

Yes

Reset Button

Yes

Electrical

Powered from Terminal Block

+12 ~ 48 VDC

Powered from PoE

-

Power Consumption

2.5 W

Mechanical

Dimensions (W x L x H)

140 mm x 87 mm x 42mm

Installation

Wall Mount

Ingress Protection

Front Panel: IP40

Environmental

Operating Temperature

-30 ~ +50°C

Storage Temperature

-30 ~ +80°C

Ambient Relative Humidity

10 ~ 90% RH, non-condensing

Frequently Asked Questions

A touch screen PLC (Programmable logic controller) combines PLC control and HMI (Human-machine interface) visualization in a single device, allowing users to monitor equipment, view data, and control processes from one touchscreen interface.

View Original FAQ →

A TouchPad Controller is used for building automation, HVAC control, energy management, lighting control, smart homes, and industrial automation applications. It provides both operator interface and control functionality.

View Original FAQ →

Touch screen controllers communicate with HVAC systems, sensors, meters, and controllers to display real-time data, adjust settings, manage schedules, and control building systems from a central interface.

View Original FAQ →

The best HVAC HMI controller offers touchscreen control, Modbus communications, scheduling, real-time monitoring, and easy integration. The TouchPad series is designed specifically for these types of applications.

View Original FAQ →

Yes. Many touchscreen controllers combine PLC and HMI functionality into a single device, reducing hardware, wiring, and installation costs.

View Original FAQ →

Connect the device using RS-485, configure Modbus communication settings, map the required registers, and create monitoring or control screens within the application. The TouchPad series supports Modbus RTU communication.

View Original FAQ →

Key benefits include reduced hardware costs, simplified installation, smaller panel footprints, real-time monitoring, and an improved operator experience.

View Original FAQ →

Yes. TouchPad Controllers can monitor and control HVAC, lighting, energy management, occupancy, and other building automation systems from a single touchscreen interface.

View Original FAQ →

TouchPad Controllers support free Ladder Designer software for PLC programming and C/C++ development tools for advanced applications.

View Original FAQ →

Connect the remote I/O modules via RS-485, configure Modbus RTU or DCON communications, map the I/O points, and display the data on the touchscreen interface.

View Original FAQ →
