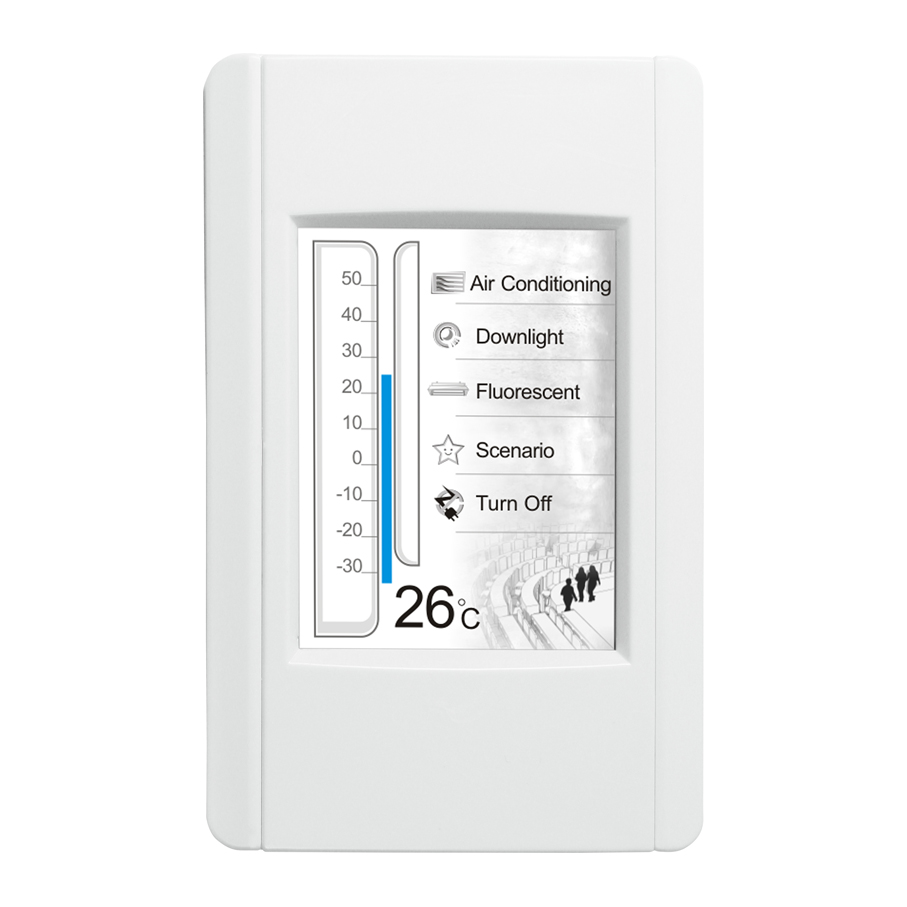

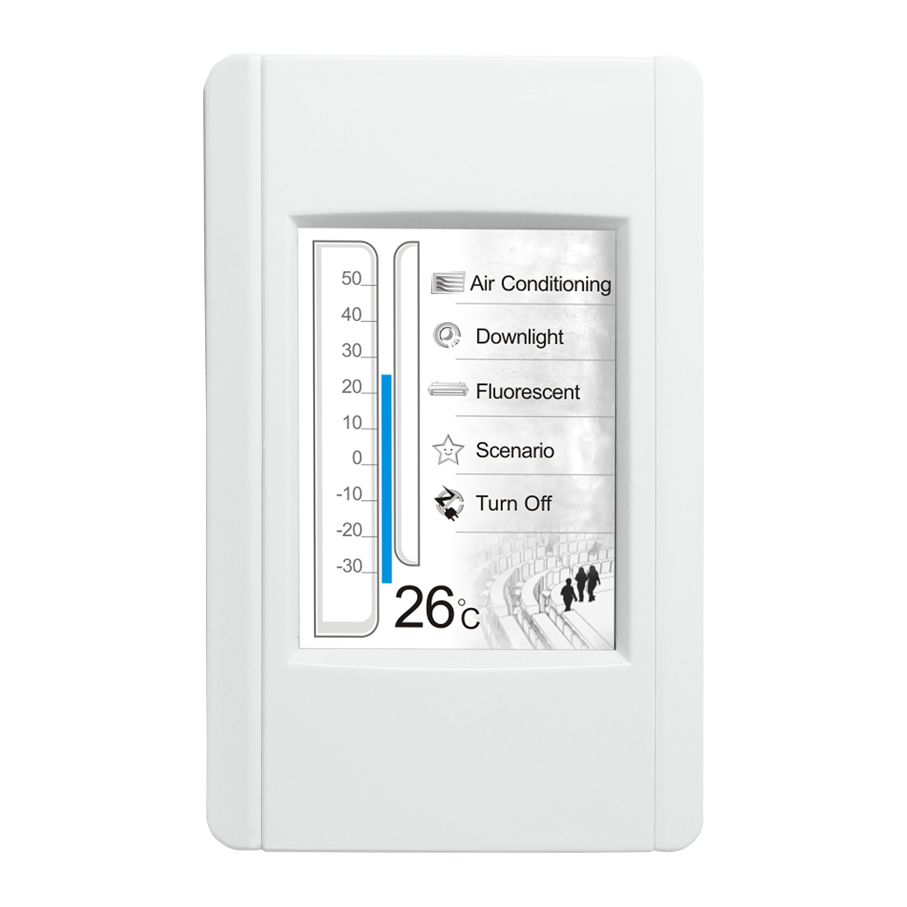

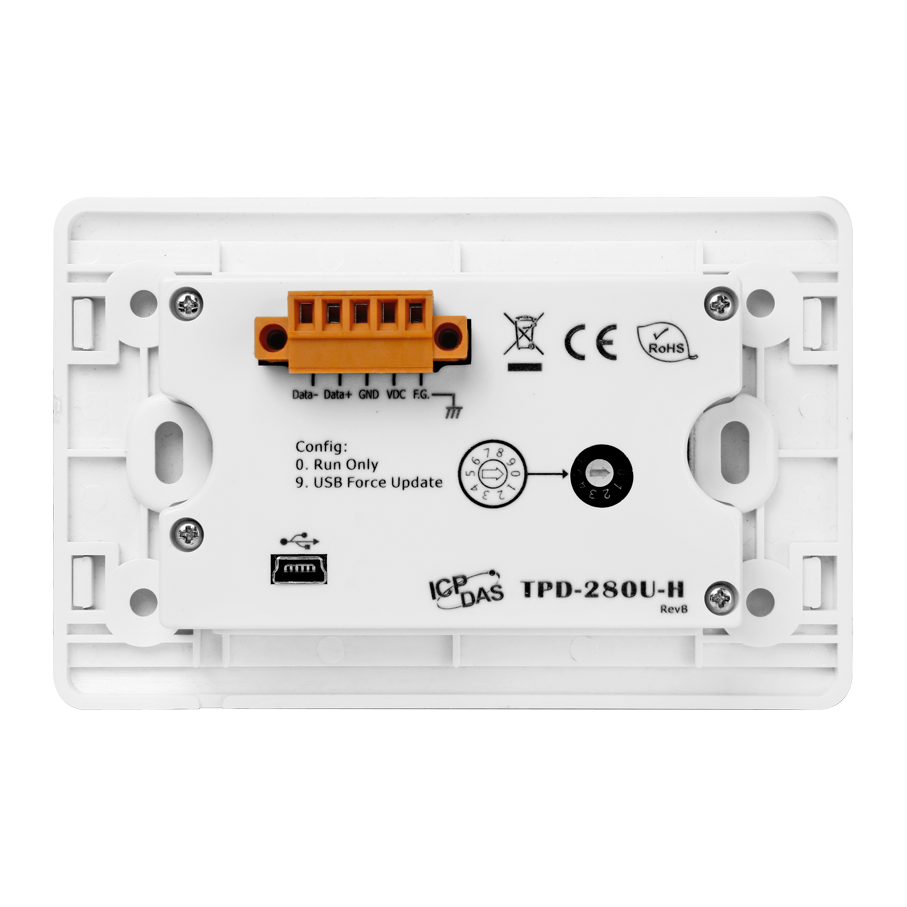

The TPD-280U-H is a small touch screen HMI controller designed for building and home automation. TPD-280U-H is equipped with a high resolution 2.8'' TFT color touch screen, and has a user-friendly development software of HMIWorks; creating a beautiful, flexible and custom picture display on the screen.
For PLC users, HMIWorks software provides Ladder Designer, and C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD series devices when using Ladder Designer.
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
|---|---|
| Type | LCD 2.8 TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Yes |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | Yes |
| USB | |
|---|---|
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
|---|---|
| Consumption | 1.5 W |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 119 mm x 76 mm x 33 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
|---|---|
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
