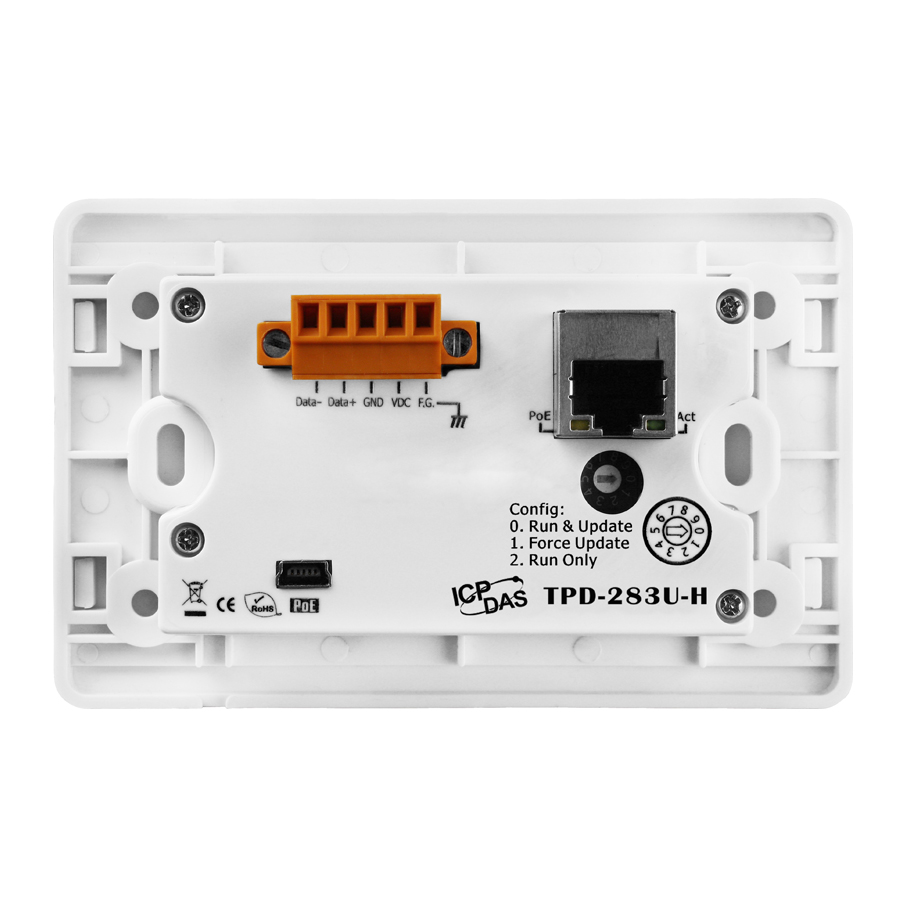

TPD-283U-H

$409.00

2.8-inch High Speed Touch Screen HMI Controller with High resolution LCD color screen, PoE (Power over Ethernet), RS-485 and Ethernet port. Communicates over RS-485, Ethernet, Modbus RTU and Modbus TCP. Has 16 MB SDRAM and 16 MB Flash, Real Time Clock. Can fit in regular electrical wall mount. Has operating temperature range of -20°C ~ +70°C (-4°F ~ +158°F)

Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options

QTY

Add to Quote

Buy With One Click

Share On:
Categories:	TouchPad Touch Screen Controllers \| TouchPad Controller
Review:	Write your review
Resources:	CE Certification Data Sheet FCC Certification HMI Works Quickstart User's Manual 2D DWG Drawing

Introduction

TPD-283U-H is a tiny 2.8 inch high speed touch HMI designed for building and home automation. It is equipped with high resolution TFT color touch screen and fits into regular electrical wallmount outlet. It can be integrated seamlessly with I/O modules and presents beautiful, flexible,and user-defined picture frame. It is the best choice to upgrade the mechanical switch to intelligent control pads.

HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. It only takes less than 30 minutes to create an application program of TPD series devices when using Ladder Designer. We provide redundant solutions in our PoE version, TPD-283-H of TPD-series HMI devices. With all the features provided, TPD-series touch HMI Devices must be the most cost effective HMI Device ever been in the market.

Features

Excellent C/P ratio (cost/performance)
High-resolution color touch screen
PoE (Power over Ethernet)
RS-485 (including Self-Tuner)
RTC (Real Time Clock)
GUI design
Free HMIWorks development tool
Supports C programming language and Ladder Designer
Supports the custom communication protocol (C language)
Modbus TCP/RTU protocol
ESD Protection: 4 kV
Operating temperature: -20°C ~ +70°C (-4°F ~ +158°F)

FCC RoHS WEEE

Specifications

Main Unit
CPU	32-bit RISC CPU
Storage	16 MB SDRAM/16 MB Flash
Real Time Clock	Yes

Display
Type	LCD 2.8 TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3
Backlight Life	20,000 hours
Brightness	160 cd/m2
Touch Panel	Yes

HMI
Buzzer	Yes
Rotary Switch	Yes

Ethernet
Ports	RJ-45 x 1, 10/100 Base-TX

USB
Specification	USB 1.1 Client (Firmware updates only)
Connector	Mini-B

Power
Consumption	1.5 W
Powered from PoE	IEEE 802.3af, Class1 (48 V)
Powered from Terminal Block	+12 ~ 48 VDC

Mechanical
Dimensions (mm)	119 mm x 76 mm x 33 mm
Installation	Wall Mounting
Ingress Protection Rating	Front Panel: IP40

Environment
Operating Temperature	-20 ~ +70°C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing
