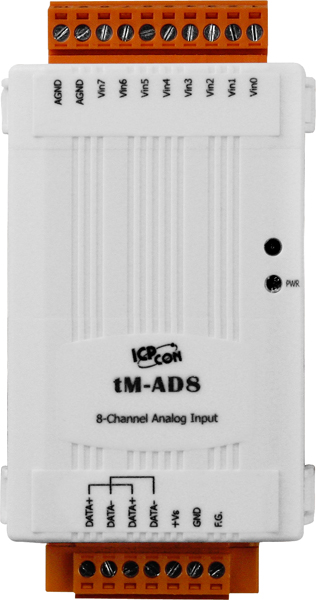

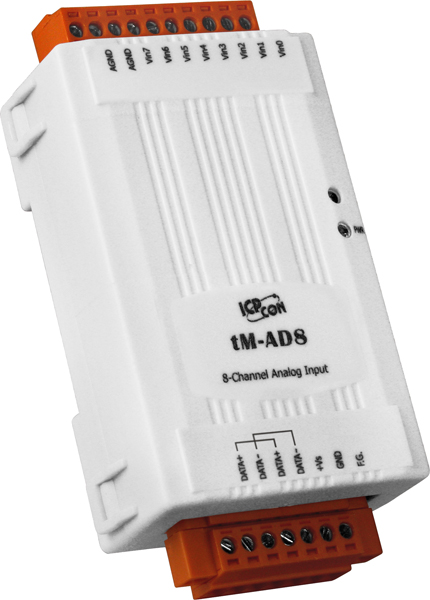

tM-AD8

The tM-AD8 is an analog input module that includes 8 single-ended analog input channels and provides a programmable input range on all analog inputs (0 ~ 500 mV, 0 ~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V). It provides a high overvoltage protection of 120 VDC. The sampling rate of the tM-AD8 is adjustable and is available in either fast or normal mode and It also provides 4 KV ESD protection as well as 2500 Vrms intra-module isolation.

Features

• 8-channel Single-ended Inputs
• Voltage Inputs
• 120 VDC Overvoltage Protection
• Resolution: 14/12 bits
• Adjustable Sampling Rate
• 4 kV ESD and EFT Protecton
• 3 kV Surge Protection
• Dual Watchdog
• 2500 VDC Intra-module Isolation
• Cost-effective
• Wide Operating Temperature Range: -25 °C ~ +75 °C

Applications

• Industrial Automation
• Industrial Machinery
• Building Automation
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
