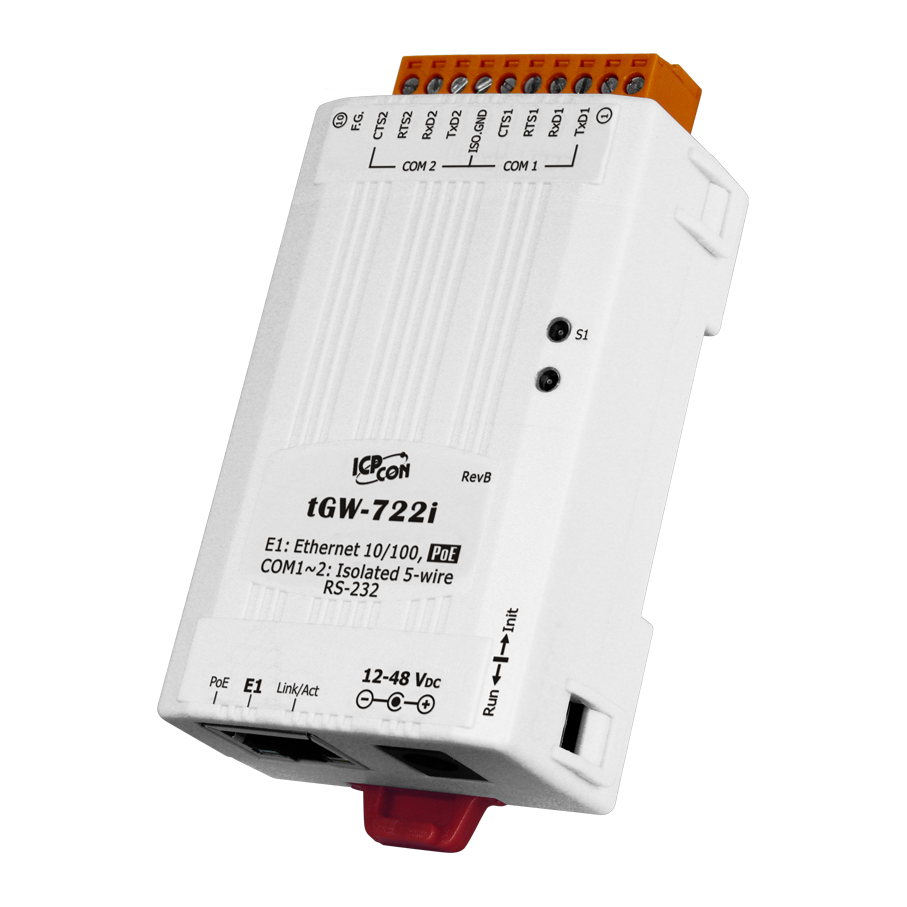

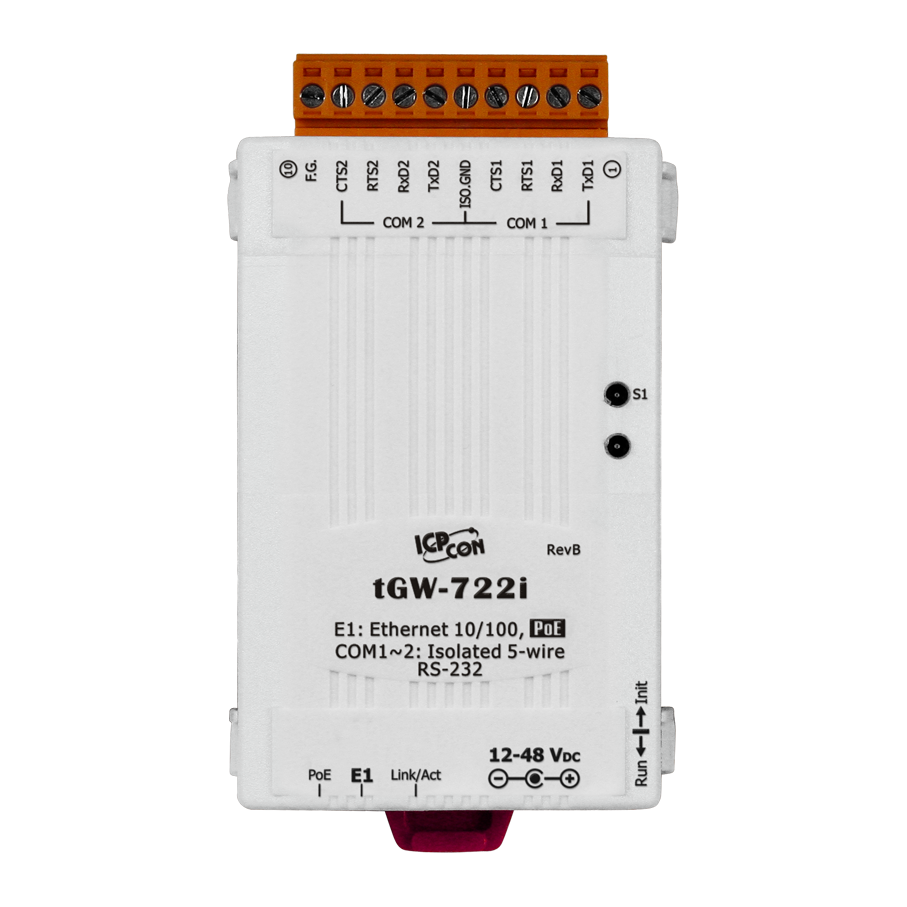

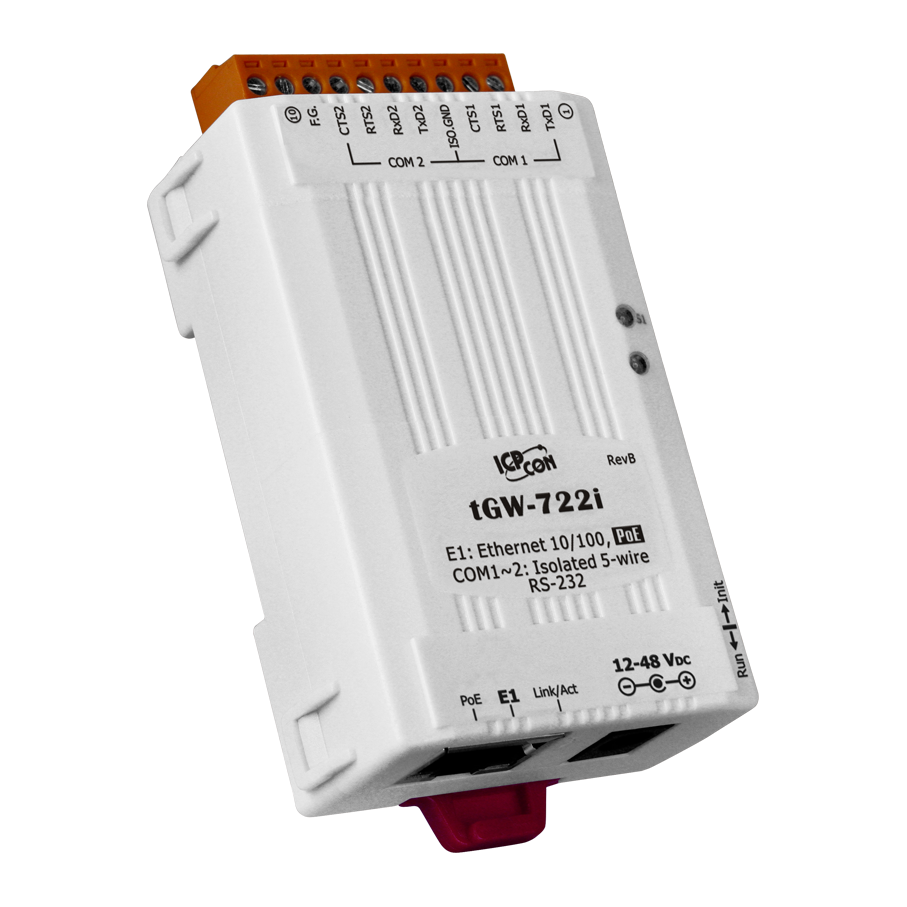

ICP DAS USA’s tGW-722i module is a Modbus TCP to RTU/ASCII gateway that allows a Modbus/TCP host to communicate with serial Modbus RTU/ASCII devices through an Ethernet network, and eliminates the cable length limitation of legacy serial communication devices. The module can create a pair-connection application (as well as serial-bridge or serial-tunnel application), and can then route data over TCP/IP between two serial Modbus RTU/ASCII devices, which is useful when connecting mainframe computers, servers or other serial devices that use Modbus RTU/ASCII protocols and themselves do not have Ethernet capability. The tGW-722i also adds 3000 VDC isolation and +/-4 kV ESD protection component that diverts the potentially damaging charge away from sensitive circuit to protects the module and equipment from the sudden and momentary electric current.
| Model | tGW-722i |
| System | |
| CPU | 32-bit ARM |
| Communication Interface | |
| Ethernet | 10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| COM1 (TCP Port: 502) | 5-wire RS-232 |
| COM2 (TCP Port: 503) | 5-wire RS-232 |
| COM3 (TCP Port: 504) | - |
| Self-Tuner | - |
| UART | 16c550 or compatible |
| COM Port Format | |
| Baud Rate | 115200 bps Max. |
| Data Bit | 5, 6, 7, 8 |
| Parity | None, Odd, Even, Mark, Space |
| Stop Bit | 1, 2 |
| Power | |
| Power Input | PoE: IEEE 802.3af, Class 1 DC jack: +12 ~ 48 VDC |
| Power Consumption | 0.05 A @ 24 VDC |
| Mechanism | |
| Connector | 10-Pin Removable Terminal Block x 1 |
| Mounting | DIN-Rail |
| Flammability | Fire Retardant Materials (UL94-V0 Level) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
| Model | RS-232 | RS-422/485 | RS-485 | CPU | Ethernet | Baud Rate | COM1 TCP Port: 502 | COM2 TCP Port: 503 | COM3 TCP Port: 504 |
| tGW-712 | 1 | - | - | 32-bit ARM | 10/100 Base-TX, PoE | 115200 bps | 5-wire RS-232 | - | - |
| tGW-722 | 2 | - | - | 5-wire RS-232 | 5-wire RS-232 | - | |||
| tGW-732 | 2 | - | - | 3-wire RS-232 | 3-wire RS-232 | 3-wire RS-232 | |||

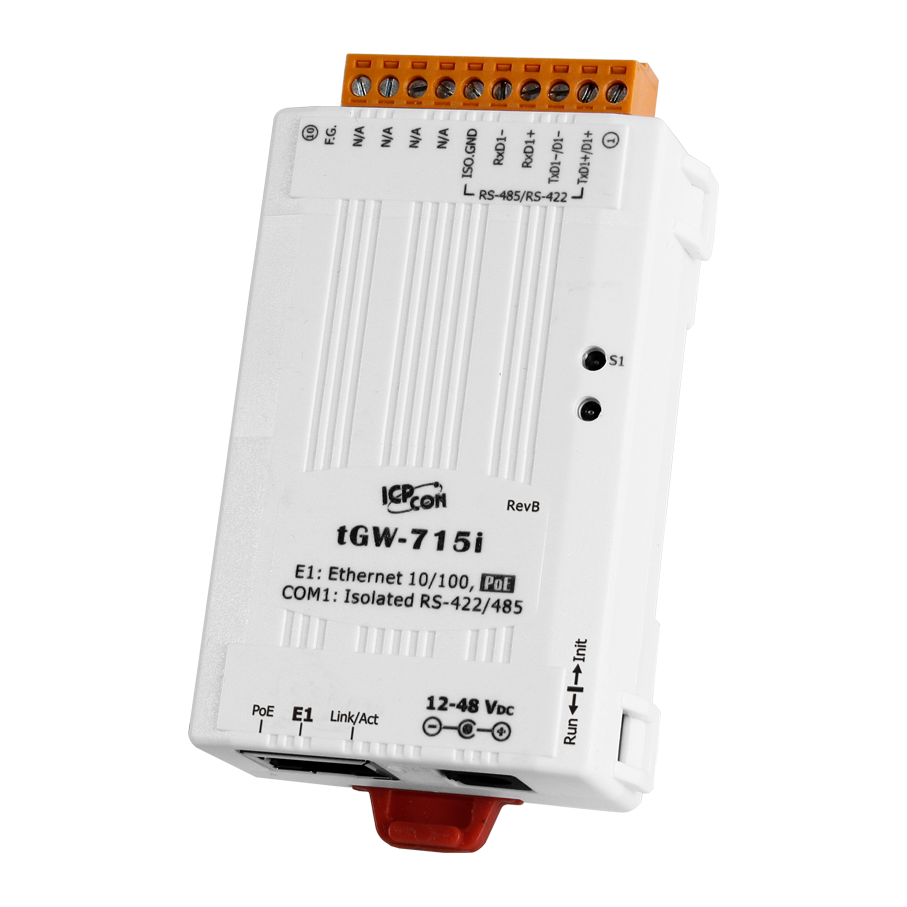

| tGW-715 | - | 1 | - | 2-wire RS-485 4-wire RS-422 | - | - | |||
| tGW-725 | - | - | 2 | 2-wire RS-485 | 2-wire RS-485 | - | |||
| tGW-735 | - | - | 3 | 2-wire RS-485 | 2-wire RS-485 | 2-wire RS-485 | |||
| tGW-718 | 1 | - | 3-wire RS-232 | - | - | ||||
| 2-wire RS-485 4-wire RS-422 | |||||||||
| tGW-724 | 1 | - | 1 | 2-wire RS-485 | 5-wire RS-232 | - | |||

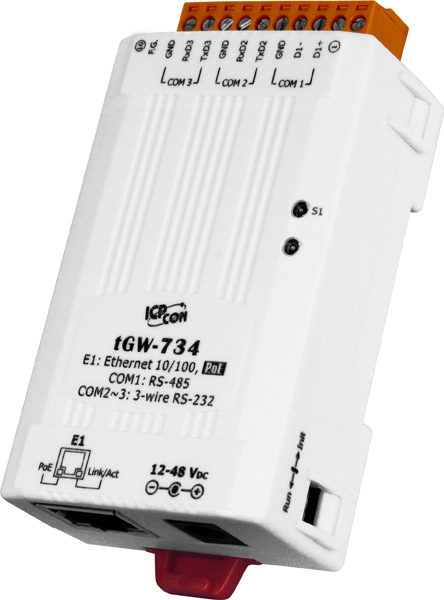

| tGW-734 | 2 | - | 1 | 2-wire RS-485 | 3-wire RS-232 | 3-wire RS-232 | |||
