New Product – WF-2026

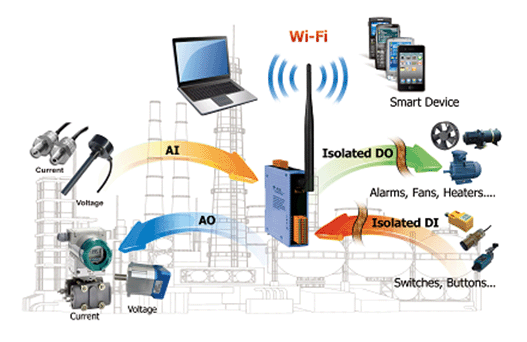

New Product: WF-2026 Wi-Fi I/O 5-Channel Analog Input, 2-Channel Analog Output, 2-Channel Digital Input and 3-Channel Digital Output. The WF-2026 is a multifunction module with Wi-Fi interface that includes 5 analog input channels, 2 analog output channels, 2 digital input channels and 3 digital output channels. It provides a programmable input range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0 to +20 mA) and output range on all analog output (12-bit at +/-5 V, +/-10 V, 0 to +20 mA or +4 to +20 mA). Each analog input and output channel can be configured for an individual range and provides a high overvoltage protection of 240 Vrms. Analog Input and output can be jumper selectable as either voltage or current.

With the popularity of 802.11 network infrastructure, the WF-2026 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2026 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offers easy and safe access for users from anywhere.

Features:

• Multifunction (5 AI, 2 AO, 2 DI and 3 DO)
• Individual Channel Configuration
• Jumper Selectable Voltage or Current Input/Output
• Configurable Power-on and Safe Value Settings
• Compatible with IEEE 802.11b/g standards
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus/TCP and UDP protocols
• Support DHCP network configuration
• Overload and Short Circuit Protection for Digital Output
• 240 Vrms Overvoltage Protection for Voltage Input
• ±4 kV Contact ESD Protection
• Built-in Watchdog

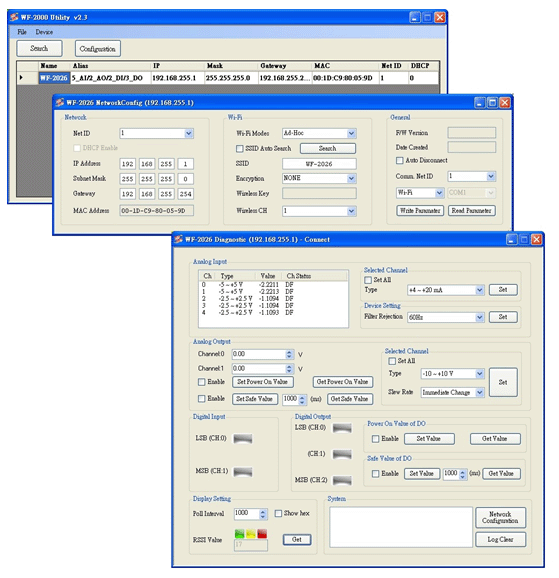

Utility Feature:

• Provide automatic search functionality
• Provide Analog / Digital Input and Output monitor and configuration interfaces
• Provide wireless encryption configuration
