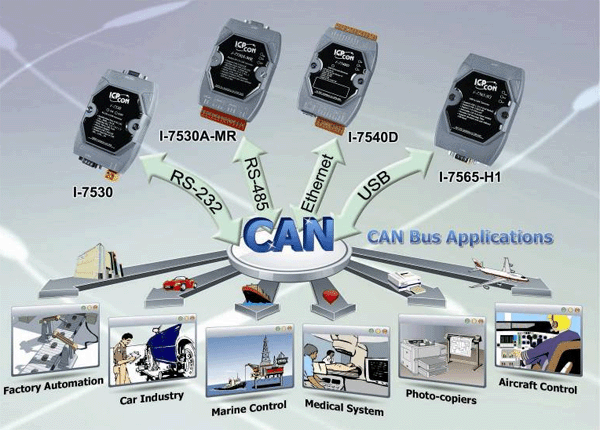

ICP DAS CAN converters are used to establish a physical coupling of two or more communication interface, and are infrastructure components with which complex network structures can be implemented. They can be used to implement the data conversion between CAN and COM, USB or Ethernet interface. For example, the I-7530 series devices are high speed or low speed/fault-tolerance CAN bus to RS-232, RS-485 and RS-422 interface converters. The I-7540 series devices are high speed CAN bus to Ethernet or Wi-Fi interface converters. And the I-7565 series devices are high speed CAN bus to USB interface converters. By selecting the necessary CAN converters, user can control and integrate the data exchange and transmission between multi-interfaces easily.
| Module Name | I-7530-FT | I-7530 | I-7530A | I-7530A-MR |
|---|---|---|---|---|
| Pictures |  |
 |
 |
 |
| COM 1 | RS-232 | RS-232 / RS-422 / RS-485 | ||
| Modbus RTU Slave | – | Yes | ||
| CAN Baud Rate (bps) | 10 k ~ 125 k | 10 k ~ 1 M | ||
| CAN Specification | ISO 11898-3 (Low-Speed/Fault-Tolerance) |
ISO 11898-2 | ||
| CAN Single-line Communication | Yes | – | ||
| CAN Terminal Resistance | 1 kΩ terminator resistor | Selectable 120 Ω terminator resistor | ||
| Module Name | I-7540D | I-7540-MTCP | I-7540D-WF |
|---|---|---|---|
| Pictures |  |
|
 |
| COM 1 | RS-232 | – | |
| COM 2 | RS-485 | – | |
| Virtual COM | Yes | – | – |
| Modbus RTU Slave | – | Yes | – |
| Ethernet Port | 10/100 M | 802.11 b/g, Infrastructure & Ad-hoc | |
| Modbus TCP Server | – | Yes | – |
| CAN Baud Rate (bps) | 10 k ~ 1 M | 5 k ~ 1 M | |
| CAN Specification | ISO 11898-2 | ||
| CAN Terminal Resistance | Selectable 120 Ω terminator resistor | ||
| Module Name | I-7565 | I-7565-H1 | I-7565-H2 |
|---|---|---|---|
| Pictures |  |
 |
 |
| CAN Channel | 1 | 2 | |
| CAN Baud Rate (bps) | 10 k ~ 1 M | 5 k ~ 1 M | |
| Real-time Cyclic Transmission | – | Yes | |
| Time Stamp | – | Yes | |
| FPS | 250 | 3000 (Total CAN ports) | |
| PC Driver | Windows 98/Me/2000/XP/XP-64bit/Vista/Vista-64bit/7/7-64bit Linux | Windows XP/XP-64bit/7/7-64bit Linux | |
| Product | Interface | Description |
|---|---|---|
| I-7530 | CAN <–> RS-232 | CAN to RS-232 converter |
| I-7530-FT | Low-Speed/Fault-Tolerance CAN to RS-232 converter | |
| I-7530A-MR | CAN <–> RS-232/RS-422/RS-485 | CAN to Modbus RTU slave converter |
| I-7530A | CAN to RS-232/RS-422/RS-485 converter | |
| I-7540D | CAN <–> Ethernet | CAN to Ethernet converter |
| I-7540D-MTCP | CAN to Modbus TCP server converter | |
| I-7540D-WF | CAN <–> Wi-Fi | CAN to Wi-Fi converter |
| I-7565 | CAN * 1 <–> USB | USB to CAN converter |
| I-7565-H1 | High performance 1-port USB to CAN converter | |
| I-7565-H2 | CAN * 2 <–> USB | High performance 2-port USB to CAN converter |
