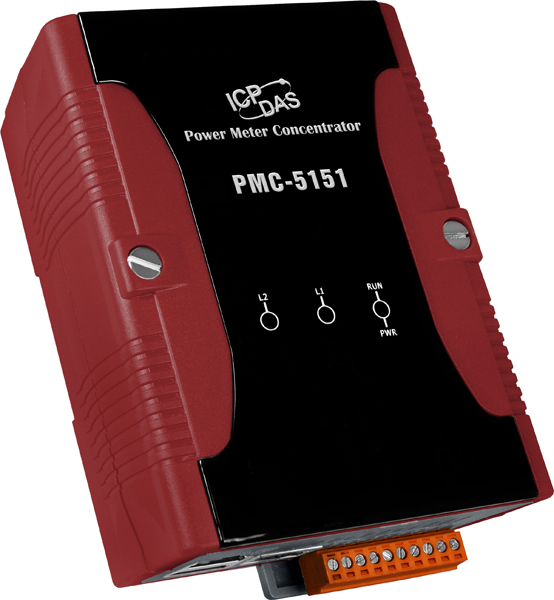

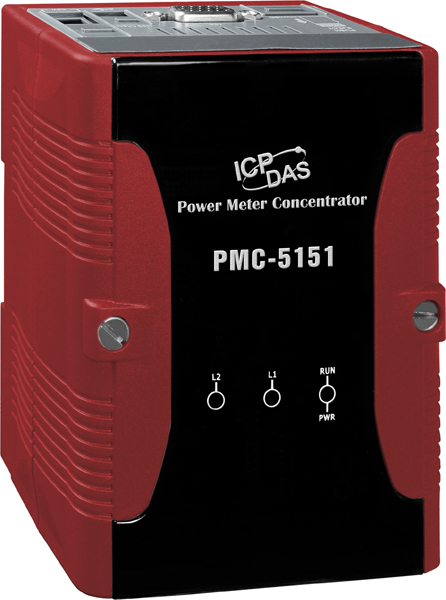

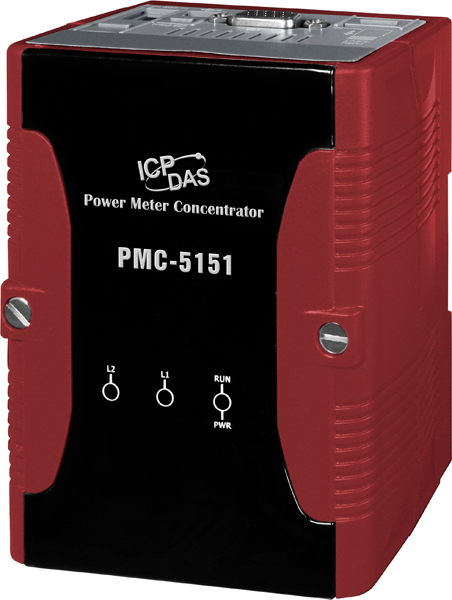

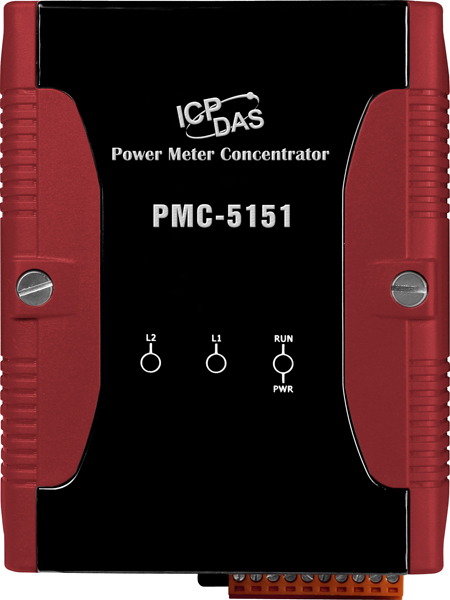

The PMC-5151 is a web-based intelligent Power Meter Concentrator developed by ICP DAS USA. It offers webpage interface, and features various functions such as: power data collection, logic control, power demand management, data logger and alarm notification functions. PMC-5151 allows connections to ICP DAS USA's Smart Power Meters via RS-485 or Ethernet interface to read the power data of the devices measured by the power meters; and then real-time record the power values in the data logger file. PMC-5151 also provides data logger file auto send-back function; together with PMC Data Server software or SCADA software, it allows collection and analysis of the power data.
PMC-5151 is equipped with built-in Web Server that allows direct connections via browsers to the PMC-5151 for viewing power data and setting up the system parameters. In addition to the standard power data review page, by using the Flash HMI web page editor function on PMC-5151, the users could easily design a specific power monitor page by a few clicks on browsers. PMC-5151 also offers Modbus TCP/RTU Slave function that allows SCADA software or HMI devices to connect to PMC-5151 to get real-time power data of the devices via Modbus TCP/RTU protocol.
In addition to ICP DAS XW-Board and M-7000 I/O modules, the PMC-5151 also could connect to standard Modbus TCP/RTU Slave modules. By working with the I/O modules, and functions such as IF-THEN-ELSE logic rule execution and Email/SMS Alarm Notification, PMC-5151 offers more thought-out power demand management and alarm notification functions, and is able to perform load shedding of the devices if required, and enables real-time monitoring and control of the power consumption of the devices.
When using PMC-5151 to build a power management and monitoring system, during the whole process of system development, no programming is required; it takes a few clicks on web page to complete all settings; it is easy for the user to quickly view the power data of the devices and furthermore process the data for statistics and analysis. The PMC-5151 is an easy-to-use and easy-to-build total solution for power management and monitoring that makes more efficient energy usage.
| Software | |
|---|---|
| Protocol | Modbus TCP/RTU for SCADA software FTP Client & Server SNMP & SNMP Trap DDNS |
| Function | Web Interface for Configuration IF-THEN-ELSE Logic operation (Unlimited rule supported) Power meters & I/O modules monitoring and control Data Logger operation Timer operation (Unlimited set supported) Schedule operation (Unlimited set supported) Internal Register operation (48 set supported) non-SSL & SSL Email sending function SNTP Time Synchronization |
| Power Management | Power Data Display Historical Power Data Report Power Demand Management PUE Setting and Display |
| CPU Module | |
|---|---|
| CPU | 32-bit ARM CPU (520 MHz) |
| Storage Expansion | microSD socket with 4 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators | |
|---|---|
| Status | 1 x Power/Running |
| I/O Expansion | |
|---|---|
| I/O Type | XW-board |
| Remote Module Support | M-7000/DL Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| Power Meter | PM Series Modbus meter |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 2, 10/100 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
|---|---|
| Ports | COM 1: RS-232 (RxD, TxD and GND); non-isolated; COM 2: RS-485 (D+, D-); 2500 VDC; isolated; COM 3: RS-485 (D+, D-); 2500 VDC; isolated; |
| Power | |
|---|---|
| Input Range | 10 ~ 30 VDC |
| Consumption | 4.8 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 91 x 126 x 52 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
