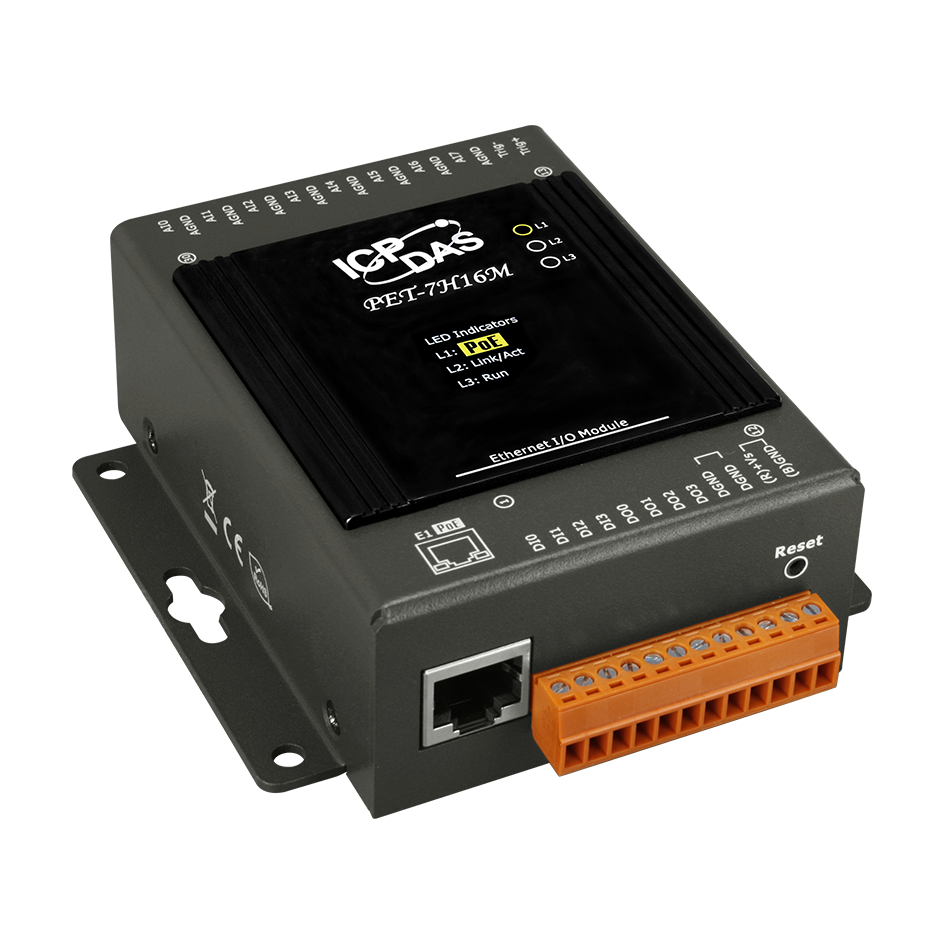

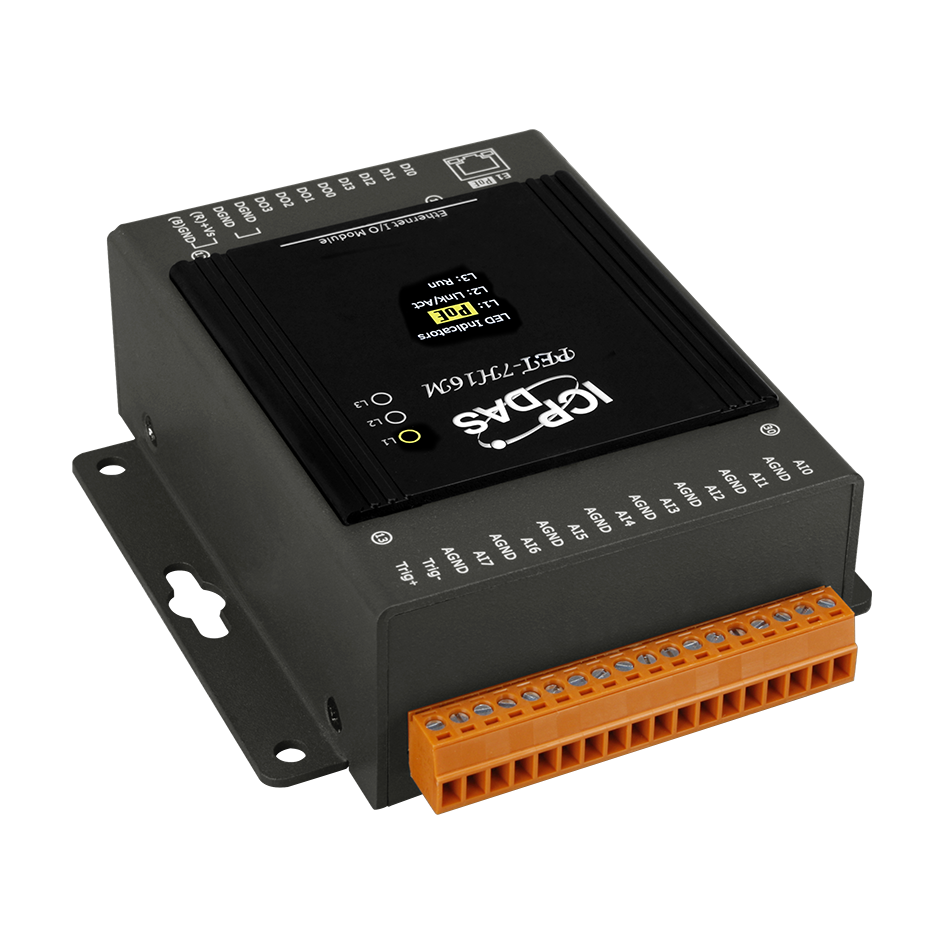

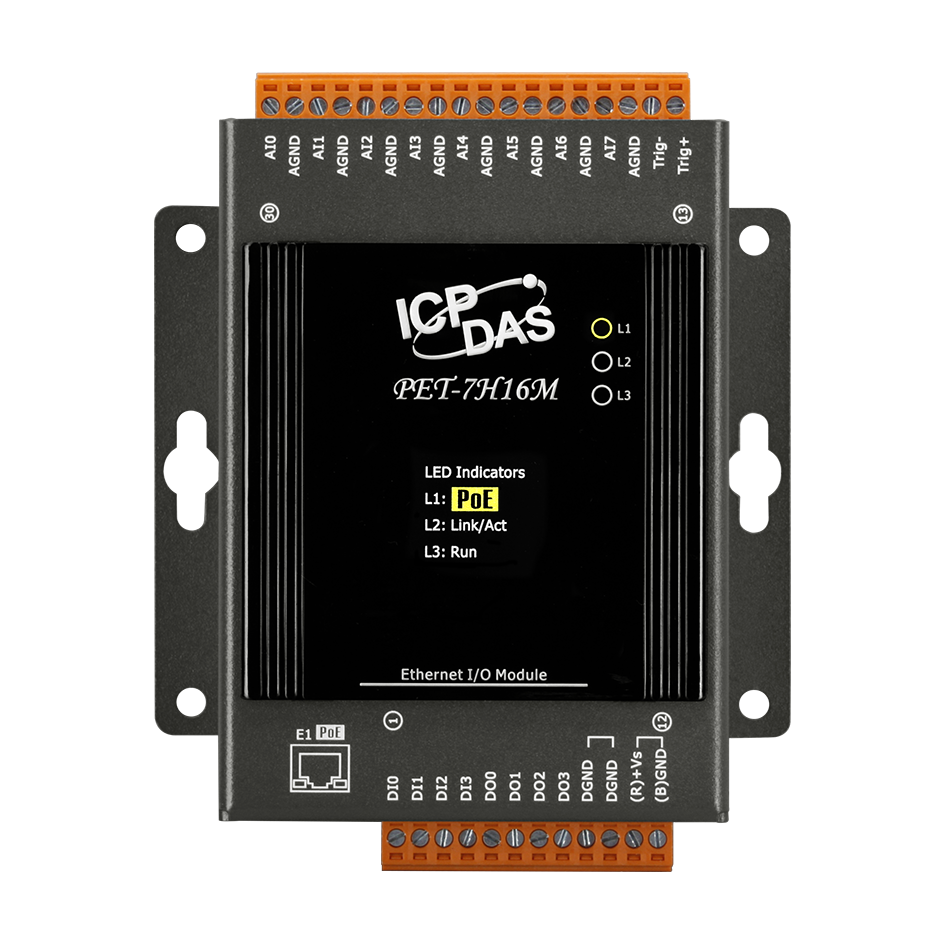

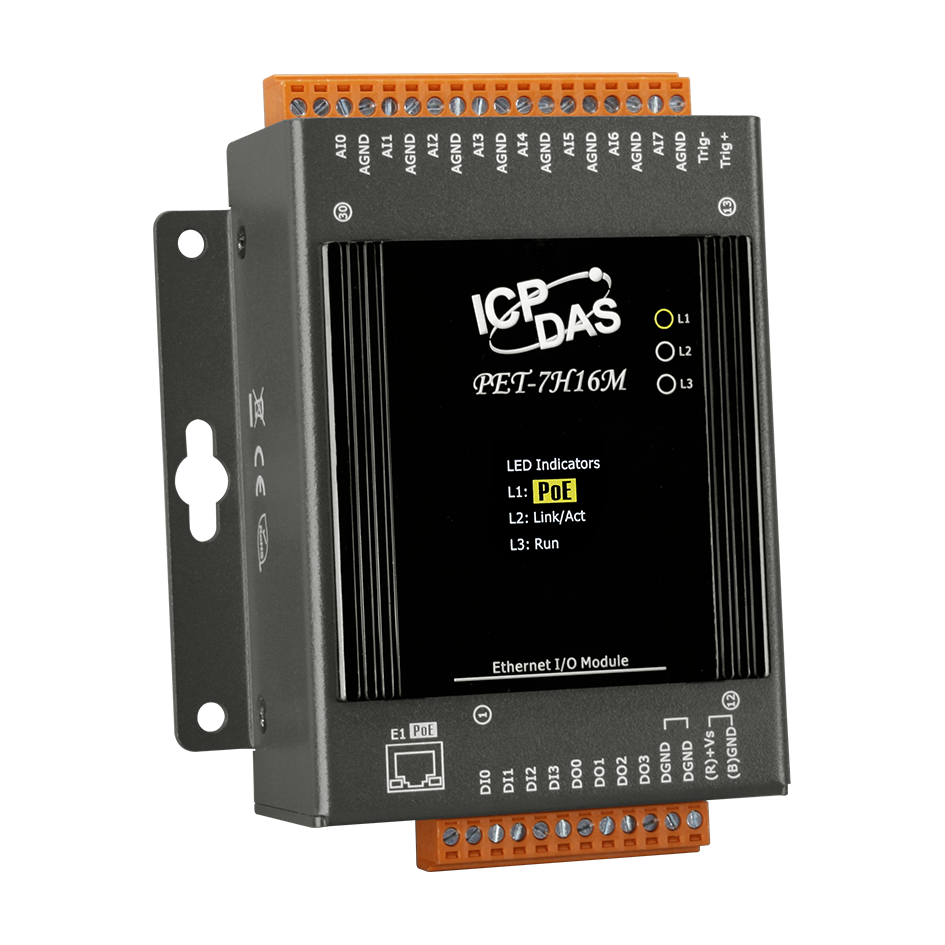

PET-7H16M

The PET-7H16M is an high speed data acquisition devices built-in a Ethernet communication port for data transfer over the network and it includes a high speed 16-bit single-ended analog inputs (200 KHz sample and hold for 8 channels), 4-channel digital inputs and 4-channel digital outputs. It provides programmable input range on all analog channels (±5 V and ±10 V), digital output can be set output with Short-circuit protection and overload protection. PET-7H16M also has qualification for 4 kV ESD protection as well as 2500 VDC intra module isolation.

• 8 Single-ended Analog Input Channels(16-bit Resolution)
  • Supports real Sample and Hold
  • Max. Sample Rate: 200 kS/s per channel
• Built-in I/O
  • AI: 8 Channels
  • DI: 4 Channels
  • DO: 4 Channels

Featured Modes

1. Data transmission mode
   1. Continuous transmission mode (Max. sampling rate of 30 kHz per channel)
   2. N data samples mode (Max. sampling rate of 200 kHz per channel)
2. A/D trigger mode
   1. Software AD Data Acquisition mode
   2. External Digital Signal Event Trigger mode
   3. External Clock AD Conversion Data Acquisition mode
3. External Digital Signal Event Trigger mode
   1. Pre-Trigger (acquisition of N data samples)
   2. Post-Trigger (acquisition of N data samples)
4. Software Support
   1. VC, C#, VB.NET API and Demo
   2. LabVIEW Toolkit and Demo
