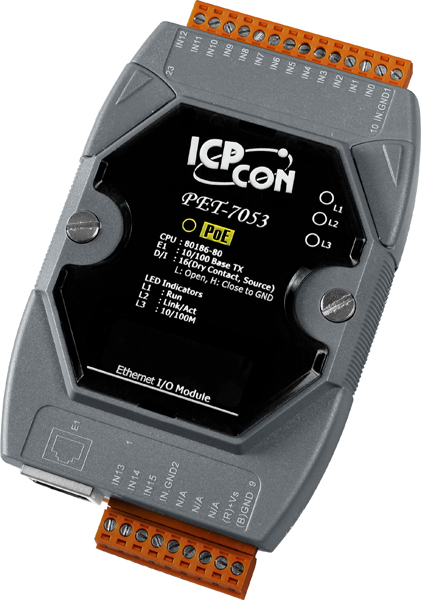

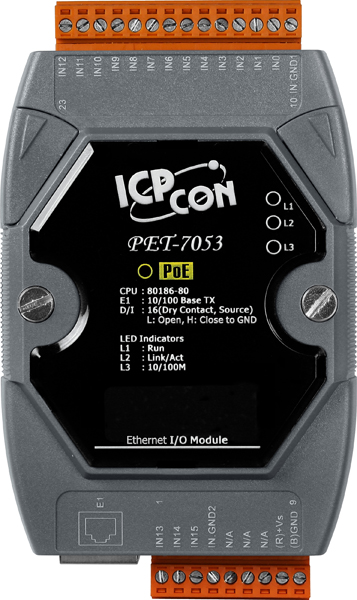

PET-7053

$389.00

16-channel Isolated Digital Input (32-bit Counter) Module with 32-bit Counters PoE Module, communicable over Modbus TCP and Modbus UDP

Availability: IN STOCK | FASTEST DELIVERY : Friday, Oct 2 | Enter ZIP below for shipping options

Share On:
Categories:	PoE Ethernet Modbus TCP I/O Modules
Review:	Write your review
Resources:	Data Sheet Downloads Free EZ Data Logger Software How to Use ET-7000 / PET-7000 with LabView Quick Start Register Table Manual User's Manual 2D DWG Drawing

Introduction

The PET-7053, a web-based Ethernet I/O module, features a built-in web server which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as surfing the Internet.

Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The PET-7053 offers easy and safe access for users from anytime and anywhere! In addition, the PET-7053 also supports Modbus/TCP protocol that makes perfect integration to SCADA software.

Furthermore, PET-7053 features "PoE" that not only data but also power is carried through an Ethernet cable. This feature makes installation of PET-7053 a piece of cake. Imagine that no more unnecessary wires, only an Ethernet cable takes care of everything in the field.

Features

PoE and Regular Ethernet Options
Built-In Web Server
Web HMI
Modbus/TCP, Modbus/UDP Protocol
Communication Security
Dual Watchdog
Operating Temperature: -25 ~ +75 °C
I/O Pair Connection
Built-In I/O
- DI/Counter: 16 Channels

Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis, Testing Equipment.

FCC RoHS WEEE

Specifications

Software
Built-in Web Server	Yes

CPU Module
Watchdog Timer	Module, Communication (Programmable)

Isolation
2-way Isolation	I/O: 2500 VDC

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal ±8 kV Air for Random Point

LED Indicators
Status	Run, Ethernet, PoE

Digital Input/Counter
Channels	16
Type	Dry Contact
Sink/Source (NPN/PNP)	Source
ON Voltage Level	Close to GND
OFF Voltage Level	Open
Max. Counts	4,294,967,295 (32-bit)
Frequency	500 Hz
Min. Pulse Width	1 ms
Effective Distance	500m (max.)

Ethernet
Ports	1 x RJ-45, 10/100 Base-TX
PoE	Yes
Access Control	ID, Password and IP Filter
Protocol	Modbus TCP, Modbus UDP

Power
Reverse Polarity Protection	Yes
Consumption	2.8 W (max.)
Powered from PoE	IEEE 802.3af
Powered from Terminal Block	+12 ~ +48 VDC

Mechanical
Dimensions (mm)	72 x 123 x 35 (W x L x H)

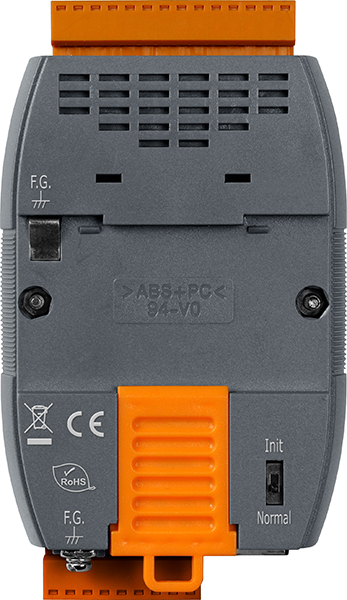

Installation	DIN-Rail mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing
