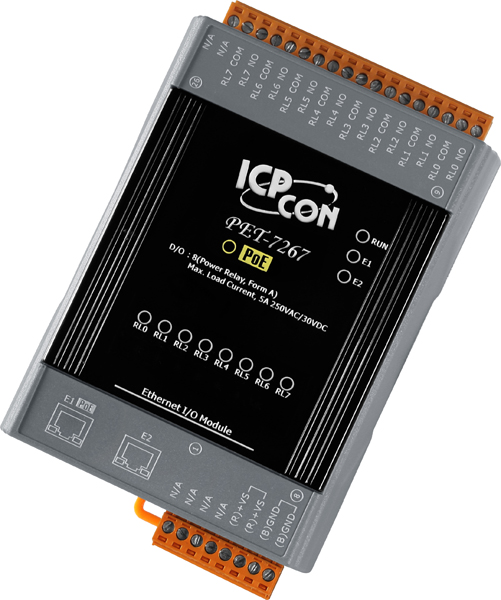

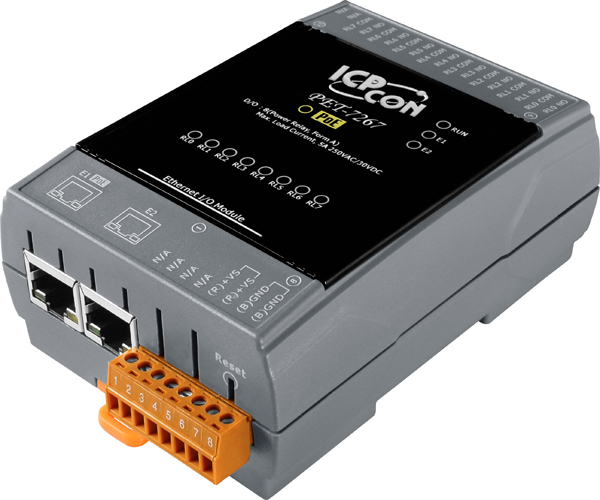

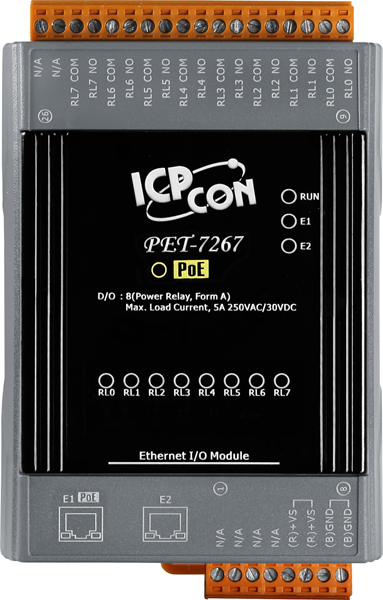

PET-7267

$499.00

PoE Ethernet I/O Module with 2-port, 10/100 Base-TX, Switch Ports. Power Relay (Digital Output). DIN-Rail Mountable, Communicable over Modbus TCP. Support for both Modbus TCP and Modbus UDP Protocols. Built-in Web Server. Has operating temperature range of -30°C ~ +75°C (-22°F ~ +167°F)

Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 18 | Enter ZIP below for shipping options

QTY

Add to Quote

Buy With One Click

Share On:
Categories:	PoE Modbus TCP Based Dual Ethernet Port I/O Modules \| PoE Ethernet Modbus TCP I/O Modules
Review:	Write your review
Resources:	User's Manual Quick Start Data Sheet Firmware MiniOS7 Image MiniOS7 Utility Register Tables NAPOPC_ST DA Server CE FCC EZ Data Logger Software

Built-in Web Server
Web HMI
Support for both Modbus TCP and Modbus UDP Protocols
Communication Security
2-port Ethernet Switch for Daisy-Chain Topology
Dual Watchdog
Wide Operating Temperature Range: -30 ~ +75°C
I/O Pair Connection
Built-in I/O
- Power Relay: 8 Channels

The ET-7067/PET-7067/ET-7267/PET-7267 provides 8 form A electromechanical relays. It features optical isolation for 3000 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation. The power-on value and safe value of relay are programmable. It can safely be used in applications where hazardous voltages are present.

Specifications

Software
Built-In Web Server	Yes
Web HMI	Yes
I/O Pair Connection	Yes
Communication
Ethernet Port	2 x RJ-45, 10/100 Base-TX, Swtich Ports
PoE	Yes
Protocol	Modbus/TCP, Modbus/UDP
Security	ID, Password and IP Filter
Dual Watchdog	Yes, Module (0.8 second), Communication (Programmable)
LED Indicators
for System Running	Yes
for Ethernet Link/Act	Yes
for DI/DO status	Yes
for PoE Power	Yes
2-Way Isolation
Ethernet
I/O	3000 VDC
EMS Protection
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
EFT (IEC 61000-4-4)	±4 kV for Power Line
Surge (IEC 61000-4-5)	±2 kV for Power Line
Power Requirements
Reverse Polarity Protection	Yes
Powered from Terminal Block	12 ~ 48 VDC
Powered from PoE	Yes, IEEE 802.3af, Class1
Consumption	4.1 W
Mechanical
Dimensions (W x L x H)	76 mm x 120 mm x 38 mm
Installation	DIN-Rail or Wall mounting
Environmental
Operating Temperature	-30°C ~ +75°C (-13°F ~ +167°F)
Storage Temperature	-30°C ~ +80°C (-22°F ~ +176°F)
Humidity	10 ~ 90% RH, Non-condensing

I/O Specifications

Power Relay
Channels	8
Type	Power Relay, Form A (SPST N.O.)
Contact Rating	5 A @ 250 VAC/24 VDC (Resistive Load)
Min. Contact Load	10 mA @ 5 V
Operate Time	10 ms (max.)
Release Time	5 ms (max.)
Mechanical Endurance	2 107 ops.
Electrical Endurance	105 ops.
Power-on Value	Yes, Programmable
Safe Value	Yes, Programmable
