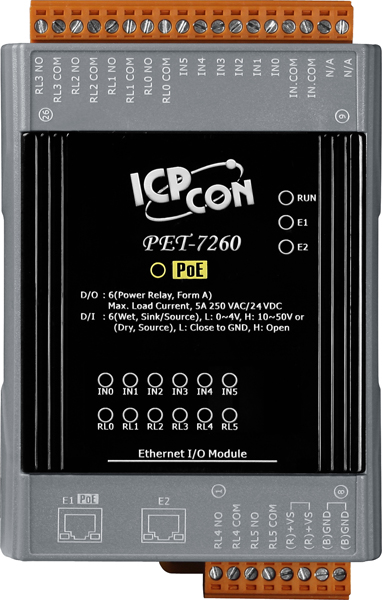

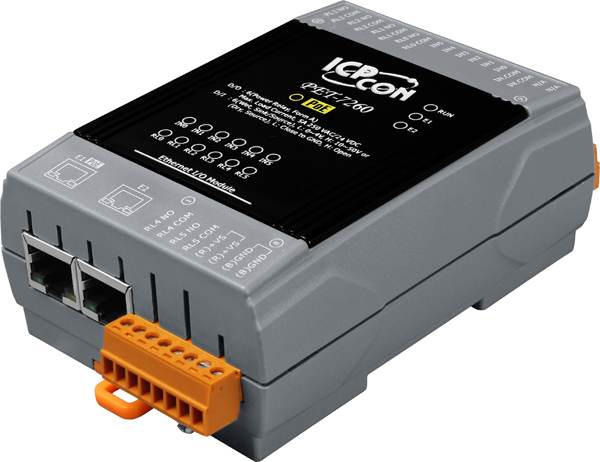

The ET-7060/PET-7060/ET-7260/PET-7260 provides 6 wet contact digital input channels and 6 form A electromechanical relays. It features optical isolation for 3000 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation. Each input channel can be used as a 32-bit counter. The power-on value and safe value of relay are programmable.
Note: When inductive loads are connected to the relays, a large counter electromotive force may occur when the relay actuates because of the energy stored in the load. These flyback voltages can severely damage the relay contacts and greatly shorten the relay life. Limit these flyback voltages at your inductive load by installing a flyback diode for DC loads or a metal oxide varistor for AC loads.
| Software | |
| Built-In Web Server | Yes |
| Web HMI | Yes |
| I/O Pair Connection | Yes |
| Communication | |
| Ethernet Port | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| Protocol | Modbus/TCP, Modbus/UDP |
| Security | ID, Password and IP Filter |
| Dual Watchdog | Yes, Module (0.8 second), Communication (Programmable) |
| LED Indicators | |
| for System Running | Yes |
| for Ethernet Link/Act | Yes |
| for DI/DO status | Yes |
| for PoE Power | Yes |
| 2-Way Isolation | |
| Ethernet | - |
| I/O | 3000 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| Power Requirements | |
| Reverse Polarity Protection | Yes |
| Powered from Terminal Block | 12 ~ 48 VDC |
| Powered from PoE | Yes, IEEE 802.3af, Class |
| Consumption | 3.8 W |
| Mechanical | |
| Dimensions (W x L x H) | 76 mm x 120 mm x 38 mm |
| Installation | DIN-Rail or Wall mounting |
| Environmental | |
| Operating Temperature | -30°C ~ +75°C (-13°F ~ +167°F) |
| Storage Temperature | -30°C ~ +80°C (-22°F ~ +176°F) |
| Humidity | 10 ~ 90% RH, Non-condensing |
| Digital Input/Counter | ||
| Channels | 6 | |
| Contact | Wet Contact | |
| Sink/Source (NPN/PNP) | Sink/Source | |
| On Voltage Level | +10 VDC ~ +50 VDC | |
| Off Voltage Level | +4 VDC Max. | |
| Input Impedance | 10 k | |
| Counters | Max. Count | 4,294,967,285 (32 bits) |
| Max. Input Frequency | 100 Hz | |
| Min. Pulse Width | 5 ms | |
| Overvoltage Protection | +70 VDC | |
| Power Relay | ||
| Channels | 6 | |
| Type | Power Relay, Form A (SPST N.O.) | |
| Contact Rating | 5 A @ 250 VAC/24 VDC (Resistive Load) | |
| Min. Contact Load | 10 mA @ 5 V | |
| Operate Time | 10 ms (max.) | |
| Release Time | 5 ms (max.) | |
| Mechanical Endurance | 2 107 ops. | |
| Electrical Endurance | 105 ops. | |
| Power-on Value | Yes, Programmable | |
| Safe Value | Yes, Programmable | |
