PCI-P16R16

$0.00

16-channel Isolated Digital Input and 16-channel Relay Output. PCI-P16R16 is phased out and replaced by PCI-P16R16U.

Product Unavailable

Share On:
Categories:	PCI Digital I/O Boards \| PCI Digital I/O
Review:	Write your review
Resources:	User's Manual Hardware Data Sheet DLL & OCX SDK Win 95/98/ME DLL & OCX SDK Win 2000XP/2003/Vista Demo Programs PCI-P16R16 LabVIEW CE Certification UniDAQ Development Kit

The PCI-P16R16 has officially been phased out and will no longer be available. It has now been replaced by PCI-P16R16U.

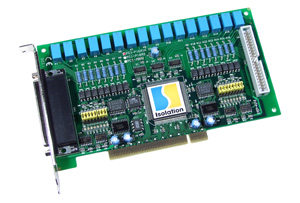

PIN Assignment The PCI-P16R16 provides 16 isolated digital inputs and 16 channel Relay outputs. The PCI-P16R16 is equipped with two 37-pin D-Sub connector. It can be installed in a 5V PCI slot and can support “Plug & Play".

16 Relay output channels
16 Optical isolated digital input channels
DC signal input with filter or Without filter
AC Signal input with filter
Software:
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- LabVIEW toolkit for Windows
- Toolkit for OCX 95/98
- Toolkit for OCX NT
- Toolkit for OCX 2000/XP
- Driver for LINUX
- Driver for DasyLab

Specifications

Relay Outputs:
- Contact Rating : 0.5A/120Vac,DC/1A 30Vdc
- Contact arrangement : Output channel 0 -3 are form C
- Output channel 4-7 are Form A
- Operating time : 5 mSec
- Release time : 10 mSec
- Expected life > 100,000 times (at 30V ,1A)
Optical Isolated Digital Input:
- Type : None- polarized Optical Isolation (PC-814)
- Input voltage : AC/DC 5-24V or Vac (50- 1khz)
- Operating Temperature: 0 to 60 deg/C
- Input impedance : 1.2 Kohm
- Response time : 20u Sec (Without filter) / 22m Sec ( With filter)
- Isolated : 500v channel-channel / channel - Ground
General Environment:
- Operation Temperature : 0° to 50°C
- Storage Temperature: 0°C to 70°C
- Humidity : 0 to 90% none-condensing
- Dimensions : 180mm x 105mm
