OEE Implementation for Improved Manufacturing Performance
Introduction
Overall Equipment Effectiveness (OEE) is a key manufacturing metric that measures productivity based on three factors: Availability, Performance, and Quality. By tracking these metrics, manufacturers can identify inefficiencies, reduce downtime, improve production performance, and lower operating costs.
Many organizations consider OEE the gold standard for evaluating manufacturing efficiency because it provides actionable insights through data collection, analysis, and continuous improvement.
OEE Formula:
OEE = Availability × Performance × Quality
ICP DAS USA helps manufacturers collect and analyze production data, making it easier to implement OEE strategies and drive operational excellence.
OEE and IIoT for Smarter Machine Management
In manufacturing, OEE is often viewed as a measure of effective machine management. Since energy consumption is a major operating cost, it is essential to monitor equipment runtime and actual power usage to understand and improve production efficiency.
Modern industrial equipment has evolved from simple data recording to connected systems that support real-time monitoring, data logging, and instant alerts. As a result, Industrial Internet of Things (IIoT) technologies have become valuable tools for collecting production data, optimizing OEE, and improving operational performance.
OEE provides a clear view of equipment effectiveness by helping manufacturers measure availability, performance, and quality. This enables managers to identify inefficiencies, maximize equipment utilization, and achieve higher productivity.
To maintain efficient operations, factory managers must monitor equipment health, operator performance, production processes, and key operational metrics. Manually tracking this information can be costly and time-consuming, making automated data collection and IIoT-enabled monitoring increasingly important.
ICP DAS USA offers solutions that simplify data acquisition, equipment monitoring, and OEE implementation, helping manufacturers gain actionable insights and improve overall operational efficiency.
System Architecture

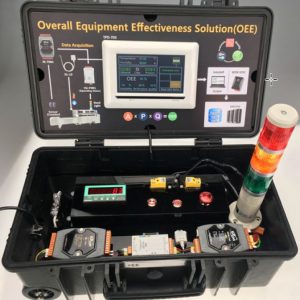

The following section introduces the architecture, operation, and components of the OEE Demo Kit.
ICP DAS USA OEE Solution Overview

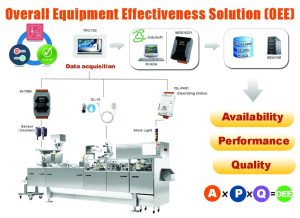

The ICP DAS USA OEE solution combines sensors, data acquisition modules, controllers, communication devices, and human-machine interfaces (HMIs) to provide comprehensive machine monitoring and performance analysis.
The solution collects key production data such as machine status, operating cycles, frequency, motion, temperature, and humidity. Modules such as the M-7084 support digital signal acquisition for counting and machine performance monitoring, while temperature and environmental monitoring modules help track critical operating conditions.
To reduce downtime and improve productivity, the tSL-P4R1 module monitors machine indicator lights without affecting equipment operation. By tracking machine status in real time, manufacturers can quickly identify operating conditions, improve equipment utilization, and support production goals. The module can also integrate with SCADA and MES systems for centralized monitoring and management.
The WISE-5231 controller simplifies logic programming and automation, reducing development time and implementation costs.
All collected data can be displayed through a centralized monitoring platform using InduSoft software, providing real-time visibility into equipment performance, production status, and OEE metrics. ICP DAS USA enables manufacturers to gather actionable insights, improve operational efficiency, and support continuous production optimization.
Field Applications of OEE Solutions
Device Monitoring System
The ICP DAS USA device monitoring solution leverages flexible WISE controllers and I/O modules to simplify equipment monitoring and automation. In the event of an abnormal condition, the system can automatically send email or SMS alerts to designated personnel and trigger IP camera image capture for immediate verification. This helps reduce response time, improve safety, and lower system development costs.
Factory Management System
Effective production management is essential for increasing output, reducing inventory, and improving profitability. ICP DAS USA WISE controllers and I/O modules enable flexible machine-to-machine communication, standalone control logic, and seamless integration with plant management systems. This allows manufacturers to streamline operations while reducing implementation and maintenance costs.
Real-World OEE Applications
OEE provides valuable production management insights by collecting and analyzing machine performance data. For example, monitoring a machine’s three-color status light can provide availability data, while sensors can collect information such as production counts, motor speed, energy consumption, and equipment temperature.
By combining this data with machine access records, production information, and operational images, managers gain a comprehensive view of equipment performance. These insights support data-driven decisions that improve productivity and overall equipment effectiveness.
Equipment Maintenance and Traceability
Modern manufacturing relies heavily on automated equipment, making maintenance tracking and accountability increasingly important. Traditional paper-based maintenance records can be difficult to access, making it challenging to verify repairs, identify replaced components, or determine the cause of equipment issues.
ICP DAS USA solutions can integrate access control systems and TPD-703 touch panels to record machine usage, operator activity, maintenance history, and equipment runtime. Maintenance personnel can enter service records directly into the system, providing managers with real-time visibility into machine status and maintenance activities.
Production recipes, operating procedures, and manufacturing instructions can also be displayed directly on operator interfaces, helping reduce setup errors and improve operational consistency.
To further improve responsiveness, the WISE-5231 controller can send instant notifications to mobile devices when equipment alarms or abnormal conditions occur, enabling faster corrective action.
All production data, maintenance records, process information, reports, and alarm events can be integrated into a centralized SCADA platform using InduSoft software. Through integration with MES and ERP systems, manufacturers can analyze critical operational data, improve product quality, increase equipment reliability, and support continuous operational improvement.
