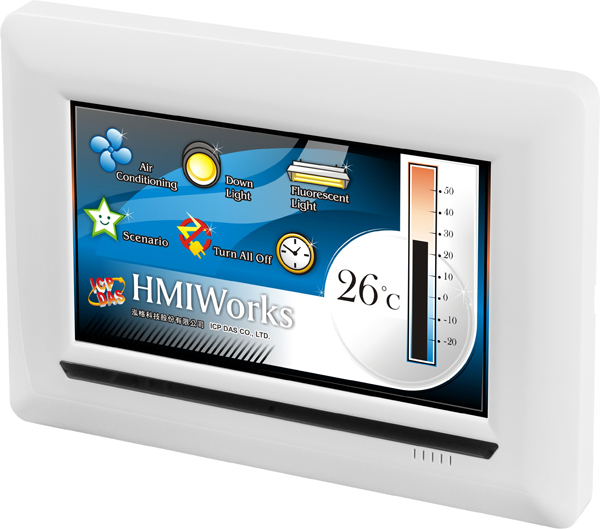

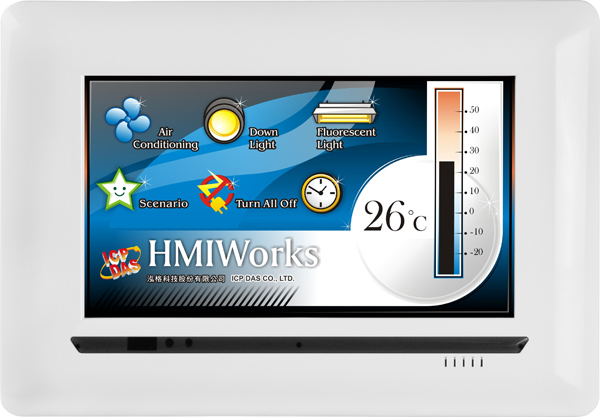

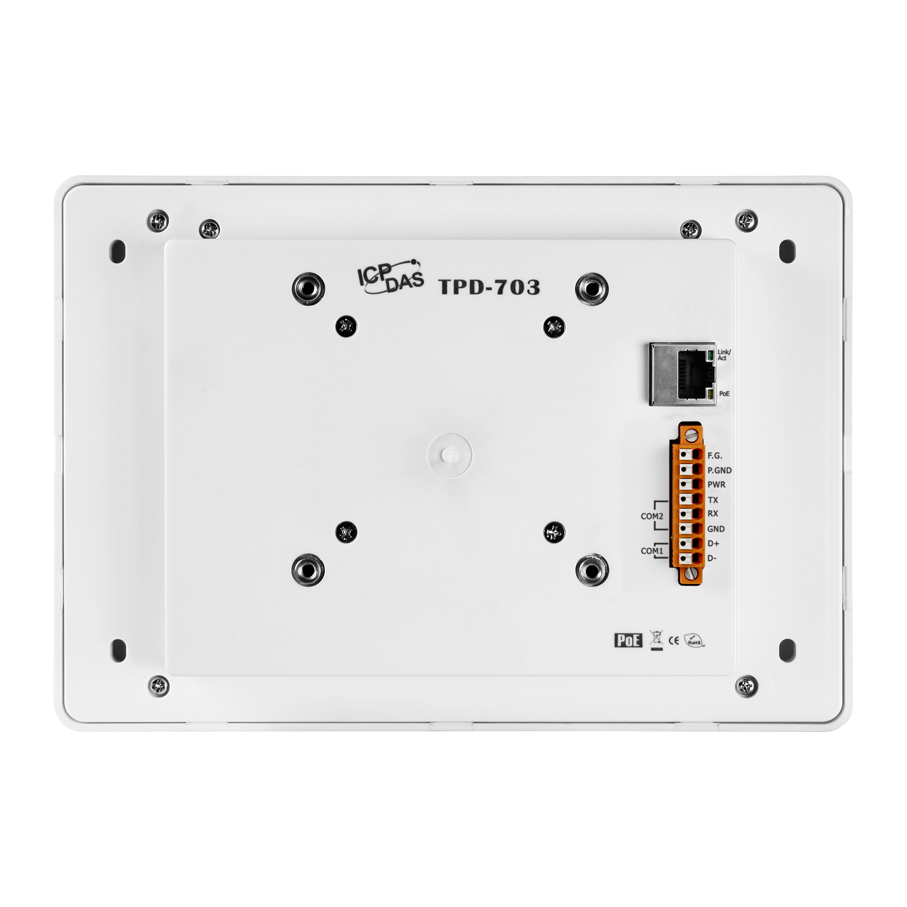

The 7" inch TPD-703 model is a tiny touch HMI device and designed for building and home automation. It is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. It can be integrated with a user-defined picture interface. It is the best choice for switching from a mechanical to an intelligent control pads.
The TPD-703 communicates over RS-485, RS-232, Ethernet, Modbus RTU, and Modbus TCP protocols. It has 16MB SDRAM and 16 MB of Flash Memory.
It is programmable in C Language and Ladder Logic with free HMIworks Development Software
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
|---|---|
| Type | LCD 7 TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 250 cd/m2 |
| Touch Panel | 4-wire, analog resistive; Light Transmission: 80% |
| LED Indicators | |
|---|---|
| Status | 2 LED |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 1, 10/100 Base-TX |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 (including Self-Tuner) ; Non-isolation 1 x RS-232 (3-pin) ; Non-isolation |
| Power | |
|---|---|
| Consumption | 3.6 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 217 mm x 153 mm x 33 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
|---|---|
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
