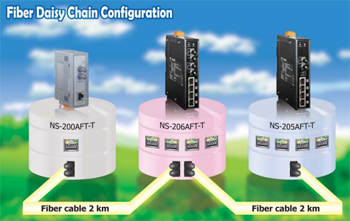

The NS-206AFT-T is a 4-port unmanaged Ethernet with 2 fiber port switch. Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 2 km) transmissions. The NS-206AFT-T provides a wide 12 to 48 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs.
| Models | NS-206F | NSM-206F | NS-206AF | NSM-206AF |
| PoE | – | |||
| Input Voltage Rangeg | +10 ~ 30 VDC | +12 ~ 48 VDC | ||
| Operating Temperature | 0 °C ~ +70 °C | -30 °C ~ +75 °C | ||
| Casing | Plastic | Metal (IP20) | Plastic | Metal (IP30) |
| Installation | DIN-Rail Mounting | DIN-Rail Mounting or Wall Mounting | DIN-Rail Mounting | |
| Dimensions (W x H x D) (Unit: mm) | 64 x 110 x 98 | 72.5 x 110 x 102 | 31 x 157 x 113 | 25 x 168 x 119 |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact |
| LED Indicators | |
|---|---|
| Status | PWR1, PWR2, PWR_Fault, Link/Act, 10/100M |
| Ethernet | |
|---|---|
| Ports | 4 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x |
| Processing Type | Store & forward |
| MAC Table | 2048 |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| Fiber | |
|---|---|
| Ports | 2 x 100 Base-FX, ST connector |
| Mode | Multi-Mode |
| Fiber Cable | 50/125, 62.5/125 or 100/140 m |
| Distance | 2 km, (62.5/125 m recommended) for full duplex |
| Wavelength | 1300 or 1310nm |
| TX Output | -20 dBm Min. -14 dBm Max. |
| RX Sensitivity | -32 dBm |
| RX Overload | -8 dBm |
| Budget | 12 dBm |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +48 VDC (Redundant input) |
| Redundant Power Inputs | Yes |
| Consumption | 0.14 A @ 24 VDC |
| Alarm Output | Yes, Relay 2 A @ 30 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 123 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
