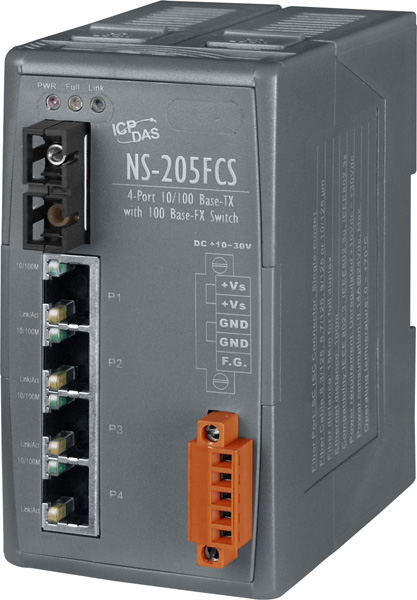

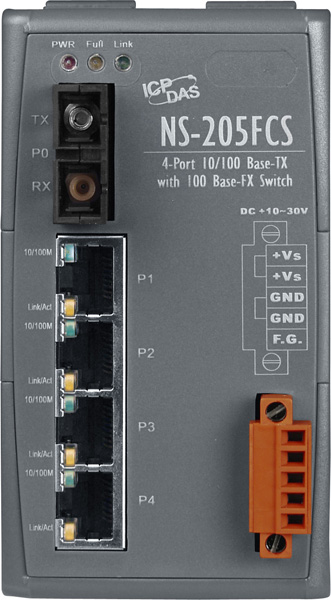

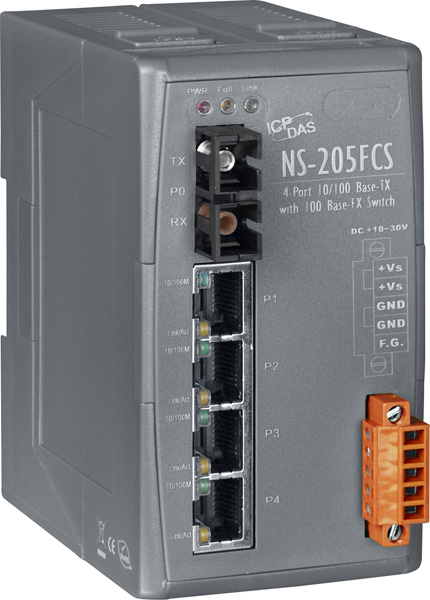

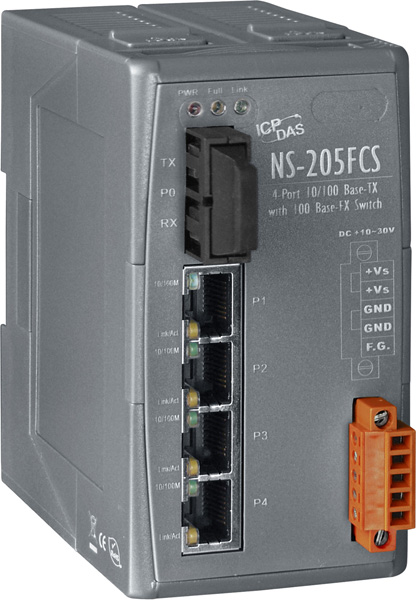

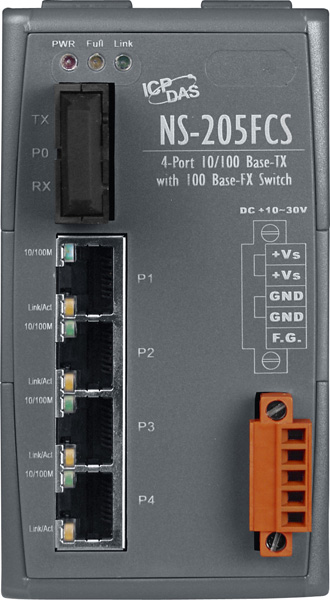

The NS-205F/NSM-205F is a 4-port unmanaged Ethernet with 1 fiber port switch. Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 15 km) transmissions.
The NS-205F/NSM-205F provides a wide 10 to 30 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs.
| Technology | ||
| Standards | IEEE 802.3, 802.3u, 802.3x | |
| Processing Type | Store & forward; wire speed switching | |
| MAC Addresses | 1024 | |
| Memory Bandwidth | 3.2 Gbps | |
| Frame Buffer Memory | 512 Kbit | |
| Flow Control | IEEE 802.3x flow control, back pressure flow control | |
| Ethernet Interface | ||
| RJ-45 Ports | 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection | |
| LED Indicators | Power, Link/Act, 10/100M | |
| Ethernet Isolation | 1500 Vrms 1 minute | |
| Fiber Interface (100 Base-FX; SC/ST type) | ||
| Single-Mode | NS-205FCS/NSM-205FCS | Single-mode fiber cables: 8.3/125, 8.7/125, 9/125 or 10/125 μm Distance: 15 km, (9/125 μm recommended) for full duplex Wavelength: 1300 or 1310nm Min. TX Output: -15 dBm Max. TX Output: -8 dBm Max. RX Sensitivity: -36 dBm |
| Power Input | ||
| Input Voltage Range | +10 ~ +30 VDC (Redundant input) | |
| Power Consumption | 0.14 A @ 24 VDC | |
| Protection | Power reverse polarity protection | |
| +/-4 kV ESD Protection | Yes | |
| Connector | 5-Pin Removable Terminal Block | |
| Mechanical | ||
| Casing | Plastic (Flammability UL 94V-0) | |
| Dimensions (W x L x H) | 64 mm x 98 mm x 110 mm | |
| Installation | DIN-Rail Mounting | |
| Environment | ||
| Operating Temperature | 0 °C ~ +70 °C | |
| Storage Temperature | -20 °C ~ +85 °C | |
| Ambient Relative Humidity | 10% ~ 90% RH, non-condensing | |
