NS-205

$0.00

The NS-205 has officially been phased out and will no longer be available. the suggested replacement is NS-205A

Unmanaged 5-Port Industrial Ethernet Switch with Din Rail Mount. Each port supports 10/100 Mbps speed auto negotiation and plug-and-play. Durable for harsh industrial e...

Product Unavailable

Share On:
Categories:	Switches and Converters with Plastic Cases \| Industrial Ring Ethernet/Fiber Switch \| Industrial Unmanaged Ethernet Switches
Review:	Write your review
Resources:	Quick Start User's Manual Data Sheet Quick Start Guide Pin Assignment Block Diagram Dimensions CE Certification FCC Certification MTBF Report

NS-205 size

NS-205 is light and compact, din rail mountable and can easily fit in tight spaces in control panels. With the width of 1.3 inch (33 mm), it can save users a lot of space.

The NS-205 is a compact, robust and durable 5-port industrial Ethernet switch. It has 5 Ethernet switching ports that support 10/100 Base-TX, with 10/100M auto-negotiation and an auto MDI/MDI-X function. It is very easy to use with plug-and-play. Through its 5 ports it can connect with 5 workstations and automatically switch the transmission speed (10 Mbps or 100 Mbps) for corresponding connections. The flow control mechanism is also negotiated. There is activity/link/data rate LED indicators for each port, which makes it easy to trouble-shoot. Port connectors are shielded RJ-45. It contains "soft start" function with overload protection and high-low voltage protection.

Compact and Durable to Work in Harsh Industrial Environments

The din rail mount allows it to be mounted on a din rail in control panels. The NS-205 is designed to operate in a wide range of temperatures to work in harsh industrial environment.

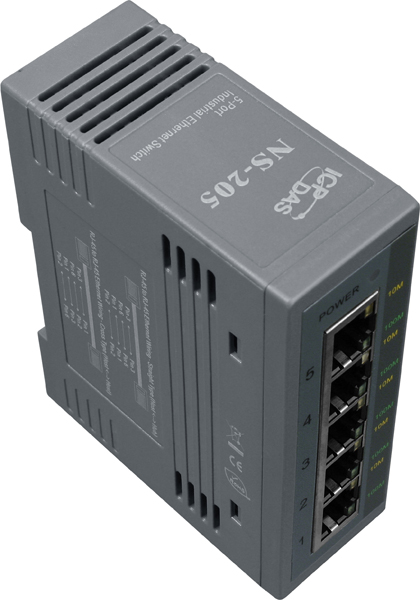

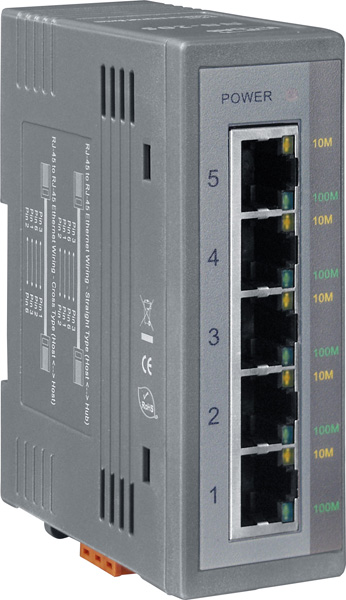

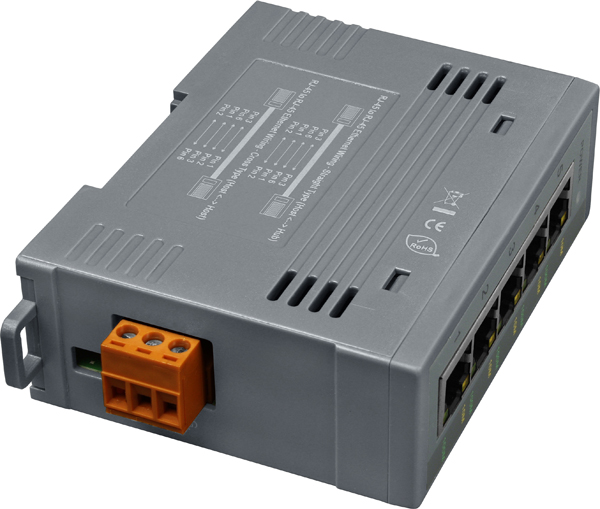

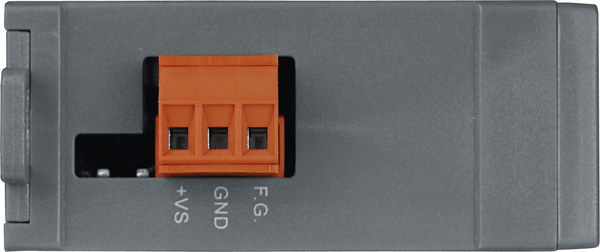

NS-205 Appearance

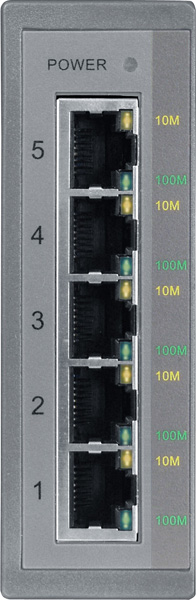

5 Unmanaged 10/100Mbps Fast Ethernet Ports
EASY-TO-USE: Automatic MDI/MDI-X Crossover for Plug-and-Play
FAST SPEED: Each Port Supports 10/100 Mbps Speed Auto Negotiation
Store-and-Forward Architecture for Fast Processing
ROBUST AND DURABLE: Can Be Used in Extreme Industrial Environments.
Supports a Wide Range of Operating Temperatures from -40C ~ +75C (-40F ~ 167F).
EASY TO MOUNT: Din Rail Mountable - Can Easily Fit in Control Panels.
MORE PROTECTION: Reverse Polarity Protection, Frame Ground for EMS Protection
Full Duplex IEEE 802.3x and Half Duplex Back Pressure Flow Control
Integrated Look-up Engine with Dedicated 1024 Unicast MAC Addresses.
VERY LOW FAILURE RATE: Mean Time Between Failures (MTBF) = 438,000 hours (Temperature is 25 °)
Supports +10 ~ +30 VDC Power Input

Specifications

Technology
Standards	IEEE802.3, 802.3u, 802.3x
Processing Type	Store & forward, wire speed switching
MAC Addresses	1024
Memory Bandwidth	1.4 Gbps
Frame Buffer Memory	256 Kbit
Flow Control	IEEE802.3x flow control, back pressure flow control
Interface
RJ45 ports	5 ports 10/100 BaseTX auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
LED Indicators	Power, 10/100M, Link/Act
Ethernet Isolation	1500 Vrms 1 minute
Frame Ground for EMS Protection	Yes
Cable	Ethernet : 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm
Cable	Fast Ethernet : 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm
Power
Input Voltage Range	+10 ~ +30VDC (Non-isolation)
Power consumption	0.1A@24VDC, +/- 5% arrowed with 10M Full duplex.
Power consumption	0.09A@24VDC, +/- 5% arrowed with 100M Full duplex
Protection	Power reverse polarity protection
Frame Ground for EMS Protection	Yes
Connection	3-Pin Removable Terminal Block
Mechanical
Casing	Plastic
Flammability	UL 94V-0
Dimensions	33 mm x 78 mm x 107 mm (W x L x H)
Installation	DIN-Rail
Environmental
Operating Temperature	-40 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Ambient Relative Humidity	10% to 90% HR, non-condensing
