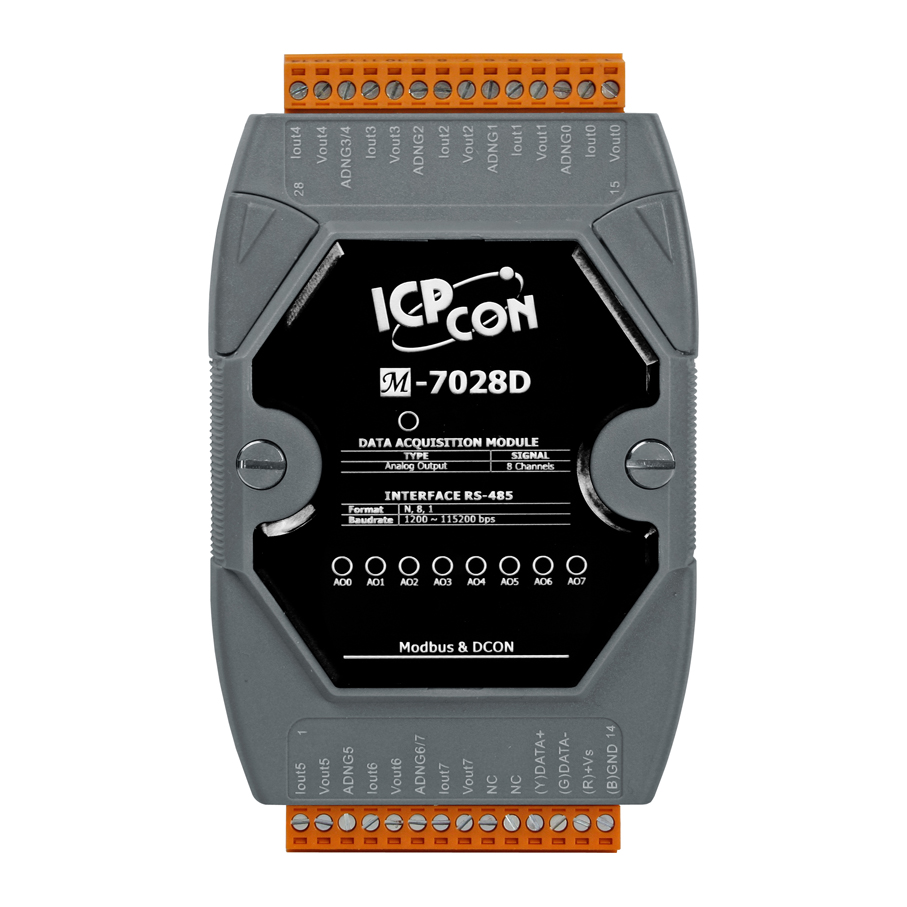

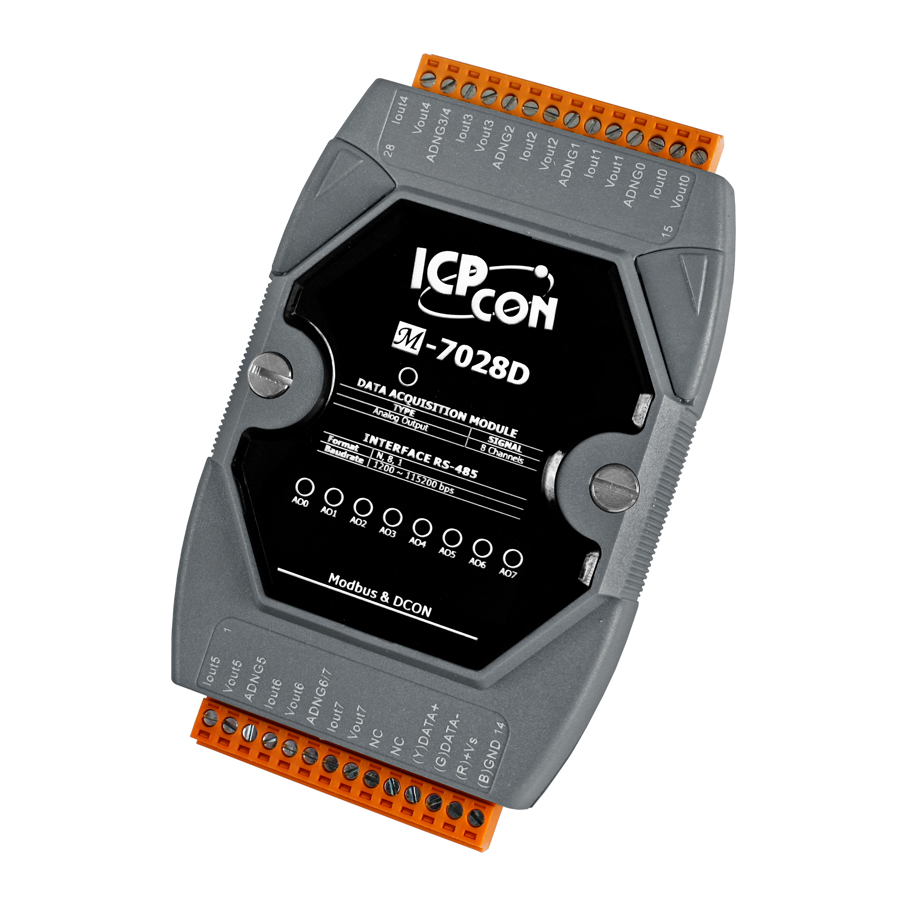

The M-7028D is a 12-bit, 8-channel analog output module. It provides a programmable output range on all analog output channels (0 ~ 5 V, +/-5 V, 0 ~ 10 V, +/-10 V, +4 ~ +20 mA or 0 ~ +20 mA). Each analog output channel can be configured for an individual range and the module also features per-channel open wire detection for the +4 ~ +20 mA output, together with 8 kV ESD Protection as well as 3000 VDC intra-module isolation. Options for configuring power-on and safe values are also included.
Communication |
|
Interface |
RS-485 |
Bias Resistor |
Yes |
Format |
(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
Baud Rate |
1200 to 115200 bps |
Protocol |
Modbus RTU, DCON |
| Dual Watchdog | Yes, Module (1.6 Seconds), Communication (Programmable) |
LED Indicators/Display |
|
| System LED Indicator | Yes, 1 LED as Power/Communication Indicator |
| I/O LED Indicators | 8 LEDs as Analog Output and Fault Indicators |
| 7-Segment LED Display | - |
Isolation |
|
| Intra-module Isolation, Field-to-Logic | 3000 VDC |
EMS Protection |
|
| ESD (IEC 61000-4-2) | ±8 kV Contact for each Terminal |
| RS Immunity (IEC 61000-4-3) | 3 V/m, 80 MHz ~ 1 GHz |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| Surge (IEC 61000-4-5) | - |
Power |
|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 4.8 W |
Mechanical |
|
Dimensions (L x W x H) |
123 mm x 72 mm x 35 mm |
Installation |
DIN-Rail or Wall Mounting |
Environment |
|
Operating Temperature |
-25 to +75°C |
Storage Temperature |
-40 to +85°C |
Ambient Relative Humidity |
10 to 95% RH, Non-condensing |
Analog Output |
|
Channels |
8 |
Current Output Wiring |
Source |
Range |
0 ~+5 VDC ±5 VDC 0 ~ +10 VDC ±10 VDC 0 ~ +20 mA +4 ~ +20 mA |
Resolution |
12-bit |
Accuracy |
±0.1% of FSR |
DA Output Response Time |
10 ms per channel |
Programmable Output Slope |
Voltage: 0.0625 ~ 512 V/Second Current: 0.125 ~ 1024 mA/Second |
Current Output Capacity |
500 Ω |
Voltage Output Capability |
10 V @ 10 mA |
Open Wire Detection |
Yes, for the 4 ~ 20 mA output |
Power-on Value |
Yes, Programmable |
Safe Value |
Yes, Programmable |
