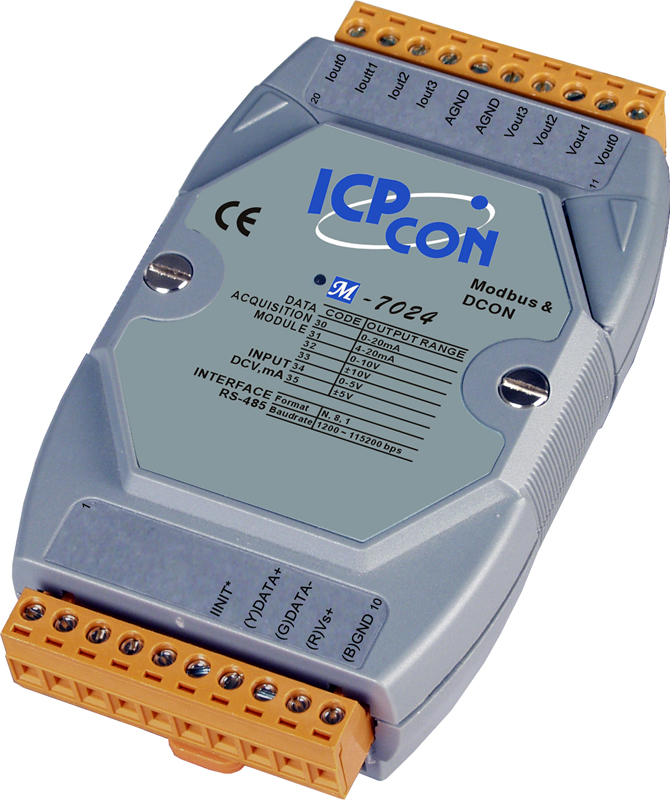

Main Product Image
Main Product Image

M-7024

$529.00
4 Channel, 14-bit Analog Output, Voltage Output, Current Output Data Acquisition Module, communicable over Modbus RTU and RS-485. Supports operating temperatures between -25 to 75°C.
Availability: IN STOCK | FASTEST DELIVERY : Saturday, Sep 26 | Enter ZIP below for shipping options
Get Shipping Options
-
+
Buy with one Click
Share On:
Categories: M-7000 Modbus RTU Remote Data Acquisition Modules | M-7000 Modbus RTU Remote Data Acquisition Modules
Review: Write your review
Resources:

The M-7000 series is a family of network data acquisition and control modules that support Modbus RTU. They can be remotely controlled using a set of commands called DCON protocol. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/ HMI software and PLCs.




  • Communication Interface: RS-485
  • Din Rail Mount
  • Analog Output Channels: 4
  • Indication LED Light: for power and communication
  • 14-bit resolution
  • Photo-isolation: 3750 Vrms
  • Output type: mA, V
  • Output range:
    • 0 ~ 20mA, 4 ~ 20mA, 0 ~ 5V, ±5V, 0 ~ 10V, ±10V
  • Accuracy: ± 0.1% of FSR
  • Resolution: ± 0.02% of FSR
  • Zero drift:
    • Voltage output: ± 30uV/°C
    • Current output: ± 0.2uA/°C
  • Span temperature Coefficient: ± 20ppm/ °C
  • Programmable output slope:
    • 0.125 to 2048 mA/second
    • 0.0625 to 1024 V/second
  • Current load resistor:
    • External +24V power: 1050 Ohms
  • Power Supply:
    • Input: +10 to +30Vdc

    • Consumption : 2.4W



Specifications

CPU Module
Watchdog TimerModule, Communication (Programmable)
Isolation
Intra-module Isolation3000 VDC
EMS Protection
ESD (IEC 61000-4-2)±2 kV Contact for Each Terminal
LED Indicators
Status1 x Power and Communication
Analog Output
Channels4
TypeVoltage
Current
RangeVoltage: 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V
Current: 0 ~ 20 mA, 4 ~ 20 mA
Resolution14-bit
Accuracy±0.1% of FSR
DA Output Response Time10 ms
Power-on ValueProgrammable
Safe ValueProgrammable
COM Ports
Ports1 x RS-485
Baud Rate1200 ~ 115200 bps
Data Format(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
ProtocolModbus RTU, DCON
Power
Reverse Polarity ProtectionYes
Input Range+10 ~ +30 VDC
Consumption2.4 W
Mechanical
Dimensions (mm)72 x 123 x 35 (W x L x H)
InstallationDIN-Rail Mounting
Environment
Operating Temperature-25 ~ +75 °C
Storage Temperature-40 ~ +85 °C
Humidity10 ~ 95% RH, Non-condensing
