M-7004-G

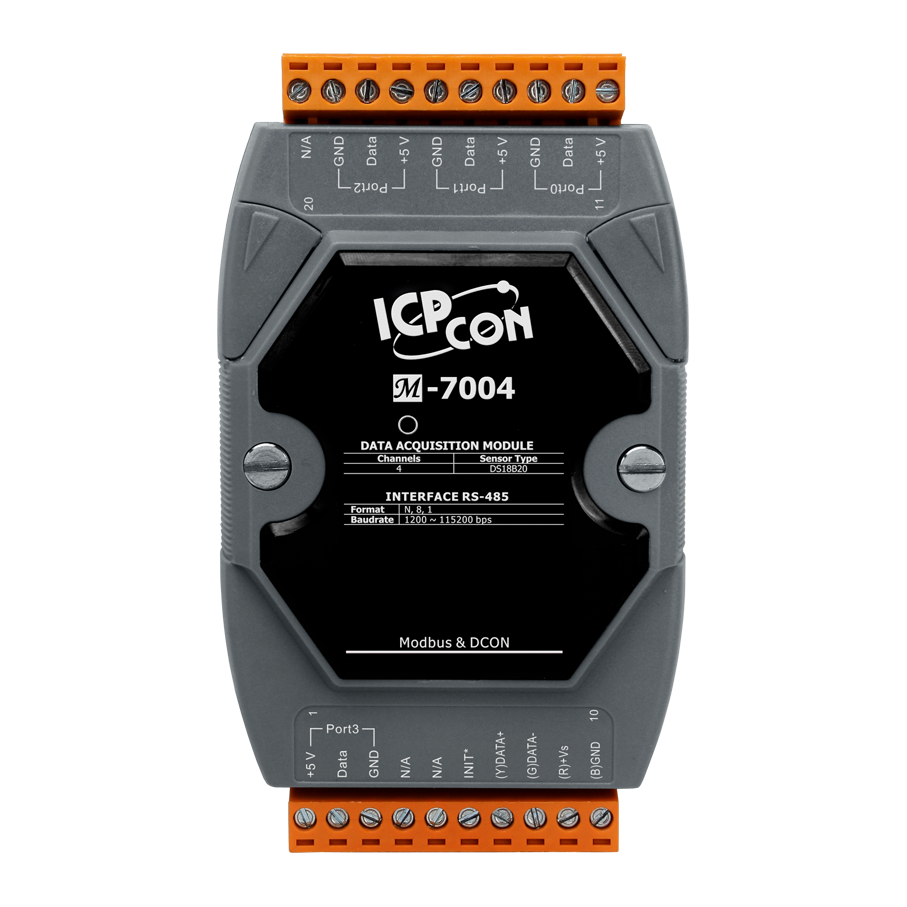

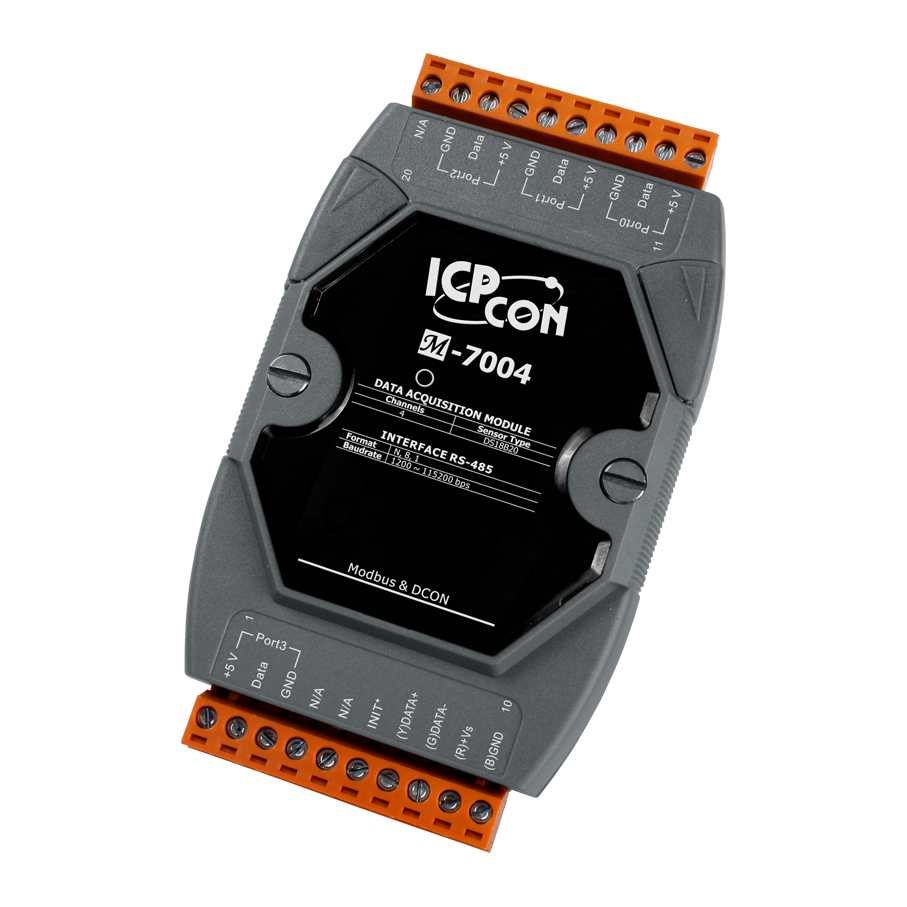

ICP DAS USA’s M-7004-G is a digital temperature sensor module is equipped with four ports for 2- or 3 wire DS8B20 digital temperature sensor input. The DS18B20 temperature sensor has a high accuracy of ±0.5°C when measuring temperatures between -10 and + 85°C, with a total measurement range of between -55 and +125°C. Up to 20 DS18B20 sensors can be connected to each port on the M-7004-G module when daisy-chained with a maximum wiring distance of 100 meters. The M-7004-G module is fully RoHS compliant, and features 4 kV ESD protection as well as 3000 VDC intra-module isolation.

• 4-Port DS18B20 Sensor Input Module
• 2/3-wire DS18B20 Wire Connection
• Max 20 Sensors per Port
• Max. Distance of 100 m per Port when using Daisy-Chain Wiring
• Measures Temperatures from -55 to +125°C
• ±0.5°C Accuracy from -10 to +85°C
• 4 kV ESD Protection
• 3000 VDC Intra-module Isolation, Field to Logic
• RoHS Compliant
• Wide Operating Temperature Range: -25 to +75°C

Applications

• Temperature Measurement
• Environment Monitoring
• Tunnel Monitoring
• Building Monitoring
