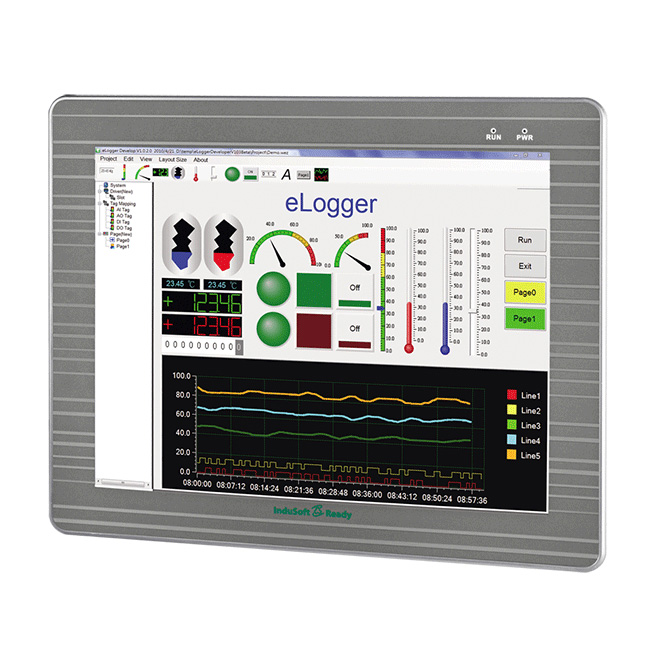

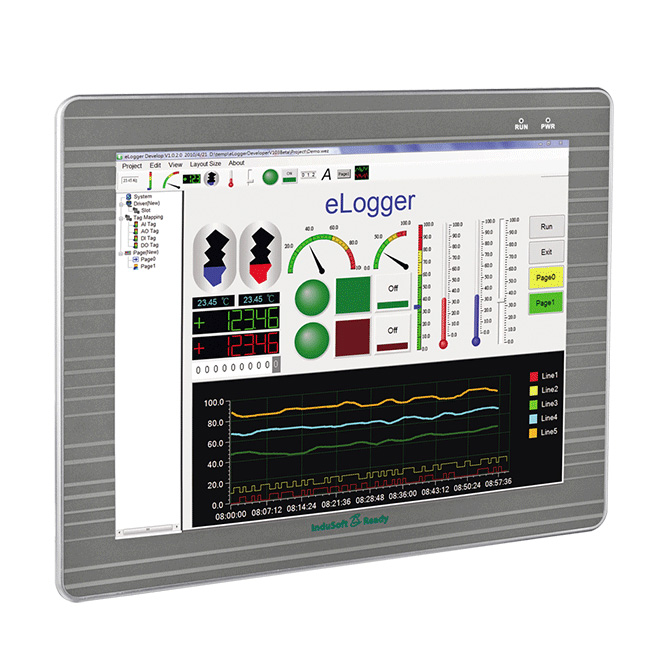

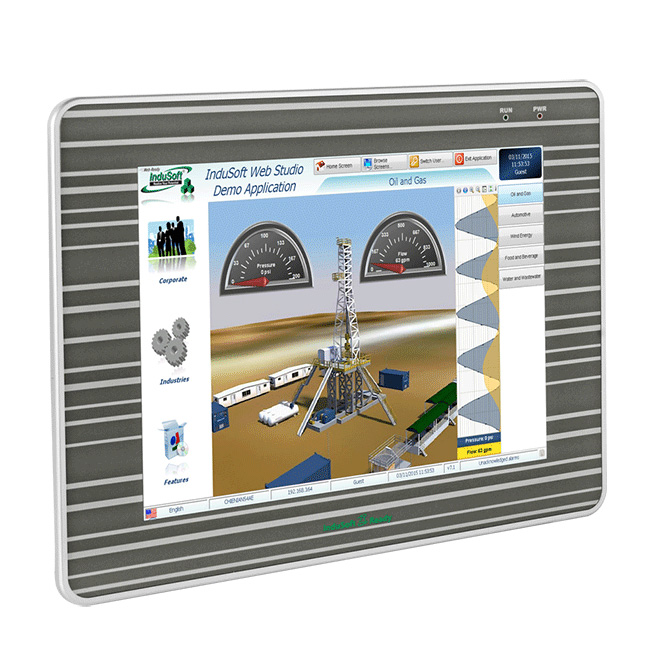

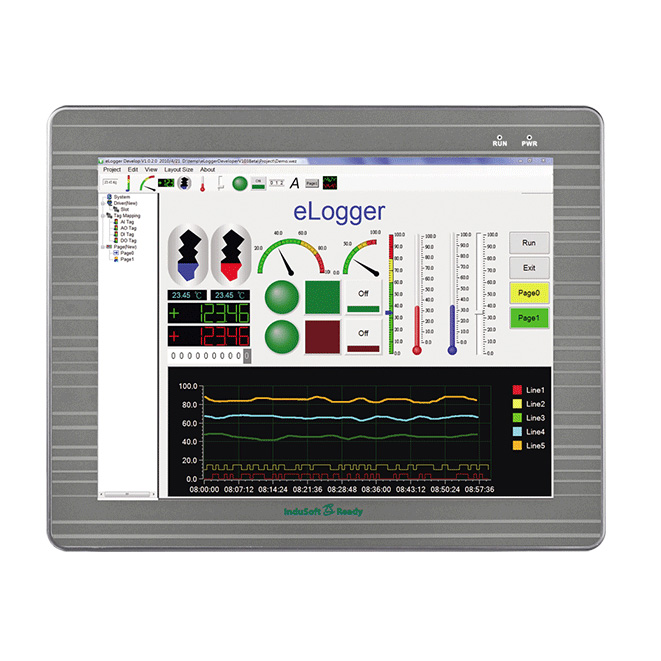

The latest InduSoft PAC of ICP DAS, based on WinCE 7.0, is the IWS PAC series. Combining a TFT LCD touch screen with a RISC-based CPU board, it creates a ruggedized flat panel computer ideal for a range of control and HMI applications. It offers several connectors, including as USB ports, RS-232 and RS-485, and gigabit Ethernet. On-board Flash memory contains a pre-installed copy of the operating system. Our Ethernet, RS-485, Wi-Fi, and ZigBee wireless I/O modules may all be used for remote I/O extension. The front panel, which is certified NEMA 4/IP6 5 and is intended for panel mount installation, is resistant to high dust, humidity, and sprayed water. The fanless design provides the best performance across a broad temperature range of -10°C to 60°C.
You can receive real-time online alarm messages, binary logs, and reports using InduSoft Web Studio. Data that you receive can work with any database of your choice. You can configure the IWS-2201-CE7 to work with InduSoft to have real-time data sent to your email inbox, printer, or smartphone.
Recipe / Report / Trend
Generate reports quickly and maintain solid workflow with time saving tools using InduSoft's recipe management program.
Driver / OPC
The installed InduSoft software contains over 240 native communication drivers designed for PLCs, bar code/2D/RFID readers, motion controllers, temperature controllers, and many other devices. These built-in drivers allow for connectivity to an OPC server. You can also custom make your own drivers.
Thin Clients
Remote access your devices as a webpage using Internet Explorer or InduSoft's Secure Viewer without installing additional software.
| Software | |
|---|---|
| OS | Microsoft Windows Embedded Compact 7 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .NET Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for Visual Studio.Net |
| Main Unit | |
|---|---|
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for software copy protection |
| System Memory | SDRAM 512 MB (DDR3) |
| Storage | Flash (SSD) 256 MB; SD socket with a 4 GB SDHC card(support up to 32 GB) |
| Non-Volatile Memory | MRAM 128 KB; EEPROM 16 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | 0.8 second |
| Display | |
|---|---|
| Size | 15 (4:3) |
| Backlight Life | 50000 |
| Brightness | 400 cd/m2 |
| Resolution | 1024 x 768 |
| Touch Panel | 5-wire, resistive type; light transmission: 80% |
| Contrast Ratio | 20.834027777778 |
| LED Indicators | |
|---|---|
| Status | 2 x Power and Run |
| HMI | |
|---|---|
| Rotary Switch | Yes (0 ~ 9) |
| Audio | |
|---|---|
| Jack | Earphone-out |

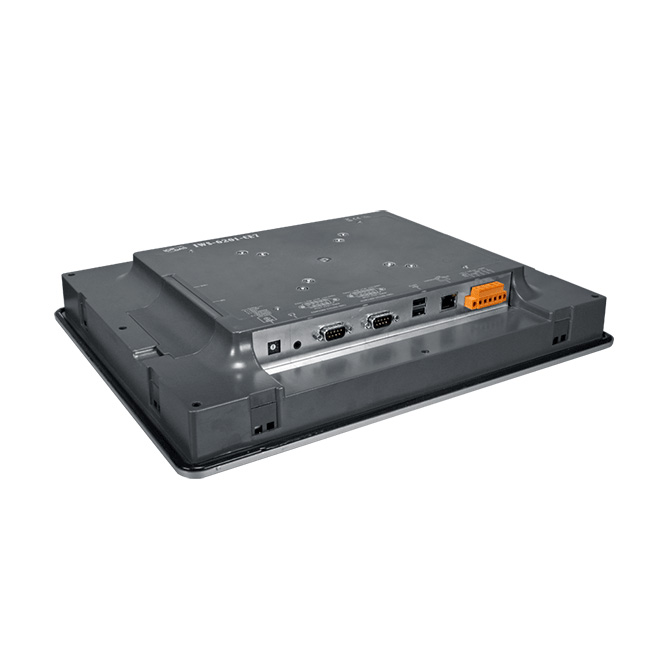

| Ethernet | |
|---|---|
| Ports | 1 x RJ-45 10/100/1000 Base-TX |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232/RS-485 DB9 connector (2500VDC Isolated); 1 x RS-232/RS-485 (2500VDC Isolated); 1 x RS-485 (2500VDC Isolated) |
| USB | |
|---|---|
| Connector | 2 x USB |
| Power | |
|---|---|
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 16 W |
| Powered from PoE | IEEE 802.3af |
| Mechanical | |
|---|---|
| Dimensions (mm) | 381 x 305 x 65 |
| Panel Cut-out (mm) | 362 x 286 ± 1 |

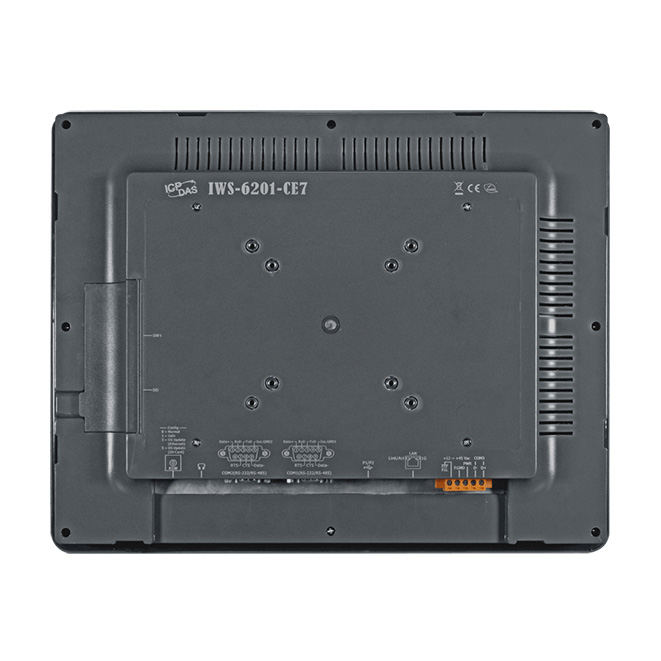

| Installation | Panel Mounting, VESA (75 x 75) Mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Environment | |
|---|---|
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
