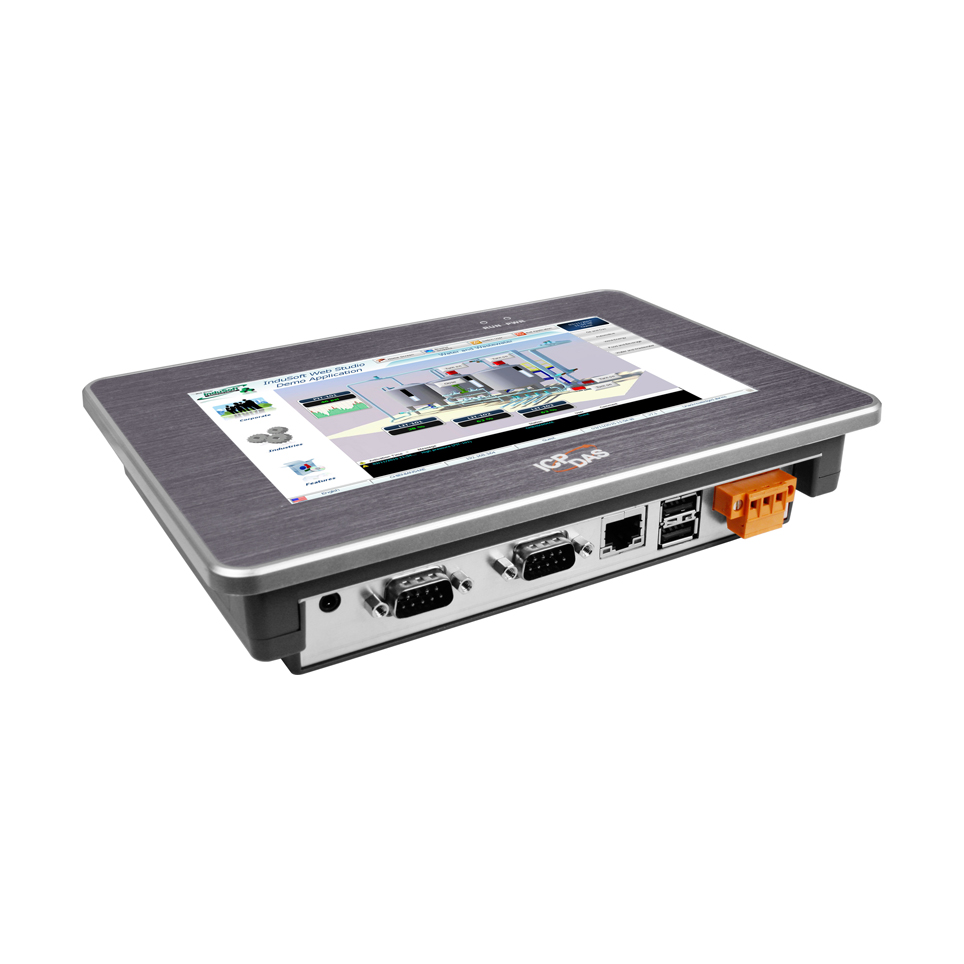

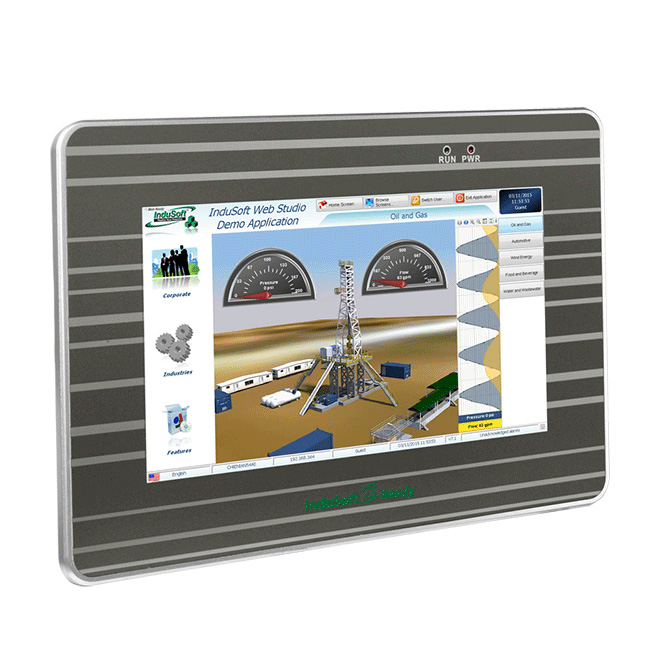

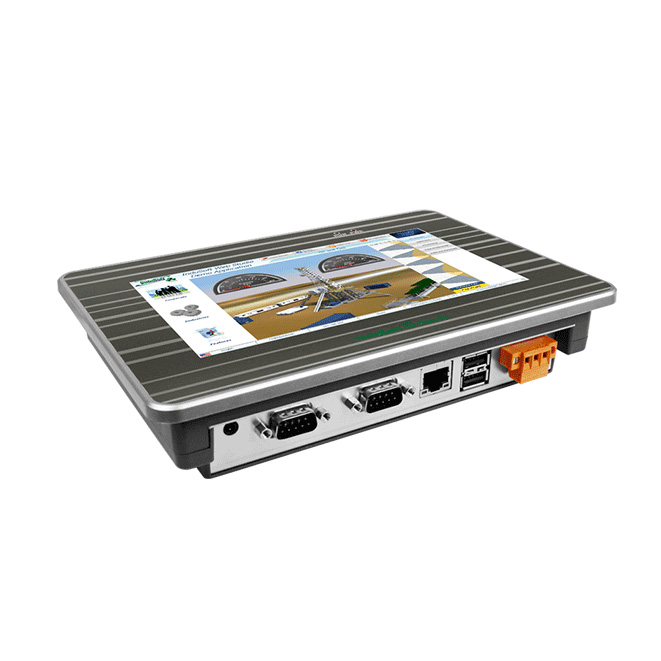

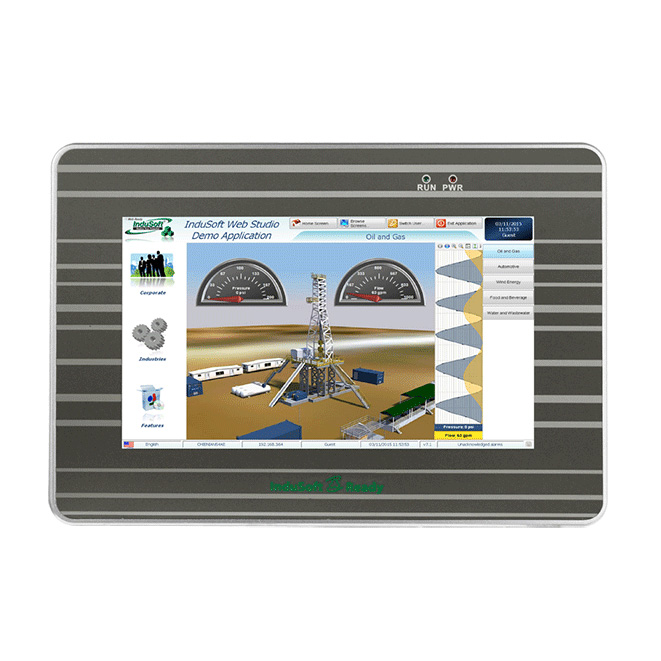

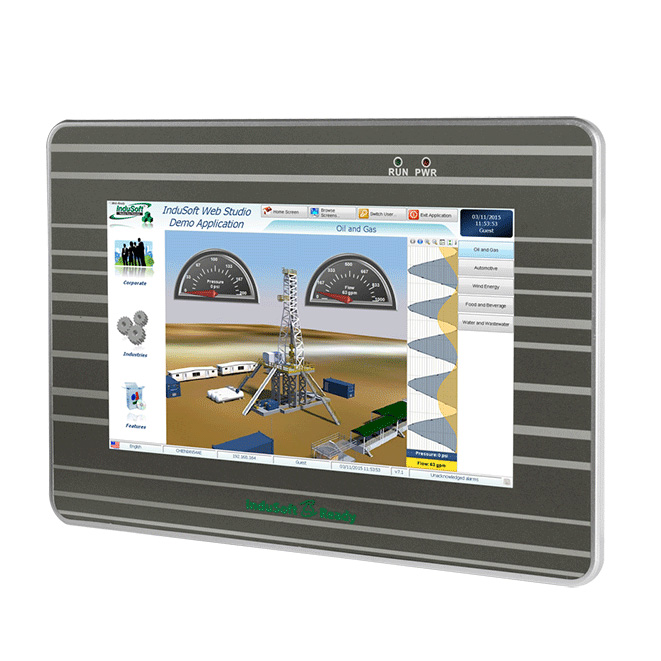

The IWS-2201-CE7 is a WinCE 7.0 based InduSoft PAC of ICP DAS USA. The device has a RISC-based CPU board, a rugged sized TFT LCD touch screen flat panel display well suited for a array of HMI applications. Interface connectivity types for this device includes Gigabit Ethernet, USB port, RS-232 and RS-485. The on-board flash memory has the operating system pre-installed. Expandable remote I/O, ethernet I/O, RS-485 I/O, Wi-FI, and Zigbee wirless I/O is also made available to work with the IWS-2201-CE7. The front panel is NEMA 4/IP65 rated, which mean this device can withstand sprayed water, extreme dust, and humidity. It's fanless design offer quiet operation and its casing and components can run under a wide -10°C ~ 60°C ambient temperature range.

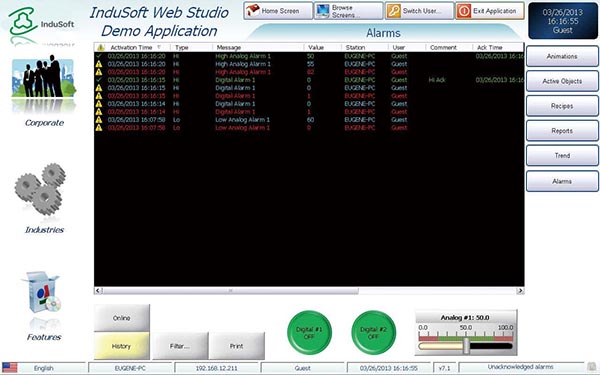

You can receive real-time online alarm messages, binary logs, and reports using InduSoft Web Studio. Data that you receive can work with any database of your choice. You can configure the IWS-2201-CE7 to work with InduSoft to have real-time data sent to your email inbox, printer, or smartphone.

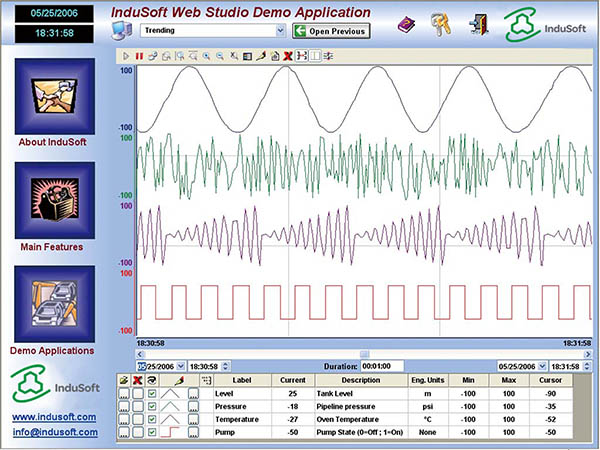

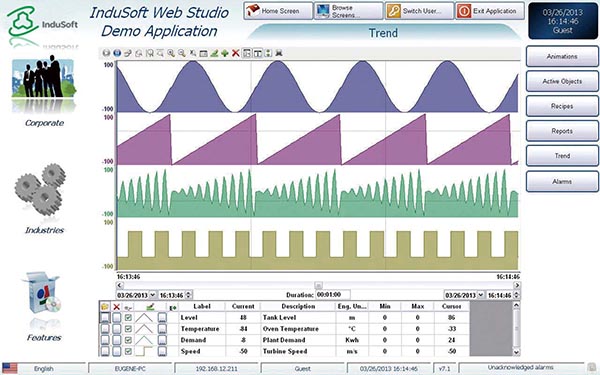

Recipe / Report / Trend

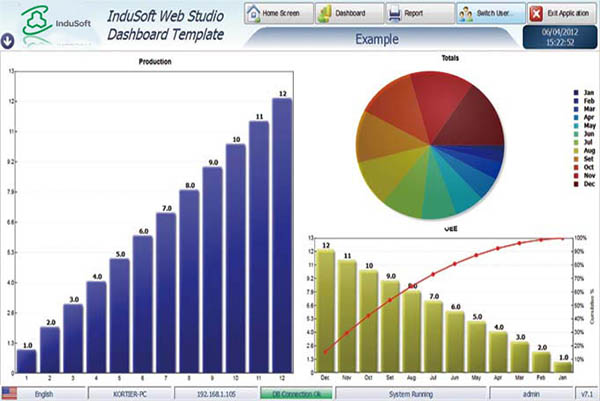

Generate reports quickly and maintain solid workflow with time saving tools using InduSoft's recipe management program.
Driver / OPC

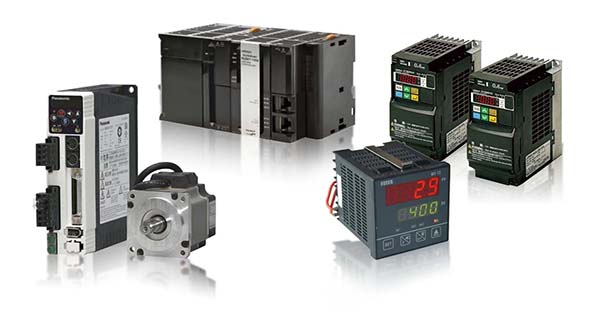

The installed InduSoft software contains over 240 native communication drivers designed for PLCs, bar code/2D/RFID readers, motion controllers, temperature controllers, and many other devices. These built-in drivers allow for connectivity to an OPC server. You can also custom make your own drivers.

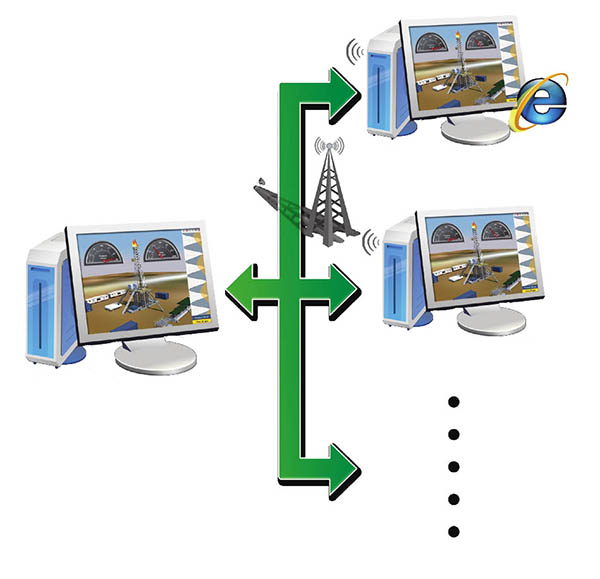

Thin Clients
Remote access your devices as a webpage using Internet Explorer or InduSoft's Secure Viewer without installing additional software.
LCD Display |
|
Size |
7” (16:9) |
Resolution |
800 x 480 |
Brightness (cd/m2) |
400 |
Contrast Ratio |
500:1 |
LED Backlight Life (hrs) |
20,000 |
LED Indicator |
4-wire, resistive type; light transmission: 80% |
CPU Module |
|
CPU |
AM3352 (720 Mhz) |
| SDRAM | 512 MB |
| MRAM | 128 KB |
| Flash | 256 MB |
| EEPROM | 16 KB |
| RTC (Real Time Clock) | Yes |
| Hardware Serial Number | Yes, 64-bit Hardware Serial Number |
| Rotary Switch | Yes (0~9) |
| Audio | Earphone-out |
Communication Interface |
|
Ethernet |
1 x RJ-45, 10/100/1000 BaseTX |
USB 2.0 (host) |
2 |
COM1 |
RS-232/485 (DB9 connector; 2500 VDC isolated) |
COM2 |
RS-232/485 (DB9 connector; 2500 VDC isolated) |
COM3 |
- |
Mechanical |
|
Dimensions (W x L x H) |
213 x 148 x 44 |
Installation |
Panel Mounting / VESA Mounting |
Ingress Protection |
Front Panel: NEMA 4 / IP65 |
Environment |
|
Operating Temperature |
-10°C ~ +60°C (+14°F ~ +140°F) |
Storage Temperature |
-20°C ~ +70°F (-4°F ~ +158°F) |
Ambient Relative Humidity |
10 ~ 90% RH (non-condensing) |
Power |
|
| Power from Terminal Block | Yes, 12~48 VDC |
Power PoE |
Yes, IEEE 802.3af |
Isolation |
- |
Consumption |
0.25A @ 24 VDC |
