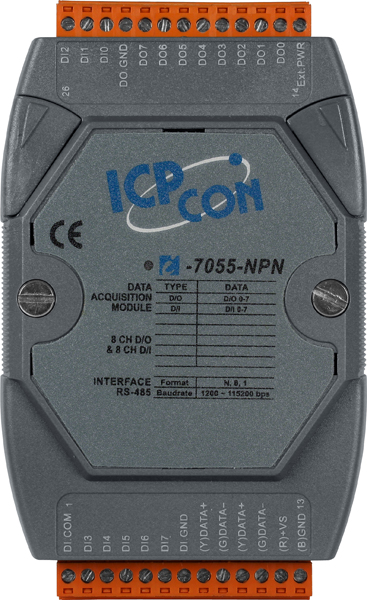

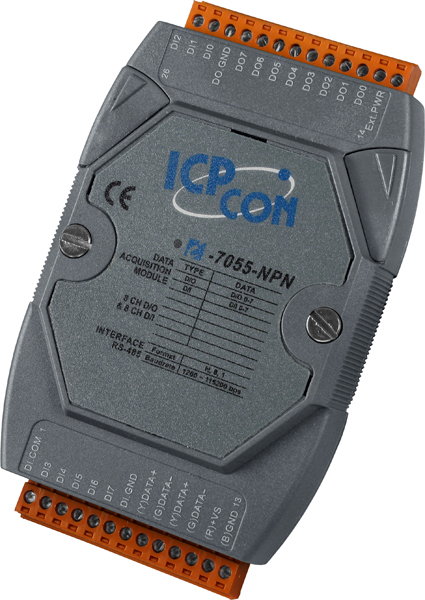

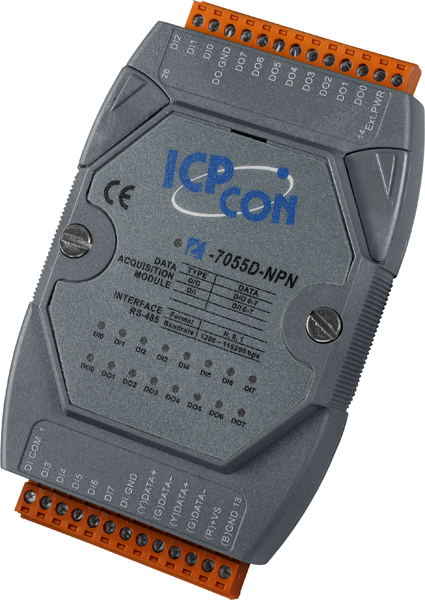

I-7055-NPN offers 8 channels for digital output and 8 channels for digital input. I-7055-NPN 8 channels for digital output each of which features Photo-couple isolation. supports sink type output with short-circuits protection. There are options for power on value and safe value for your consideration. Moreover, you can choose sink type or source type input by wire connections. All channels are able to be used as 16-bit counters. I-7055D-NPN has 8 LED indicators for DO channel status and 8 LED indicators for DI channel status. 4 kV ESD protection, 4 kV EFT protection, 3 kV Surge Protection for Power Input and 3750 VDC intra-module isolation are standard.
| Digital Input | |
| Channels | 8 |
| Input Type | Dry Contact: Source, Wet Contact: Sink or Source |
| Dry Contact Level | Off Voltage Level : Open |
| On Voltage Level : Close to GND | |
| Wet Contact Level | Off Voltage Level : +4V max. |
| On Voltage Level : +10 V ~ +50 V | |
| Input Impedance | 10 K Ohms, 0.5 W |
| Counters | channels : 8 |
| Max. Counts : 16-bit (65535) | |
| Max. Input Frequency : 100Hz | |
| Min. Pulse Width : 5ms | |
| Photo-Isolation | 3750 VDC |
| Digital Output | |
| Channels | 8, Sink(NPN) |
| Output Voltage | +3.5 ~ +50 V |
| Output Current | 700mA per channel, Direct drive power relay module |
| Intra-module Isolation, Field to Logic | 3750 VDC |
| Overvoltage Protection | 60 VDC |
| Overload Protection | Yes |
| Short-circuit and Overcurrent Protection | 1.4 A |
| Thermal Overload trip temperature | 150 °C |
| Interface | |
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200bps |
| LED Display | |
| 1 LED as Power/Communication indicator | |
| 8 LEDs as Digital Input indicators and 8 LEDs as Digital Output indicators (for I-7055D-NPN) | |
| Power | |
| Input Voltage Range | 10 ~ 30 VDC |
| Power Consumption | 1.2W (I-7055-NPN)/2.2W (I-7055D-NPN) |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal, ±8 kV Air for random point |
| EFT (IEC 61000-4-4) | ±4 kV for 16DO and Power ±2 kV for RS-485 port |
| Surge (IEC 61000-4-5) | ±3 kV for power liner |
| Environment | |
| Operating Temperature | -25 ~ 75°C |
| Storage Temperature | -40 ~ 85°C |
| Humidity | 10 ~ 95% RH, non-condensing |
