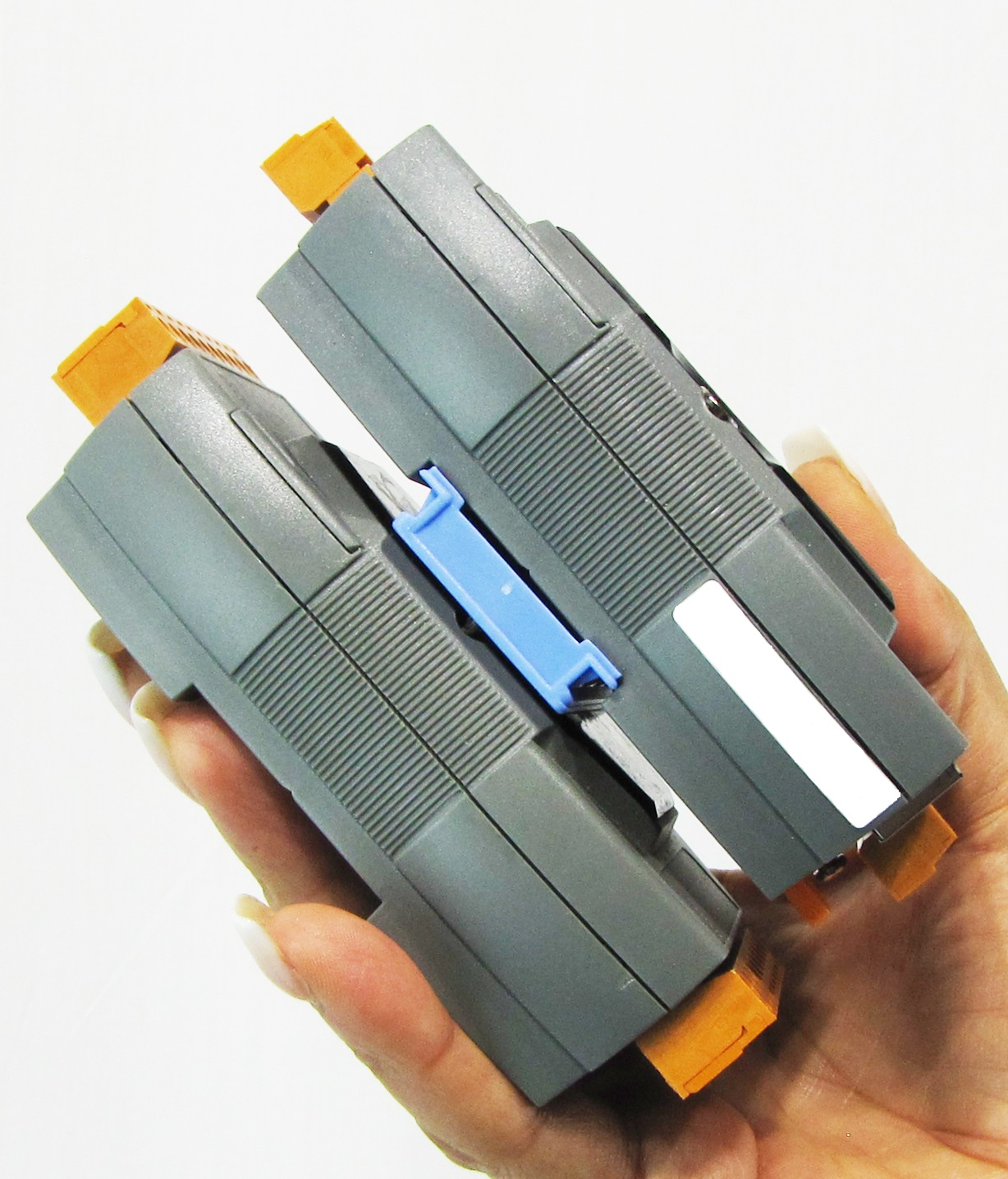

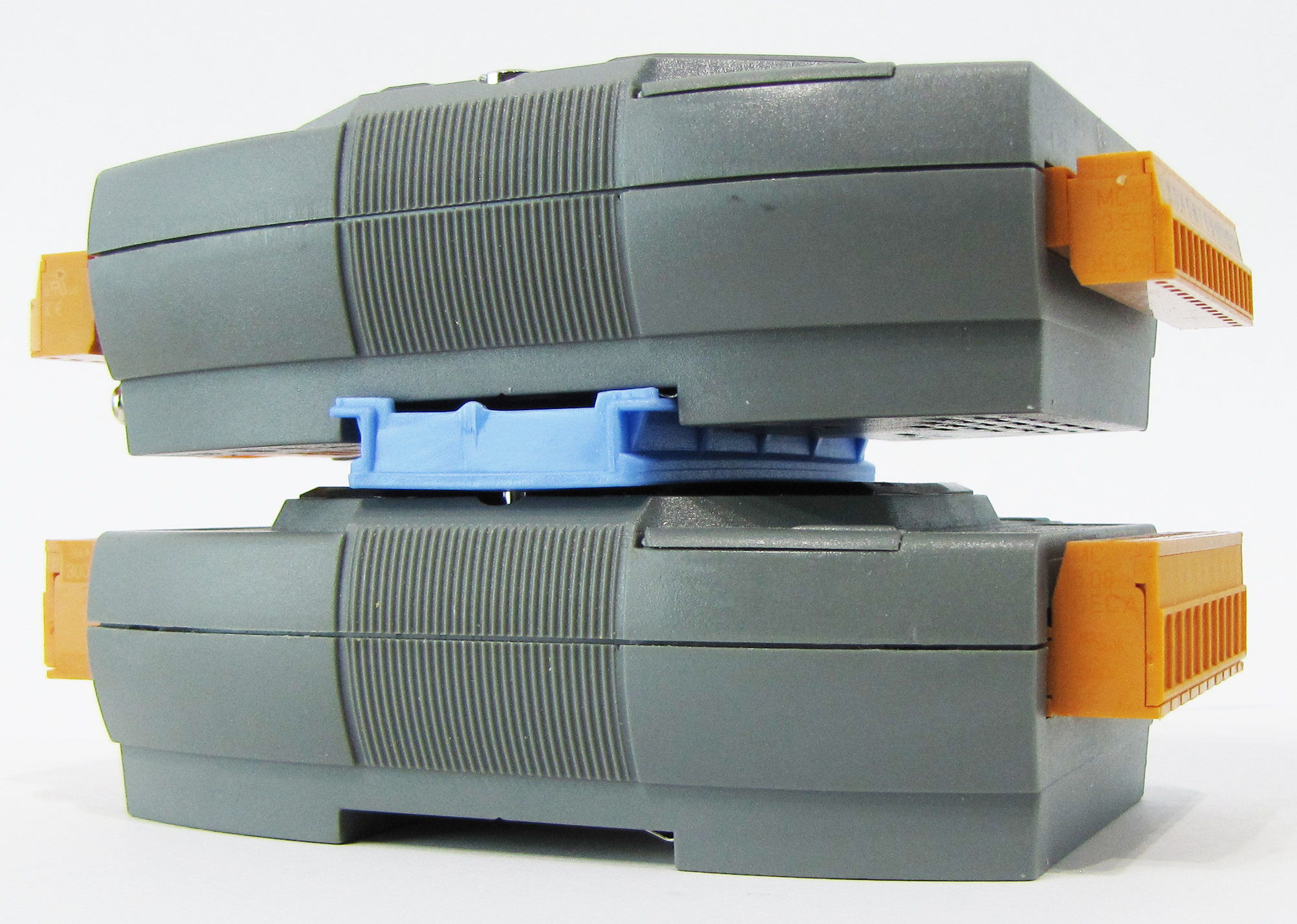

Main Product Image
Main Product Image

I-7055

$269.00
8 Channel Isolated Digital Input and 8 Channel Isolated Digital Output Data Acquisition Module communicable over RS-485. Supports operating temperatures between -25°C ~ +75°C (-13°F ~ +167°F).
Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: I-7000 Remote Data Acquisition Modules via RS-485 / DCON Protocol
Review: Write your review
Resources:

I-7055 is fine-tuned to provide signal conditioning, system monitoring, and safe value settings. I-7055 is a cost-effective solution for a wide range of valuable industrial control signals and systems. Our DCON Utility software helps users to configure and test I-7055 digital Input modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. The communication interface is modbus protocol via RS-485. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals.

Specifications

Digital Input

  • Channels: 8
  • Digital input status
    Dry contact:
    logic level 0: close to GND
    logic level 1: open
    Wet contact:
    logic level 0: +4V max
    logic level 1: +10V to +50V
    Effective distance for dry contact: 500m max
  • D/I can be used as counter channels: 8
    Input Frequency : 100Hz
    16-bit : 0~6,5535
  • Optical Isolation: 3750 Vdc


Digital Output

  • Channels: 8
  • External Voltage: 10 to 40V max
  • Output current: 650mA per channel
  • Short Circuit Protection
  • Direct drive power relay module


Power Supply

  • Input Power: 10~30Vdc
  • Consumption :
    1.2W for I-7055
    2.2W for I-7055D

Add a review

Your email address will not be published. Required fields are marked *

Overall ratings
Select Rating *
You must be signed in to review! Click here to sign in.
Related Products

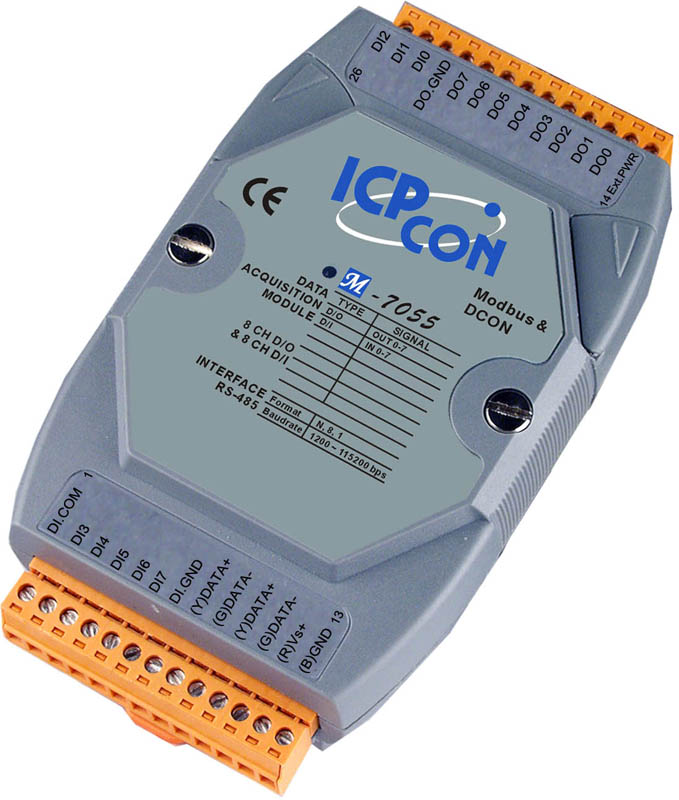

M-7055
