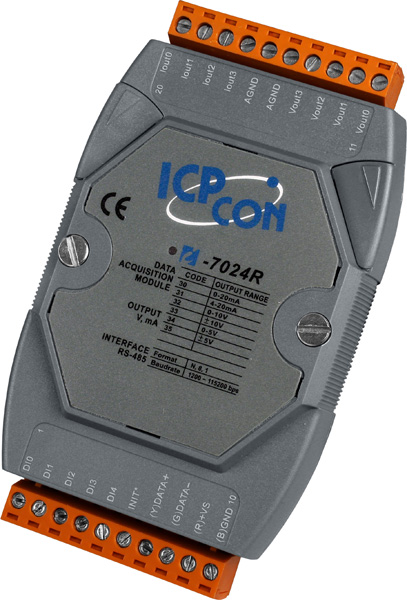

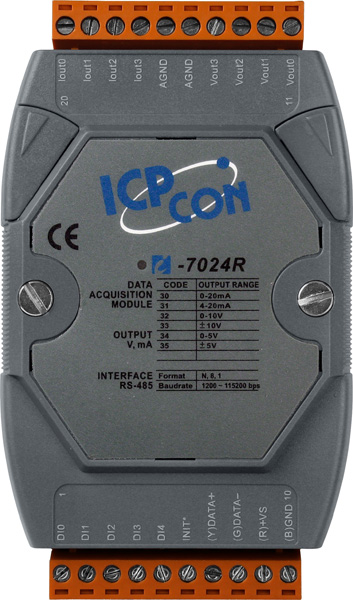

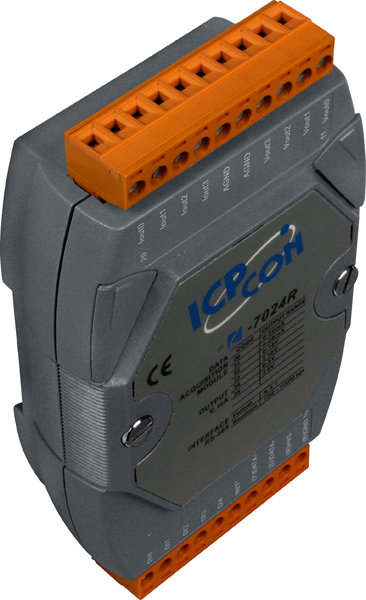

I-7024R is a RS-485 interface module and offers 4-channel analog outputs and 5-channel digital inputs. It provides programmable analaog outputs are 14-bit with 0 ~ 5 V, +/-5 V, 0~10 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA. And Its each terminal supports 4 kV ESD protection. And I-7024R improves better output quality in radiate environment.
| Analog Output | |
| Output Channels | 4 |
| Output Type | 0 ~ 20 mA, 4~20 mA, 0 ~ 5 V, +/-5 V, 0 ~ 10 V, +/-10 V |
| Resolution | 14-bit |
| Accuracy | +/-0.1% of FSR |
| Zero Drift | Voltage output : +/-30 μV/°C |
| Current output : +/-0.2 μA/°C | |
| DA Output Response Time | 10 ms per channel |
| Span Temperature Coefficient | +/-20 ppm/ °C |
| Programmable Output Slope | 0.125 to 2048 mA/second 0.0625 to 1024 V/second |
| Voltage Output Capability | 20 mA@10 V |
| Current Load Resistance | External +24 V power : 1050 Ohms |
| Intra-module Isolation, Field to Logic | 3000 VDC |
| Digital Input | |
| Input Channels | 5 |
| Input Type | Dry Contact, Source |
| Contact Level | Off Voltage Level : Open |
| On Voltage Level : Close to GND | |
| Counters | Max. Counts : 16-bit (65535) |
| Max. Input Frequency : 50 Hz | |
| Min. Pulse Width : 10 ms | |
| Interface | |
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200 bps |
| LED Display | |
| 1 LED as Power/Communication indicator | |
| Power | |
| Input | +10 ~ +30 VDC |
| Power Consumption | 3.2 W max. |
| EMS Protection | |
| ESD (IEC 61000-4-2) | 4 kV contact for each channel |
| RS (IEC 61000-4-3) | 3V/m |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
