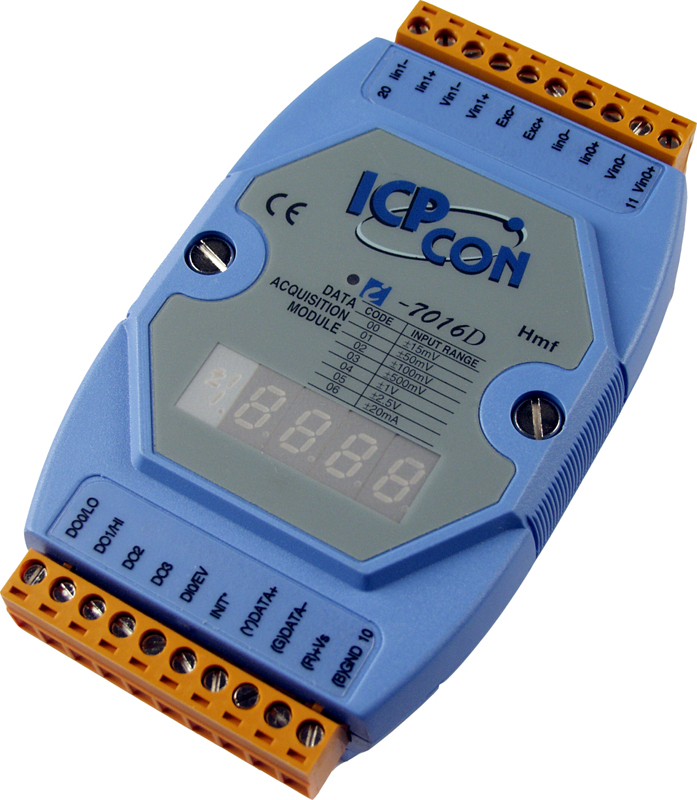

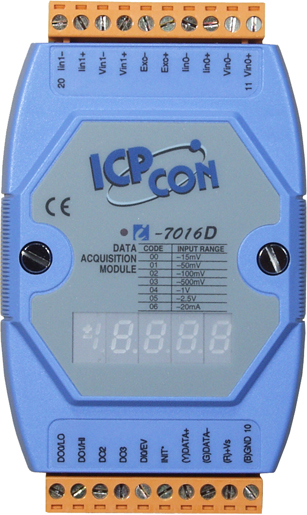

I-7016D is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7016D modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. I-7016D comes with FREE EZ Data Logger Software.
Analog Input |
|
Input Channels |
2 |
Input Type |
+/-15mV, +/-50mV, +/-100mV,+/- 500mV , +/-1V,+/- 2.5V, +/- 20mA |
Resolution |
16-bit |
Sample Rate |
10 Samples/ Second (one-channel mode) |
| 2 Samples/ Second (two-channel mode) | |
Accuracy |
Yes |
| Bandwidth | 5.24Hz |
| Zero Drift | +/-0.5uV/ °C |
| Span Drift | 25ppm/°C |
| Common Mode Rejection | 150dB |
| Normal Mode Rejection | 100dB |
| Overvoltage Protection | 10V (P-P) |
| Input Impedence | 20M Ohms |
| Intra-module Isolation, Field to Logic | 3000 VDC |
Excitation Voltage Output |
|
Output Channels |
1 |
| Output Range | 0 to +10V |
| Max. Output Load | 40mA |
| Accuracy | +/-0.05% of FSR |
| Drift | +/-50ppm/ °C |
| Output Impedence | 12 Ohms |
Isolation |
3000 VDC |
Digital Input |
|
Channels |
1 |
Logic Level 01 |
+ 1V max |
Logic Level 02 |
+ 3.5V to 30V |
Max. Input Frequency |
50Hz |
Min. Pulse Width |
1 ms |
Digital Output |
|
Chanels |
4 |
Output Type |
Sink, Open collector to 30V |
Output Load |
30mA max per channel |
Power Dissipation |
300 mW |
Interface |
|
Interface |
RS-485 |
Format |
N, 8, 1 (details) |
Baud Rate |
1200 ~ 115200 bps |
LED Display |
|
| 1 LED as Power/Communication Indicator | |
4 1/2 Digits (for I-7016D) |
|
Power |
|
Input Voltage Range |
+10 to +30Vdc |
Power Consumption |
2.4W (I-7016) / 3.0W (I-7016D) |
Environmental |
|
Operating Temperature |
-25°C ~ +75°C (-13°F ~ +167°F) |
Storage Temperature |
-40°C ~ +80°C (-40°F ~ +176°F) |
Humidity |
5 ~ 95% RH, non-condensing |
