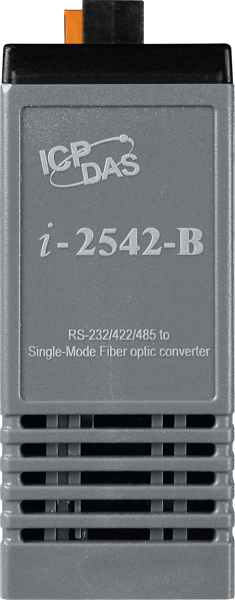

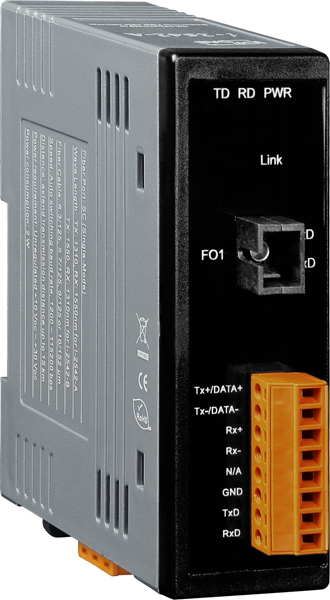

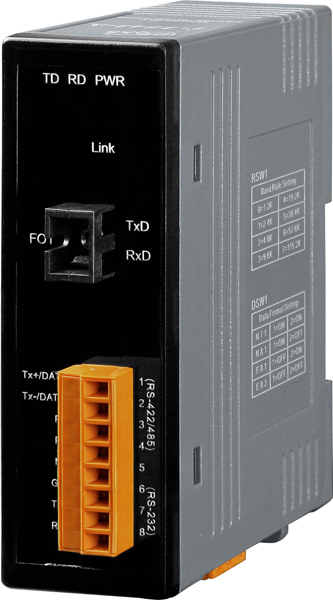

I-2542-B is created to double the existing bandwidth, while effectively reducing the cost of creating a new fiber optic infrastructure. Its design comes from a series of single-Strand fiber Converters supports Wavelength Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and receive over one standard, single mode and fiber optic line. The module is for RS-232/422 point-to-point connections and RS-485 multi-drop applications which require a signal to be transmitted for distances of up to 15km, making it a perfect solution in applications where transmission must be protected from electrical exposure, power surges, lightning strikes or chemical corrosion.
Interface
Fiber Interface
Fiber Port
Single-Mode; SC connector
Wavelength
TX: 1310, RX: 1550 nm for I-2542-A/I-2542-A25
TX: 1550, RX: 1310 nm for I-2542-B/I-2542-B25
Fiber Cable
8.3/125, 8.7/125, 9/125 or 10/125 μm
Distance
15 km for I-2542-A/I-2542-B
25 km for
I-2542-A25/I-2542-B25
(9/125 μm recommended)
Serial Interface
RS-232 (The RS-232, RS-422 and RS-485 cannot be used simultaneously)
TxD, RxD, GND
RS-422 (The RS-232, RS-422 and RS-485 cannot be used simultaneously)
TxD+, TxD-, RxD+, RxD-
RS-485 (The RS-232, RS-422 and RS-485 cannot be used simultaneously)
Data+, Data-
RS-422/485 Transmission Distance
Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps (Belden 9841 2P twisted-pair cable, if different cables are used, the transmission distance may change)
Self-Tuner Asic Inside

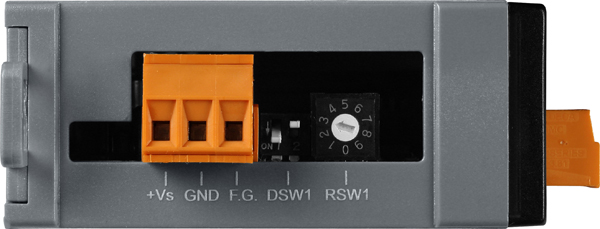

Fixed baud rate setting via rotary switch
Speed
1200 ~ 115200 bps
ESD Protection
Yes

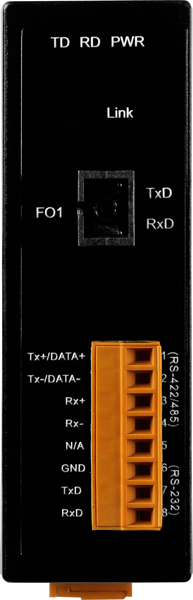

RS-232/422/485 Connector
Removable 8-Pin Terminal Block
LED Indicators
Power
Yes
Power
Input Voltage Range
+10 VDC ~ +30 VDC (Non-isolated)
Power Consumption
2 W
Mechanical
Casing
Plastic
Flammability
Fire-Retardant Materials (UL94-V0 Level)
Dimensions (W x L x H)
33 mm x 89 mm x 107 mm
Installation
DIN-Rail Mounting
Environment
Operating Temperature
-25°C ~ +75°C
Storage Temperature
-30°C ~ +75°C
Humidity
10 ~ 90% RH, non-condensing
