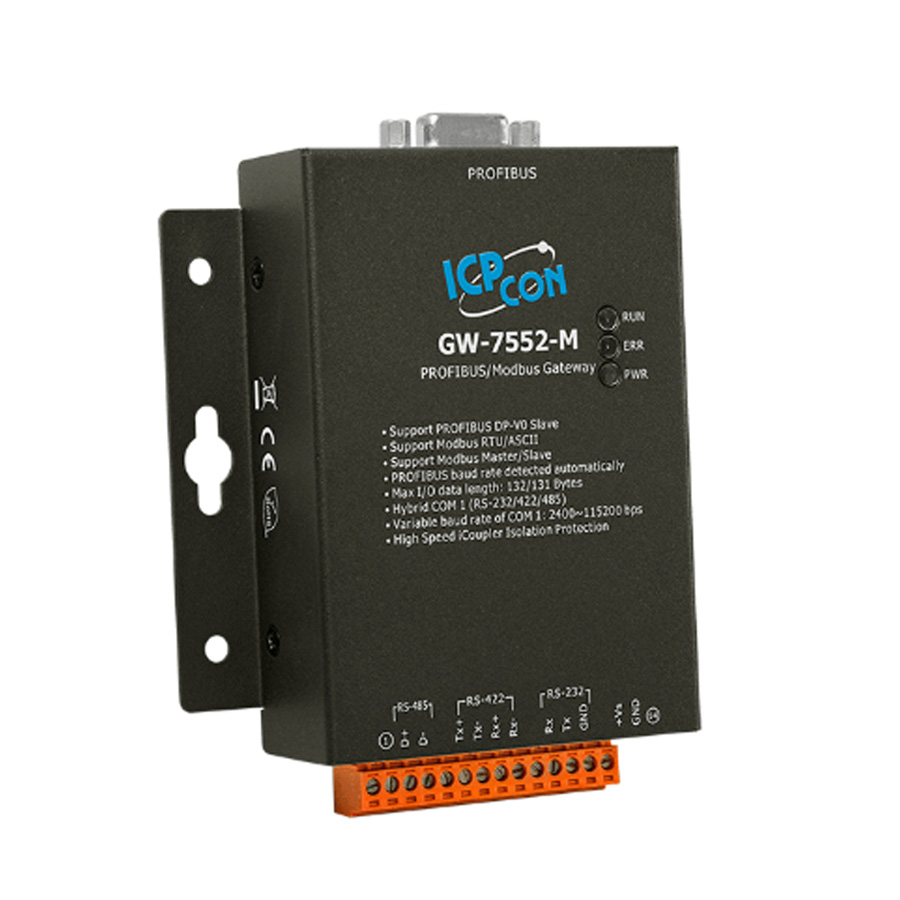

GW-7552-M is a PROFIBUS to Modbus RTU Gateway designed for the slave device of PROFIBUS DP protocol. GW-7552-M allows a PROFIBUS master to access Modbus devices which may be PLC's, programmable controllers, sensors or Modbus RTU Data Acquisition modules like the ICP DAS M-7000 Series modules. GW-7552-M comes with an easy to use setup utility software for configuration.
Protocol & Hierarchy |
DP-V0 Slave |
Supports PROFIBUS Transmission Rate (Kbps) |
9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000 |
Transmission Rate Setting |
detected automatically |
Max Input Data Length |
128 Bytes |
Max Output Data Length |
131 Bytes |
Address Setting |
0~126 set by DIP switch |
Supports Modbus Mode |
Master/Slave |
Supports Modbus Format |
RTU/ASCII |
Hybrid COM 1 |
RS-232/422/485 with “Self Tuner” inside |
Supports COM 1 Baudrate (Kbps) |
2.4, 4.8, 9.6, 19.2, 38.4, 57.6, 115.2 |
Supports COM 1 Data Format |
7/8 data bits, No/Odd/Even parity, 1/2 stop bit |
Indicators |
PWR, ERR, and RUN LEDs |
Network Isolation Protection |
High Speed iCoupler |
DC Isolation Protection |
3000VDC on PROFIBUS side |
The GW-7552 Utility helps users to configure the devices, and has following features:
Only the following Modbus commands are supported by the gateway.
Code |
Name |
Description
|
01 |
Read Coil Status |
Read the ON/OFF status of discrete outputs in the slave |
02 |
Read Input Status |
Read the ON/OFF status of discrete inputs in the slave |
03 |
Read Holding Registers |
Read the binary contents of holding registers in the slave |
04 |
Read Input Registers |
Read the binary contents of input registers in the slave |
05 |
Force Single Coil |
Write a single output to either ON or OFF in the slave |
06 |
Preset Single Register |
Write an integer value into a single register in the slave |
15 |
Force Multi. Coils |
Write each coil in the sequence of coils to either ON or OFF in the slave |
16 |
Preset Multi. Registers |
Write a block of contiguous registers in the slave |
Model |
GW-7552 |
CPU |
80186, 80MHz |
Flash |
512K Bytes |
SRAM |
512K Bytes |
EEPROM |
16K Bytes |
Watch Dog Timer |
CPU Built-in |
COM 1 |
RS-232(3 wires)/RS-422/RS-485 |
Baudrate |
Up to 115.2Kbps |
PROFIBUS Interface |
9-pin D-Sub(Female) |
PROFIBUS Controller |
Siemens SPC3 |
PROFIBUS Transceiver |
ADI ADM2486 iCoupler Isolated Transceiver |
Transmission Rate |
Up to 12Mbps |
Power Requirement |
10V ~ 30V |
Power Consumption |
2.5W |
Operating Temp. |
-25°C~ +75°C |
Storage Temp. |
-30°C~ +85°C |
Humidity |
5% ~ 95% |
Dimensions |
118x72x33 mm |
