GTP-500M

$0.00

2G/3G Multi Function Controller with GPS. GTP-500M is phased out and replaced by GTP-541M.

Product Unavailable

Share On:
Categories:	2G/3G/4G Wireless Solutions \| New Products
Review:	Write your review
Resources:	Quick Start Data Sheet User's Manual

The GTP-500M has officially been phased out and will no longer be available. It has now been replaced by GTP-541M.

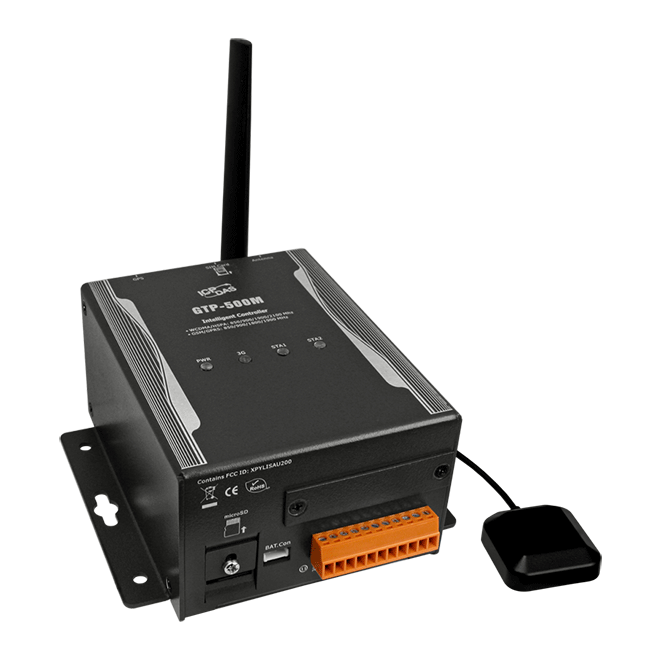

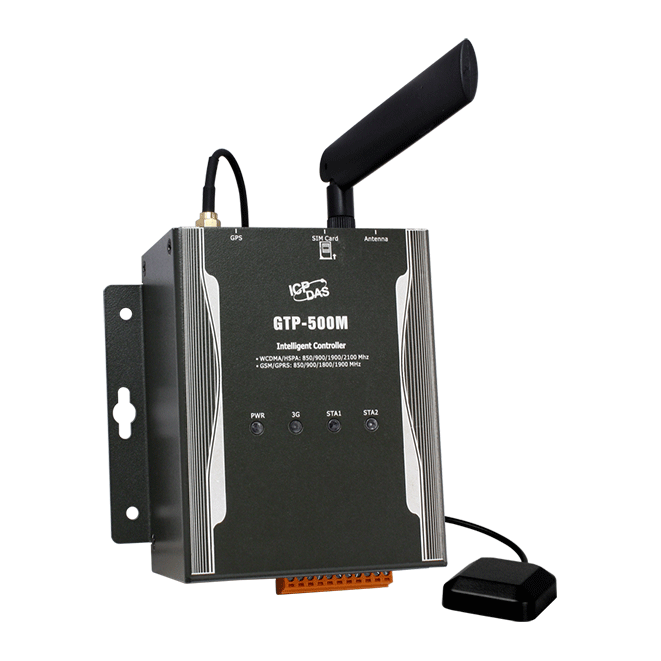

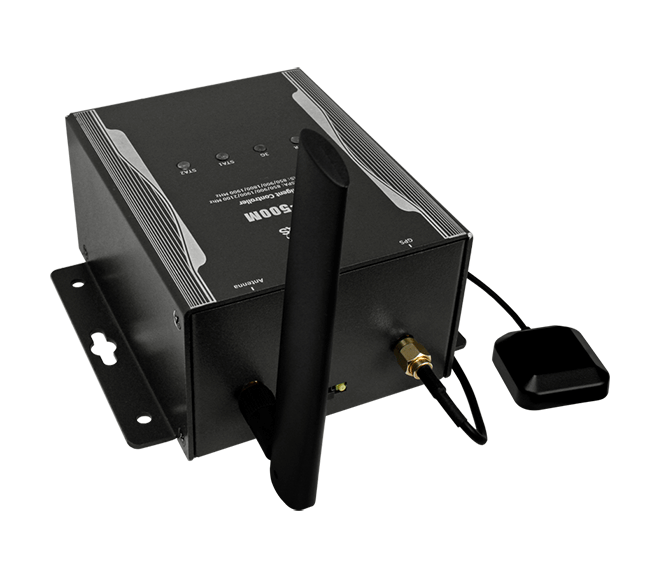

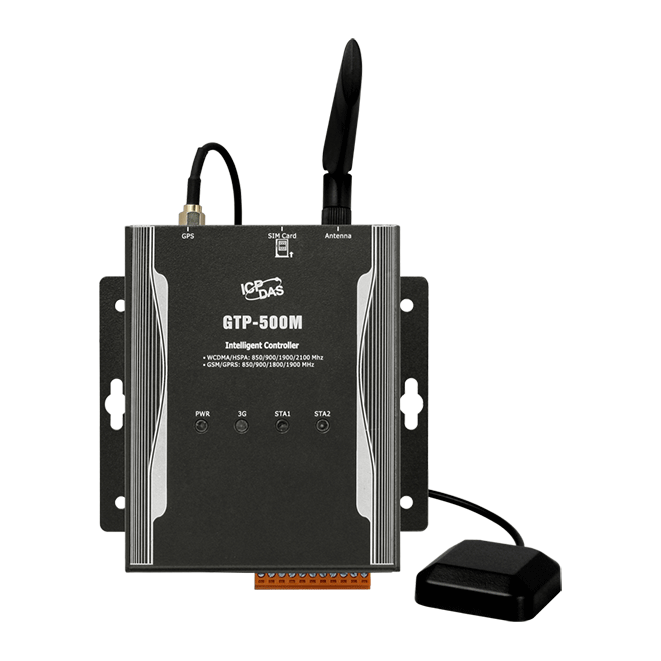

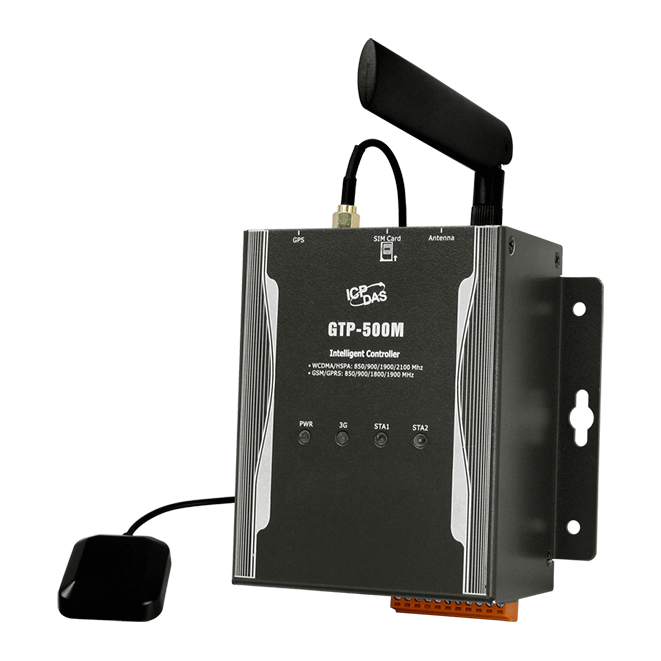

GTP-500M is an intelligent Controller with GPS. Within the high performance 32 bit CPU, GTP-500M is suited for the harsh industrial environment. It features 3G module, 1 RS-232, 1 RS-485, SD and one I/O expansion bus interface. It can be used in M2M application fields to transfer GPS and data of Modbus device via WCDMA/GPRS. GTP-500M has three functions for different requirement, including RTU function, RMV function and SMS function. Therefore, GTP-500M is an ideal solution for environmental monitoring, remote device management and vehicle monitoring system for M2M applications.

Support WCDMA 850/900/1900/2100 MHz frequency.
Support GPRS 850/900/1800/1900 MHz frequency.
Intelligent multiport serial to 2G/3G gateway.
Intelligent 2G/3G Remote Terminal Unit (RTU).
Intelligent 2G/3G SMS/Voice alarm controller(SMS).
1 x RS-232 port and 1 x RS-485 port for Virtual COM. 1 x Utility port for Configuration.
Built-in Watch-dog Function.
Power Reverse Polarity Protection.
Power supply +10 VDC ~ +30 VDC.
Support GPS function.

Applications

Specifications

Software
Service	Virtual COM, RTU, SMS Alarm
CPU Module
CPU	ARM Microprocessor
Watchdog Timer	Yes
LED Indicators
Status	1 x PWR 1 x 3G 1 x STA1 1 x STA2 1 x GPS
2G System
Coding Schemes	CS 1, CS 2,CS 3,CS 4
Data GPRS	GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps
Frequency Band	850/900/1800/1900 MHz
GPRS Multi-slot	GPRS class 12; GPRS station class B
Power Class	Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz)
SMS Format	Sending: UCS2 Receiving: UCS2/7bits
3G System
Data Transmission	HSPA Downlink transfer: Max. 7.2 Mbps; Uplink transfer: Max 5.76 Mbps HSDPA Max. 7.2 Mb/s WCDMA Max. 384 kb/s Download/Upload link
Frequency Band	WCDMA 850/900/1900/2100 MHz
Power Class	Class 3 (250mW @ WCDMA/HSPA)
COM Ports
Ports	1 x RS-232 1 x RS-485 (3000VDC Isolated)
Baud Rate	9600 bps and 115200 bps
Mechanical
Casing	Metal
Dimensions (mm)	117 x 137 x 58 (W x L x H)
Environmental
Operating Temperature	-25 ~ +75°C
Storage Temperature	-30 ~ +80°C
Humidity	5 ~ 95% RH, Non-condensing
