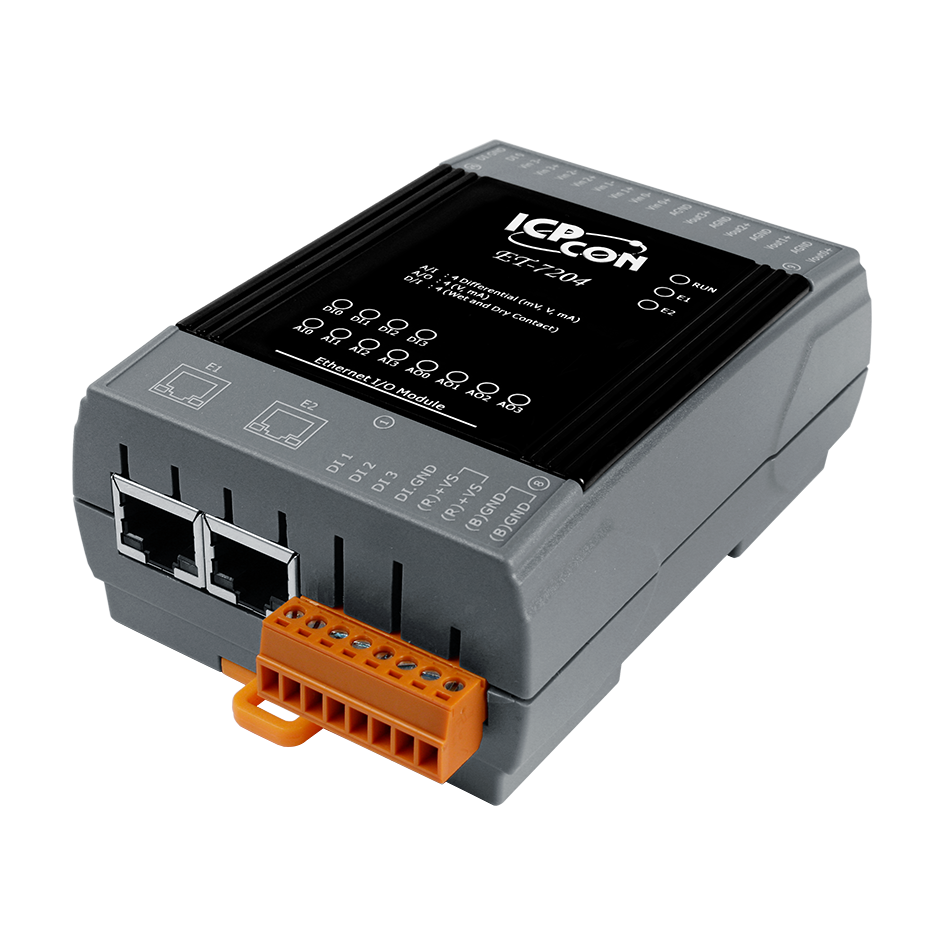

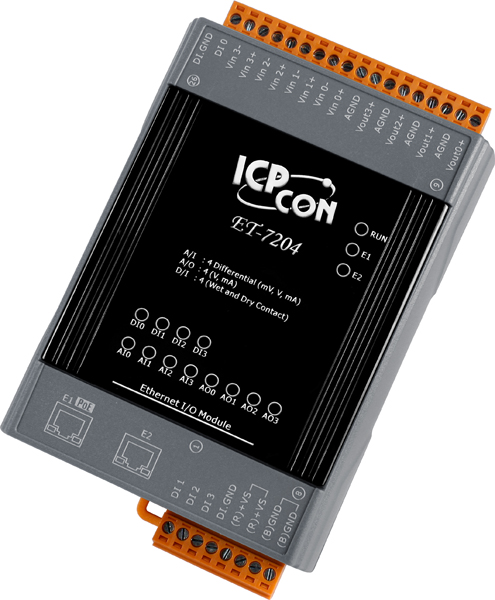

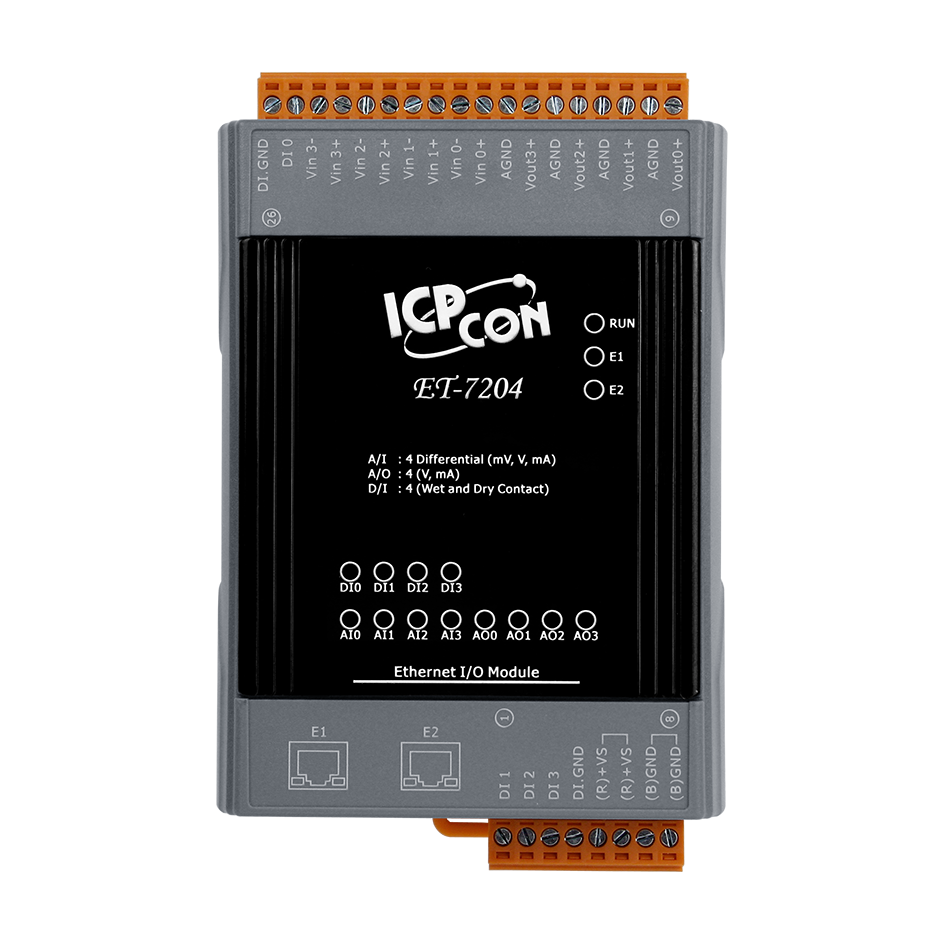

The ET-7204is a multi-function module with 4-channel analog inputs, 4-channel analog outputs, 4-channel digital inputs. It provides various programmable analog inputs (+/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA), and analog outputs (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input/output can be programmed to accept current or voltage as input/output depending upon the position of corresponding jumper. |
|
| Software | |
| Built-In Web Server | Yes |
| Web HMI | Yes |
| I/O Pair Connection | Yes |
| Communication | |
| Ethernet Port | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | No |
| Protocol | Modbus/TCP, Modbus/UDP |
| Security | ID, Password and IP Filter |
| Dual Watchdog | Yes, Module (0.8 second), Communication Programmable over DCON |
| LED Indicators | |
| L1 (System Running) | Yes |
| L2 (Ethernet Link/Act) | Yes |
| DI/DO Status | Yes |
| PoE Power | - |
| 2 Way Isolation | |
| Ethernet | 1500 VDC |
| I/O | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | 4 kV Contact for Each Terminal and 8 kV Air for Random Point |
| EFT (IEC 61000-4-4) | +/-4 kV for Power |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| Power Requirements | |
| Reverse Polarity Protection | Yes |
| Powered from Terminal Block | Yes, 12 ~ 48 VDC |
| Powered from PoE | - |
| Consumption | 4.9 W (Max.) |
| Mechanical | |
| Dimensions (W x L x H) | 120 mm x 76 mm x 38 mm |
| Installation | DIN-Rail or Wall mounting |
| Environmental | |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Storage Temperature | -30 C ~ +80 C (-22°F +176°F) |
| Humidity | 10 ~ 90% RH, non-condensing |
| Analog Input | |||
| Channels | 4 (Differential) | ||
| Sensor Type | +/-500 mV, +/-1 V, +/-5 V, +/-10 V +0 mA ~ +20 mA, +/-20 mA, 4 ~ 20 mA (Jumper Selectable) | ||
| Individual Channel Configuration | Yes | ||
| Resolution | 16-bit | ||
| Sampling Rate | Normal Mode | 10 Samples/Second (Total) | |
| Fast Mode | 50 Samples/Second (Total) | ||
| Accuracy | Normal Mode | +/-0.1% of FSR or better | |
| Fast Mode | +/-0.5% or better | ||
| Zero Drift | +/-20 V/°C | ||
| Span Drift | +/-25 ppm/°C | ||
| Over Voltage Protection | 240 Vrms | ||
| Over Current Protection | 50 mA max. at 110 VDC/VAC max. | ||
| Common Mode Rejection | ±200 VDC | ||
| Overcurrent Protection | Yes, 50 mA at 110 VDC | ||
| Normal Mode Rejection | 100 dBV | ||
| Temperature Output Consistency | Yes | ||
| Open Wire Detection 4 ~ 20mA | Yes | ||
| Input Impedence | Voltage | 2 | |
| Current | 125 | ||
| Virtual Channel to Channel Isolation | +/-400 VDC | ||
| Analog Output | |||
| Channels | 4 | ||
| Type | +0 VDC ~ +5 VDC, +/-5 VDC, +0 VDC ~ +10 VDC, +/-10 VDC,+0 mA ~ +20 mA, +4 mA ~ +20 mA (Jumper Selectable) | ||
| Individual Channel Configuration | Yes | ||
| Resolution | 12-bit | ||
| Accuracy | +/-0.1% of FSR | ||
| Voltage Output Capability | 20 mA @ 10 V | ||
| Open Wire Detection | 400 | ||
| Open Wire Detection | Yes, for 4 ~ 20 mA only | ||
| Power-on Value | Yes, Programmable | ||
| Safe Value | Yes, Programmable | ||
| Digital Input/Counter | |||
| Channels | 4 | ||
| Dry Contact (Source) | On Voltage Level | Close to GND | |
| Off Voltage Level | Open | ||
| Effective Distance for Dry Contact | 500 M Max. | ||
| Wet Contact (Sink) | On Voltage Level | +1 VDC Max. | |
| Off Voltage level | +3.5 VDC ~ +30 VD | ||
| Input Impedence | - | ||
| Counters | Max. Count | 4,294,967,285 (32 bits) | |
| Max. Input Frequency | 100 Hz | ||
| Min. Pulse Width | 5 ms | ||
| Overvoltage Protection | 30 VDC | ||
