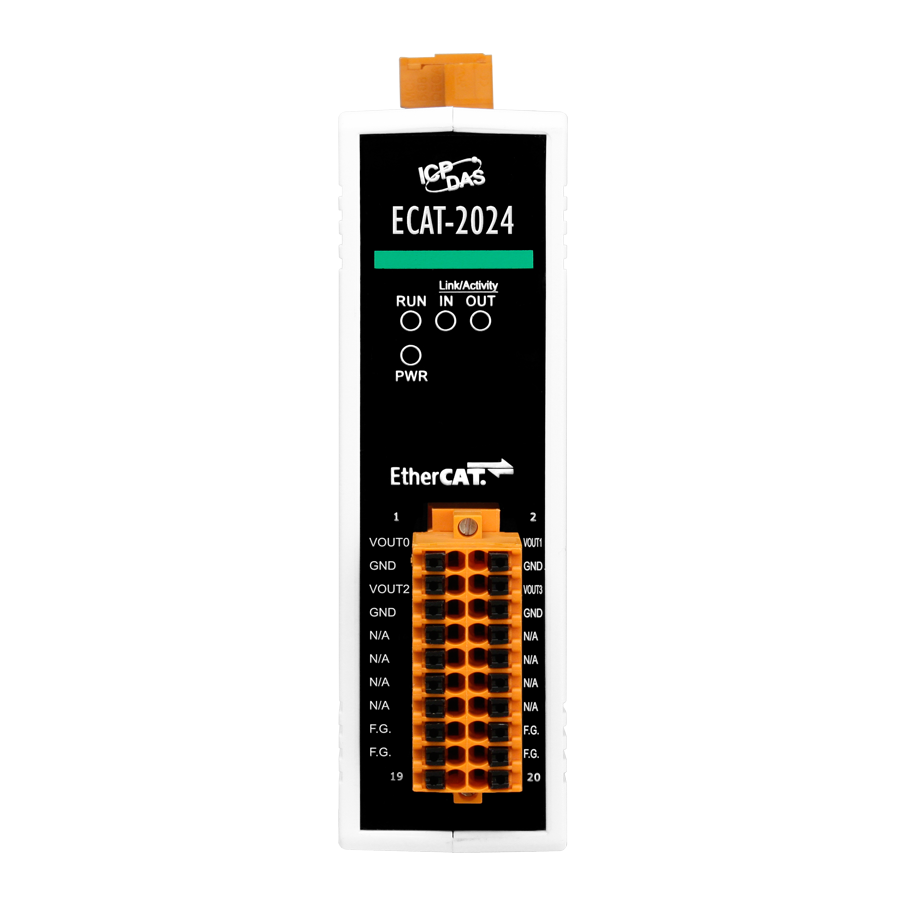

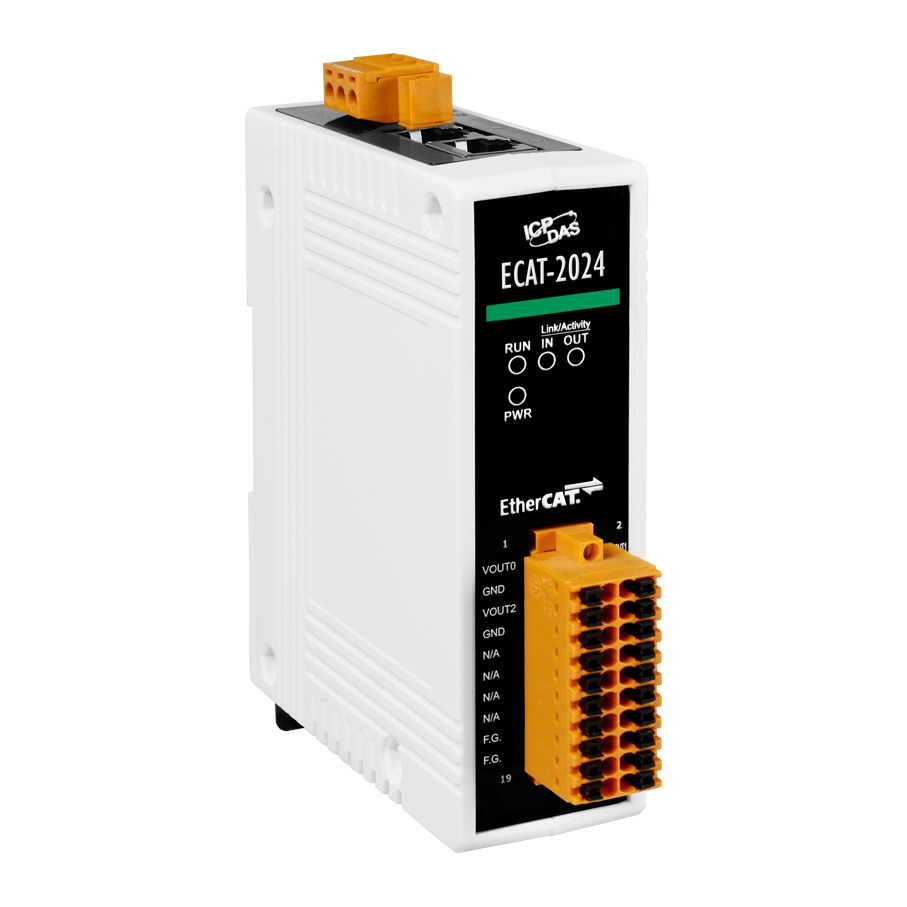

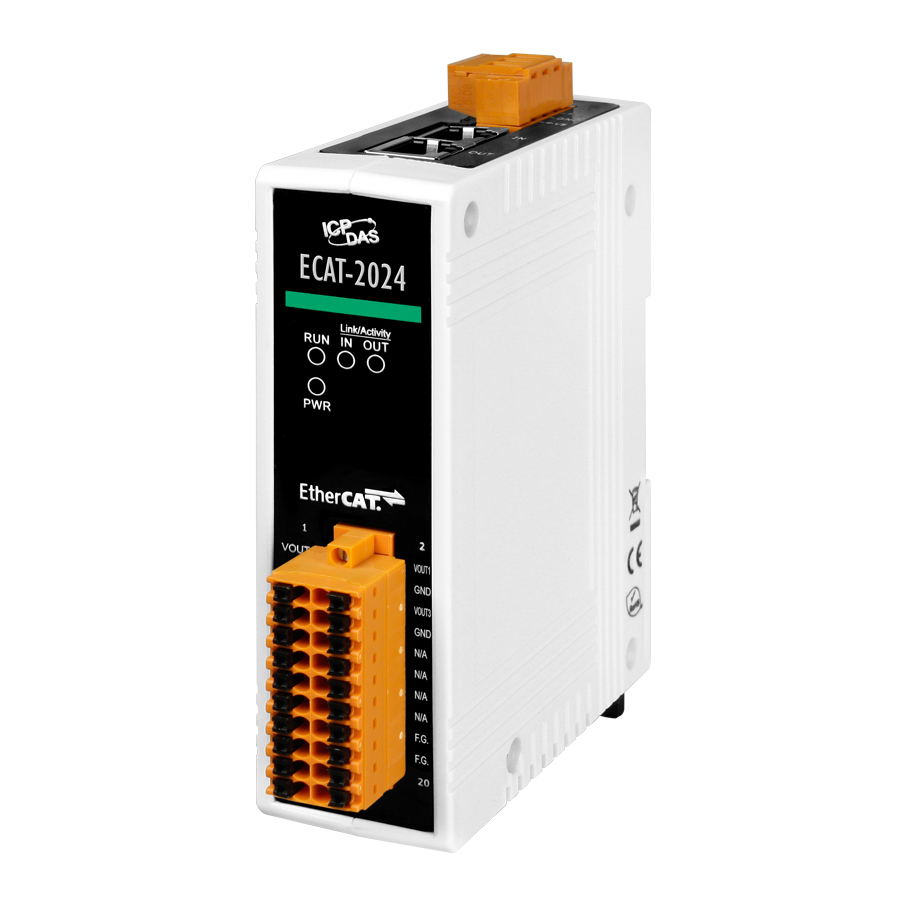

ICP DAS USA’s ECAT-2024 is equipped with the EtherCAT protocol. When installed by daisy chain connection, this permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2024 against the harmful interference and environment.
Analog Output
Channels
4
Range
±5 V, ±10 V, 0~5V, 0~10V
Resolution
12-bit
Accuracy
+/-0.1% of FSR
Zero Drift
+/-30 µV/°C
Span Drift
+/- 25 ppm/°C
Communication Interface
Connector
2 x RJ-45
Protocol
EtherCAT
Distance between Stations
Max. 100 m (100BASE-TX)
Data Transfer Medium
Ethernet/EtherCAT Cable (Min. CAT 5), Shielded
Power
Input Voltage Range
10V ~ 30VDC
Power Consumption
Max. 4W
Mechanism
Installation
DIN-Rail
Dimensions
110mm x 90mm x 33mm (H x W x D, without connectors)
Case Material
UL 94V-0 housing
Environment
Operating Temperature
-25°C ~ 75°C
Storage Temperature
-30°C ~ 80°C
Relative Humidity
10 ~ 90%, No Condensation
ESD (IEC 61000-4-2)
4 KV Contact for Each Channel
EFT (IEC 61000-4-4)
Signal: 1 KV Class A; Power: 1 KV Class A
Surge (IEC 61000-4-5)
1 KV Class A
